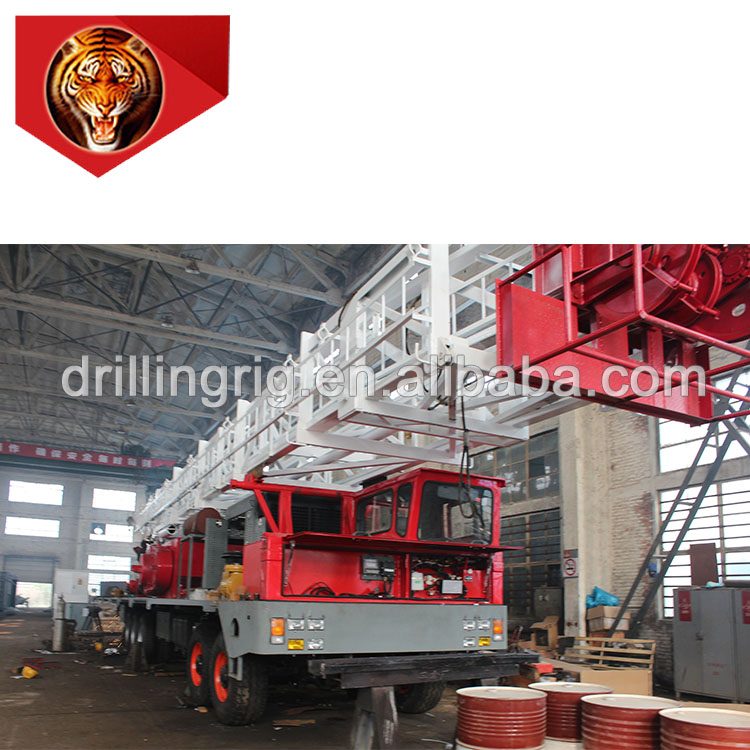

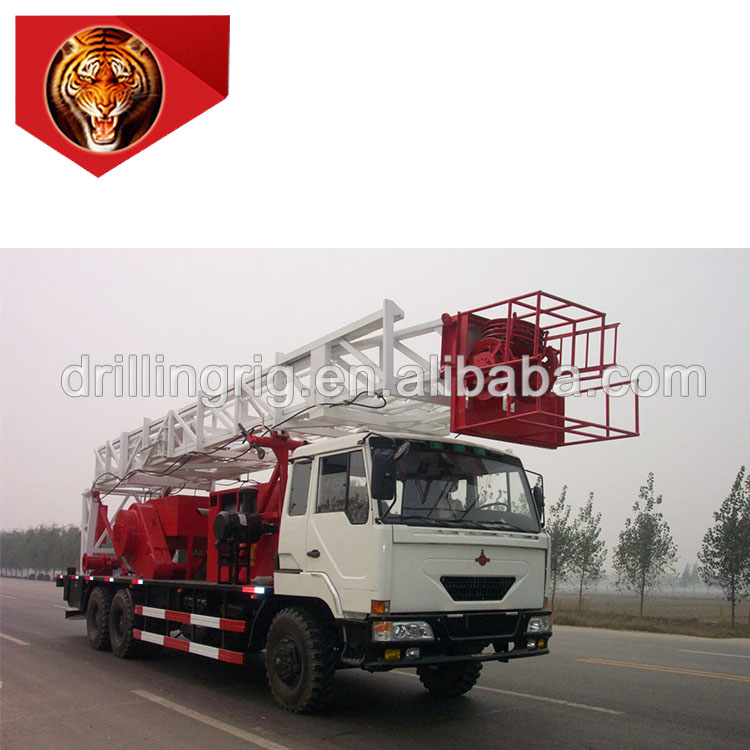

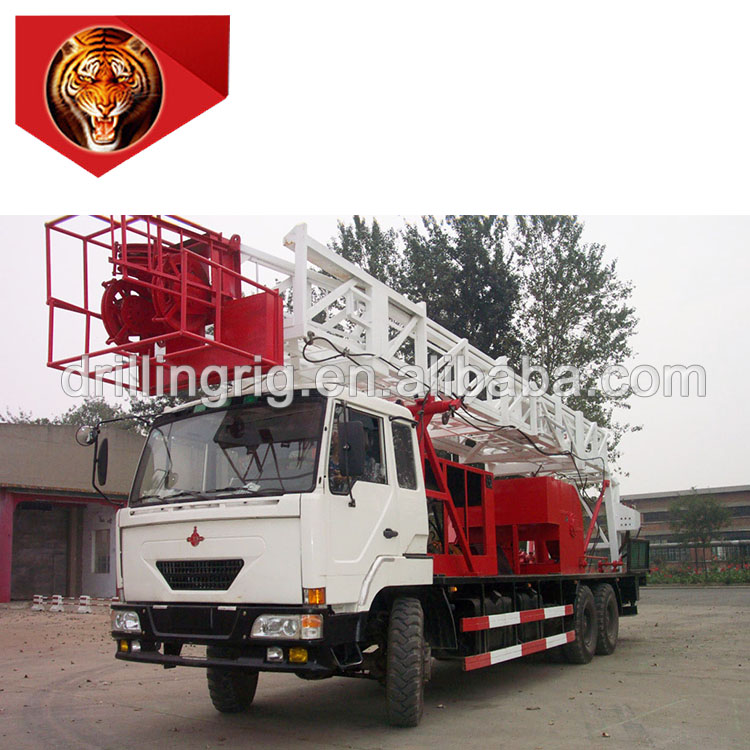

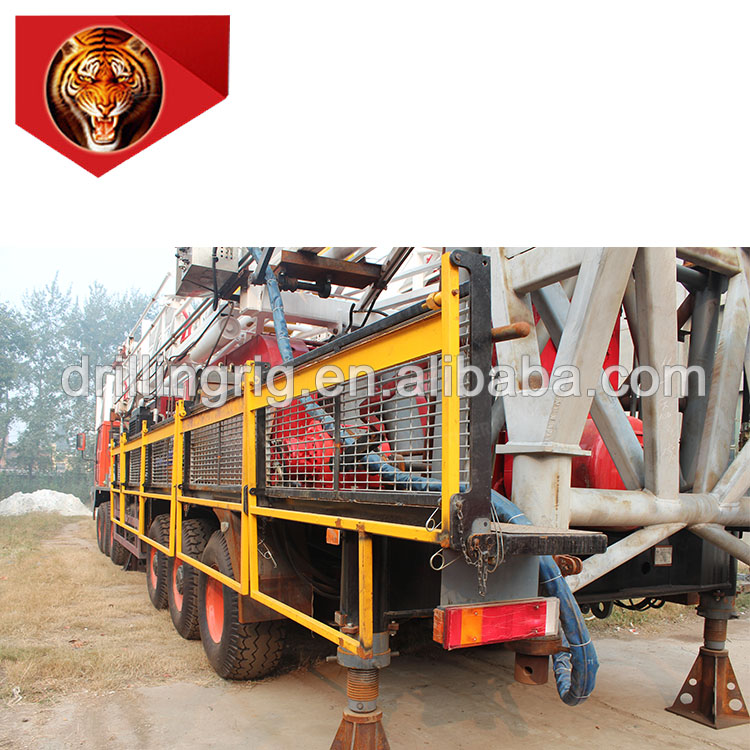

ZJ10 900CZ Drilling Rig
Product information
ZJ series of truck-mounted drilling rig have the following advantages:
1.With an optimum structure and high-level integration, the whole rig requires a small working space. 2.The heavy-duty self-propelled chassis are available in various drive ways 8×6, 10×8, 12×8, 14×8, 14×12, with hydraulic steering system which ensures good drilling accessibility, cruise capability and lateral stability, and also the working reliability of every component. 3.The matching between the engine and the transmission box ensures high driving efficiency and high working reliability. The drawworks and rotary tables can be driven by motors. 4.The drilling rig main brake can be band brake or hydraulic disc brake, and the auxiliary brake can be water cooling thrust plate pneumatic brake or water brake. 5.The rotary table transmission box provides forward-reverse shift, which is suitable for DP make up and break out operations, and is equipped with a reverse torque release device that ensures the DP deformation force releases safely. 6. The mast, which is front-open and double-sectioned with an inclination angle or with an erective double-section, can be raised up or laid down and telescoped hydraulically. 7.The drill floor is twin-body telescopic type or parallelogram structure, which is convenient for hoisting and transportation. The dimension and height of the drill floor can be designed based on customers’ requirements. 8. The configurations of the solid control system, well control system, high-pressure manifold system, generator house, engine pump house, doghouse and other auxiliary equipment can meet the different requirements of the end-users.
Specifications
Model
ZJ10/900CZ
Drilling Depth (ft) (41/2″DP)
3300
Workover Depth (ft)
(31/2″DP)
8000
Max Hook Load (lbf)
200000
Hook speed (ft/s)
0.65～4.59
Mast height (ft)
96/102

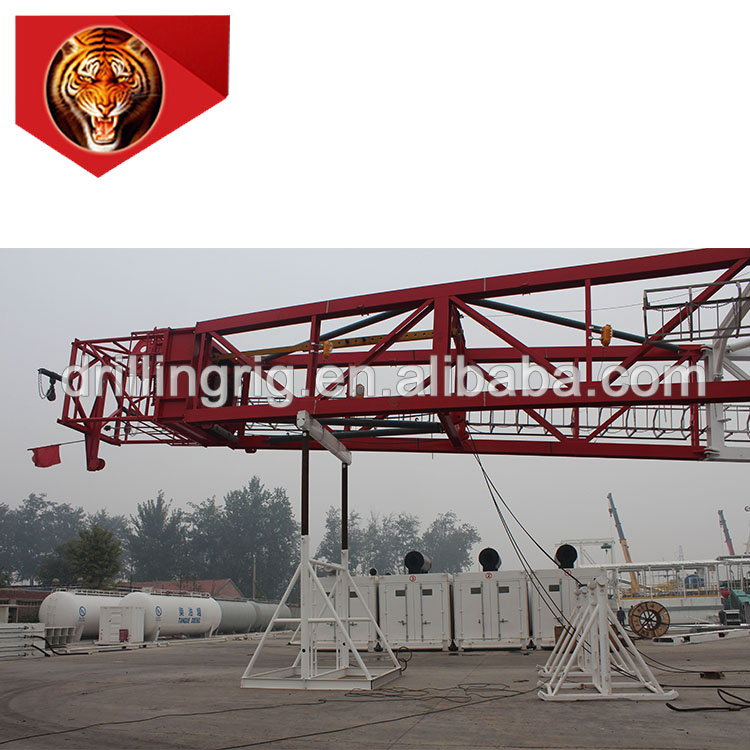

Mast type
Mast
Engine power
(hp)
350
Hydraulic transmission box
4700
Drive ways
Hydraulic + mechanical
Traveling system
4×3
Drilling line diameter (in)
1”
Hook block
YG90
Swivel
SL110
Rotary table
ZP175
Chassis
XD40/8×6
Approaching /Departure angle
22°/18°
Min. ground clearance (in)
12
Max. gradient ability
30%
Min. turning diameter (ft)
92
Overall dimension (ft)
55×9×14
Main unit mass (lbs)
93000
Mass of accessories (lbs)
～33000
