Tigerrig DS40 DS50 DS70 DS90 Eddy Current Brake

< >

Features
Specification

Tigerrig DS40 DS50 DS70 DS90 Eddy Current Brake

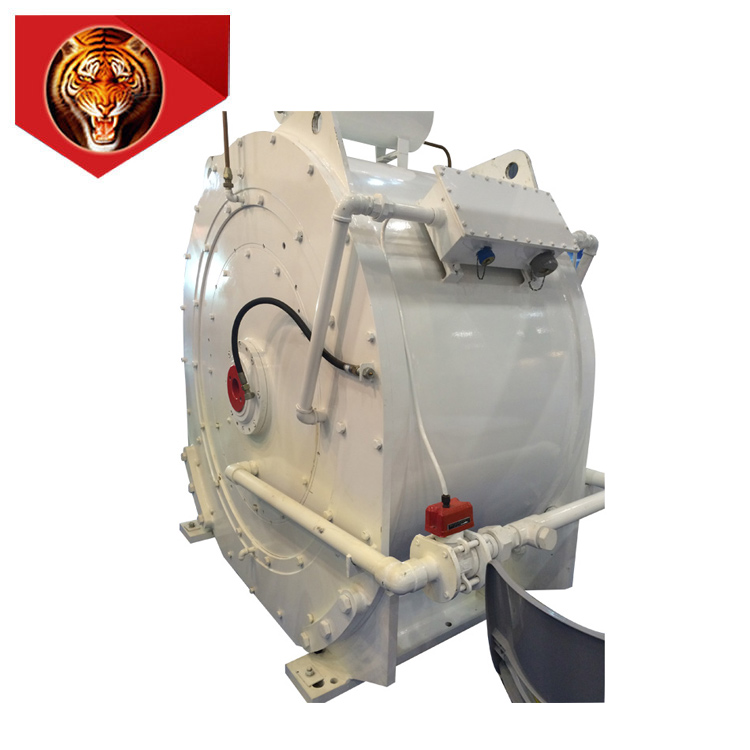

Tigerrig Eddy Current Brake (1).jpg

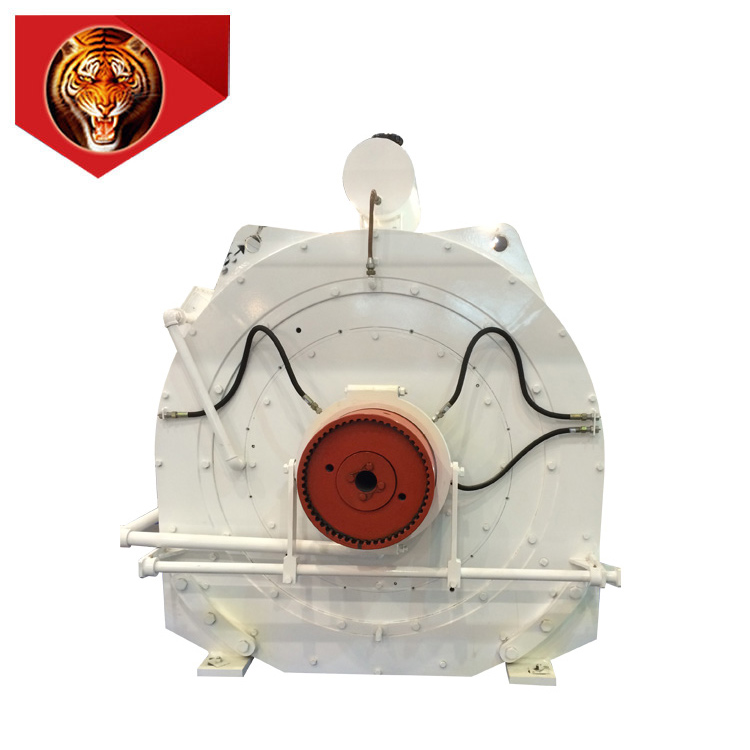

Tigerrig Eddy Current Brake (2).jpg

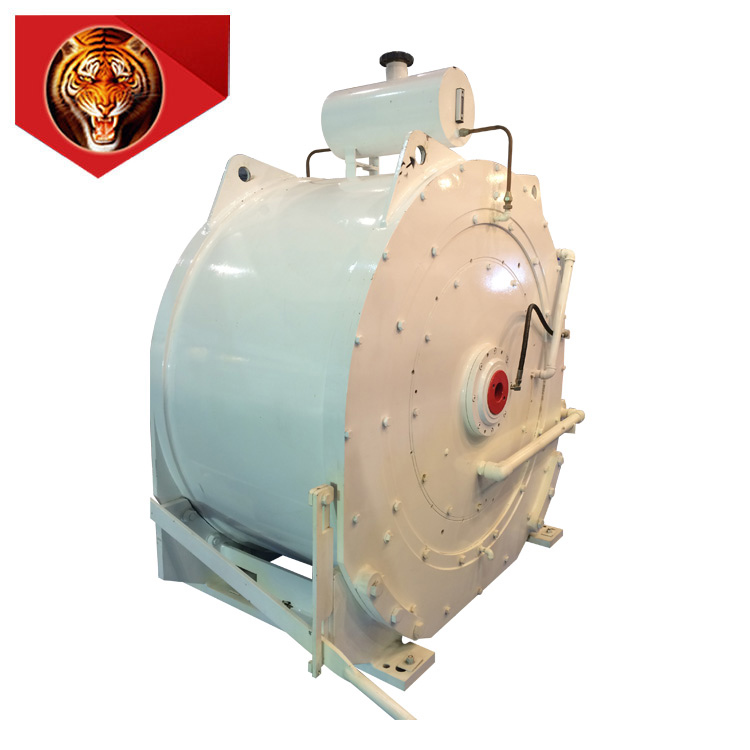

Tigerrig Eddy Current Brake (3).jpg

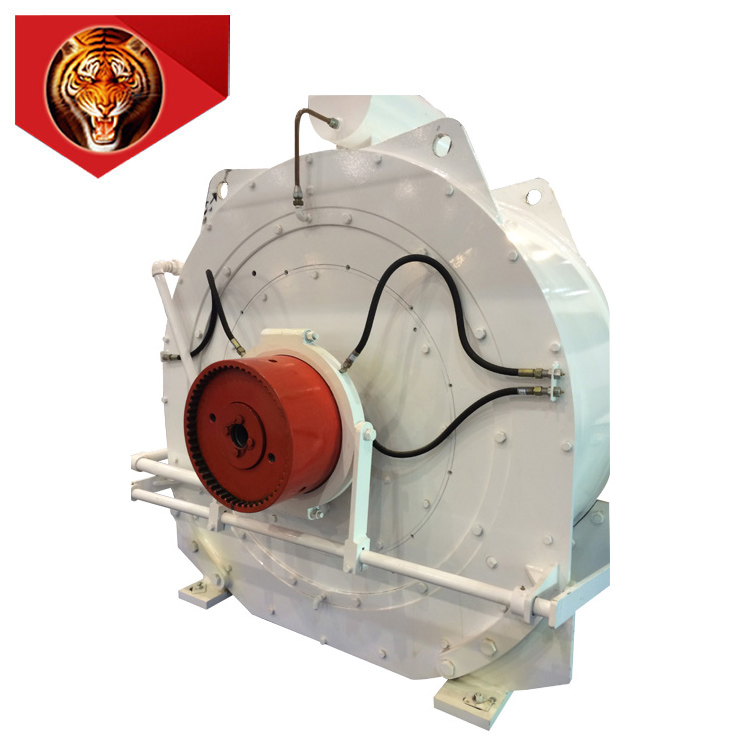

Tigerrig Eddy Current Brake (4).jpg



tigerrig drilling rig parts (2).jpg

Specifications

Model		DS40	DS50	DS70	DS90
Rated stop torque	kNm	44	60.76	107.8	110
Applicable drill depth(O114mm drill Pipe)	m	2500-4000	3500-5000	4500-7000	6000-9000
Max. exciting power	KW	9	12	23.5	25
Exciting coil (H Class)		4	4	4	4
Amount of cooling water	L/min (gpm)	190(50)	285(75)	560(148)	600(160)
Max. temperature of inlet water	°C	42	42	42	42
Max. temperature of outlet water	°C	72	72	72	72
Weight	kg	5830	7285	12300	1400
