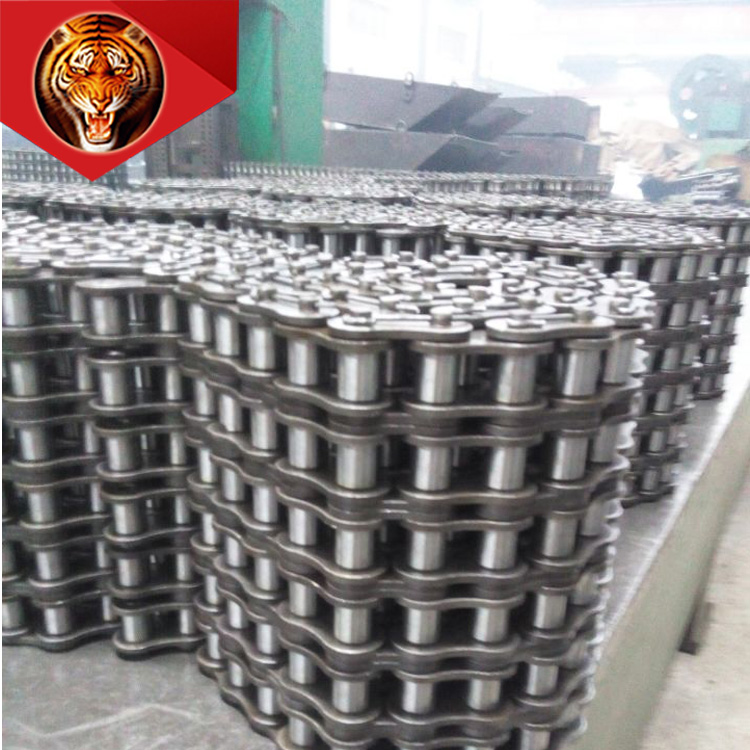

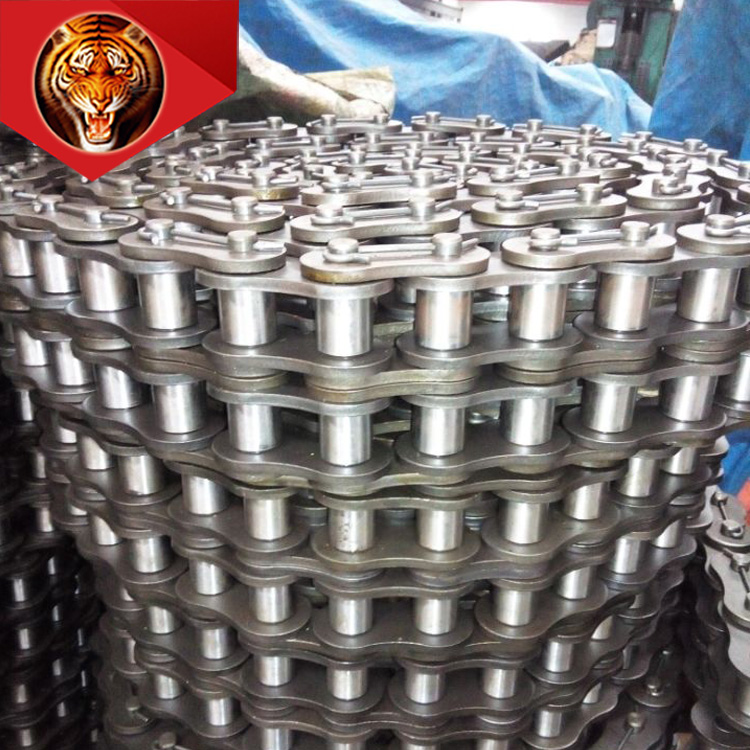

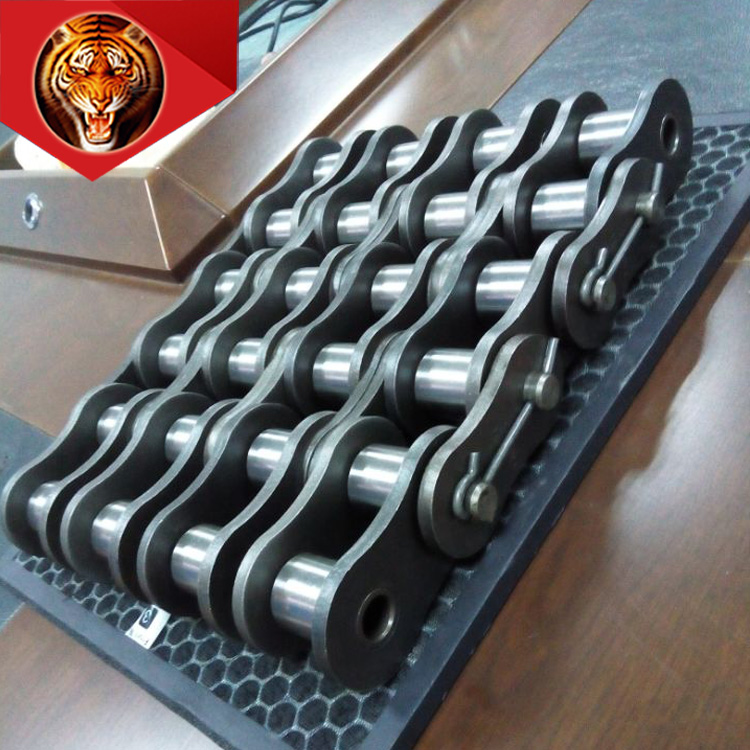

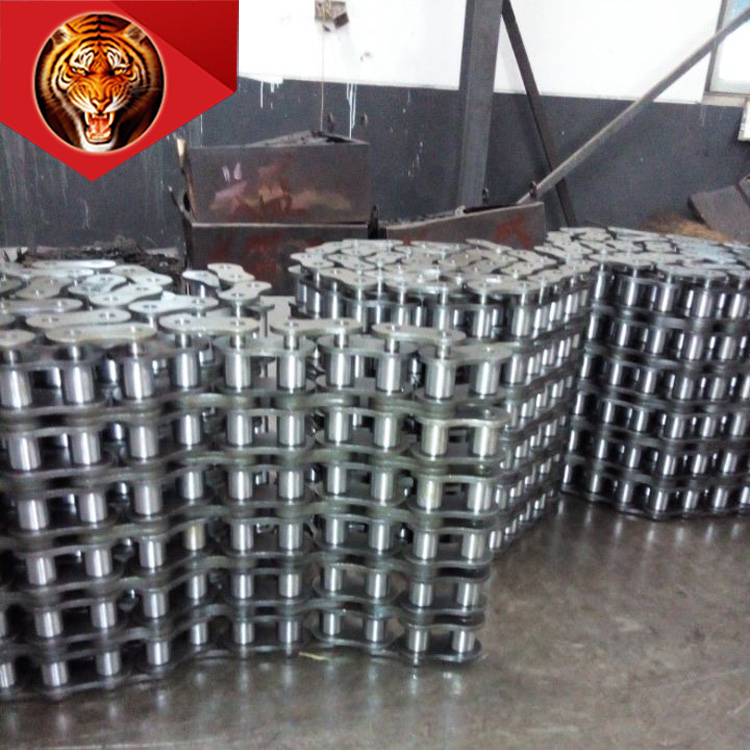

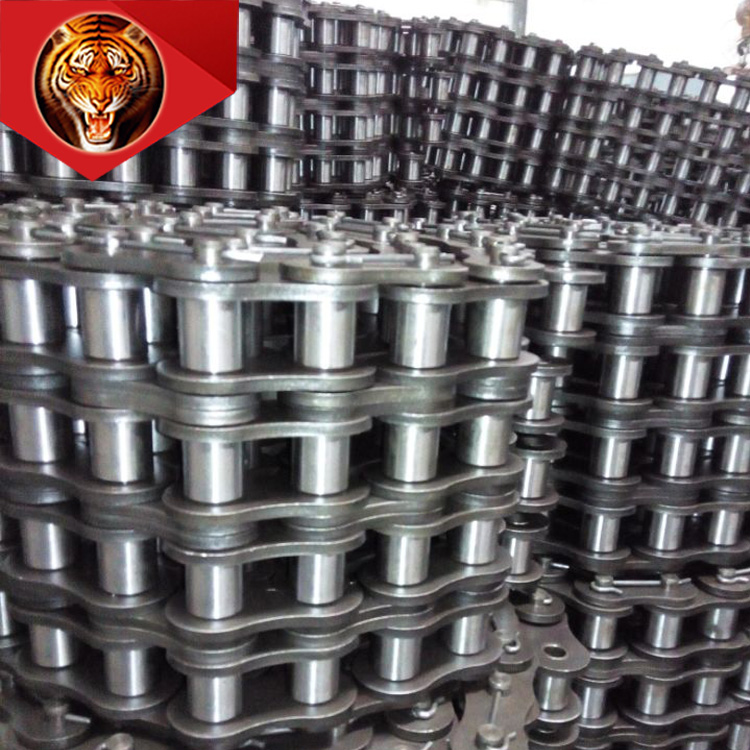

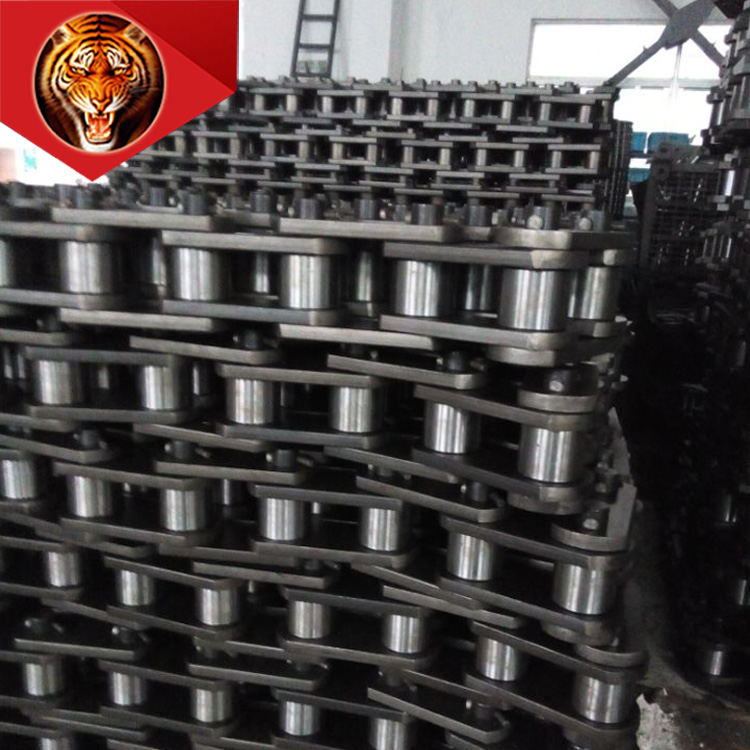

Tigerrig Transmission Chain

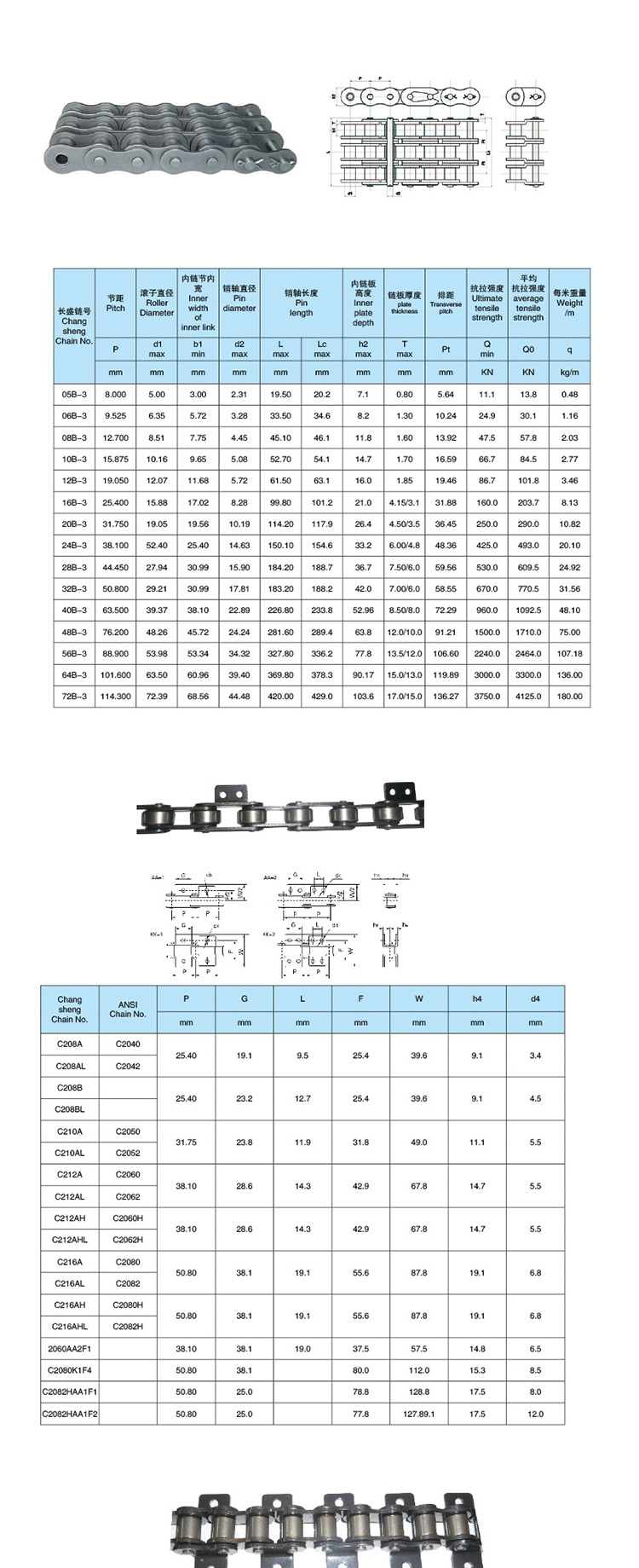

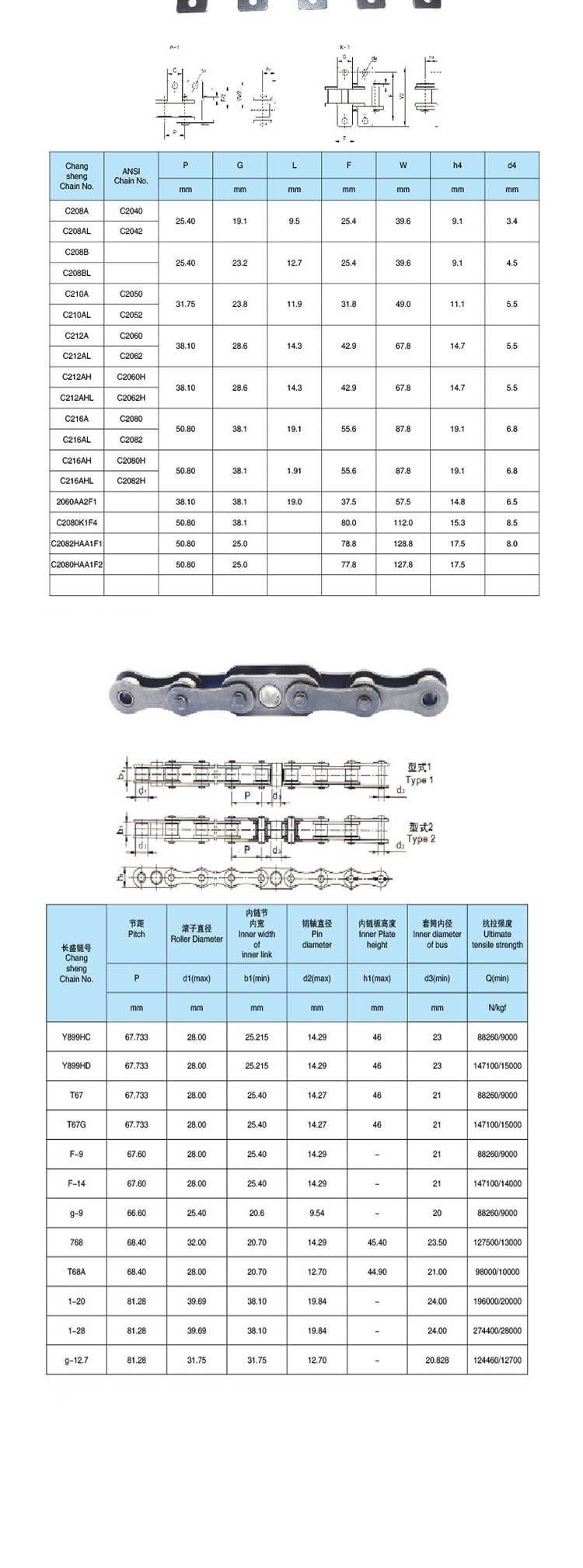

Specifications
ANSI Chain Number
ISO/DIN Chain Number
Name
Pitch
Weight of each section
The weight per meter
Section one meter number
Tensile load(KN)
80S-1
16A
1
25.4
0.075
2.953
39.37
55.6
80S-2
0.14
5.512
111.2
80S-3
0.2087
8.217
166.8
80S-4
0.276
10.866
222.4
80S-5
0.348
13.701
278
80S-6
0.413
16.260
333
100S-1
20A
1 1/4"
31.75
0.141
4.441
31.50
86.74
100S-2
0.279
8.787
173.48
100S-3
0.4163
13.112
260.22
100S-4
0.5537
17.439
364.96
100S-5
0.693
21.827
433.7
100S-6
0.8285
26.094
520.44
120S-1
24A
1 1/2"
38.1
0.233
6.116
26.25
125.1
120S-2
0.46
12.074
250.2
120S-3
0.687
18.032
375.3
120S-4
0.914
23.990
500.4
120S-5
1.141
29.948
625.5
120S-6
1.368
35.906
750.6
120S-8
1.823
47.848
1000.8
140S-1
28A
1 3/4"
44.45
0.353
7.941
22.50
170.27
140S-2
0.697
15.680
340.54
140S-3
1.041
23.419
510.81
140S-4
1.386
31.181
681.08
140S-5
1.729
38.897
831.35
140S-6
2.074
46.659
1021.62
140S-8
2.763
62.159
1362.16
160S-1
32A
2"
50.8
0.532
10.472
19.69
160S-2
1.04
20.472
444.8
160S-3
1.572
30.945
667.2
160S-4
2.092
41.181
889.6
160S-6
3.116
61.338
1112
200S-1
40A
2 1/2"
63.5
1.103
17.370
347.5
200S-2
2.178
34.299
695
200S-3
3.254
51.244
1042.5
Pumping unit straight roller chain
S88.9
88.9
2.22
25
11.25
516
S103
103.45
3.4
32.7
9.67
700
S127
127
7.57
59.6
7.87
934
S127G
8.1
63.8
1179
Note:
every set ：S88.9-1*117L
S103-1*123L Add 2 sprockets (upper sprocket and drive sprocket) 5733+4600=10333 YUAN/set
S127-1*123L Add 2 sprockets (upper sprocket and drive sprocket) 9348+7000= 16,348 yuan/set
S127G-1*123L Add 2 sprockets (upper sprocket and driving sprocket) 14391+12000=26391 yuan/set
Notes:
1. Normal use, guaranteed for one year, within one year for non-human damage or improper installation, repair and replacement.
2. Shipping is free for goods weighing more than 1 ton, the seller shall bear half of the freight between 500Kg and 1 ton, and the freight less than 500Kg shall be paid at destination.
