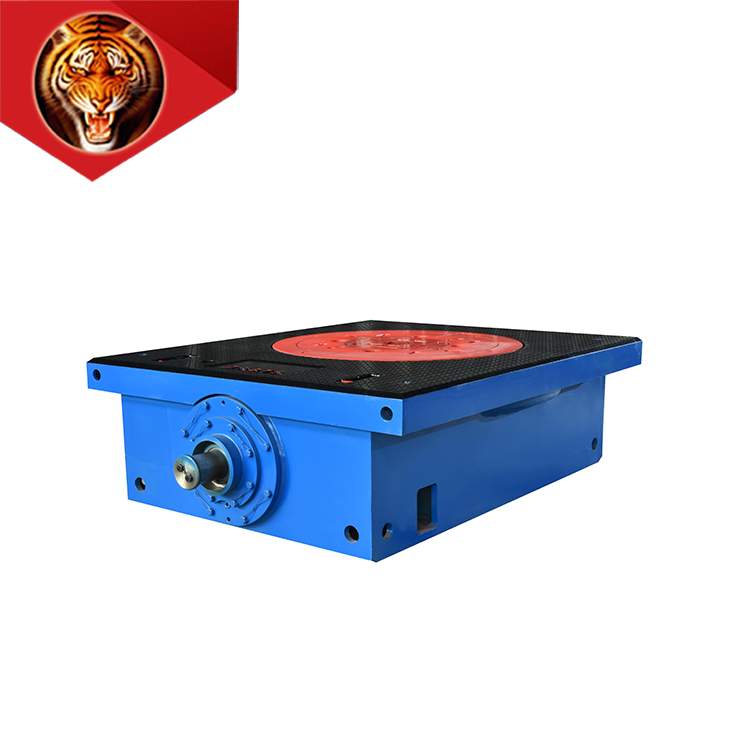

Tigerrig ZP375 Rotary Table

< >

Features
Specification

Tigerrig ZP375 Rotary Table

Product information

Features：

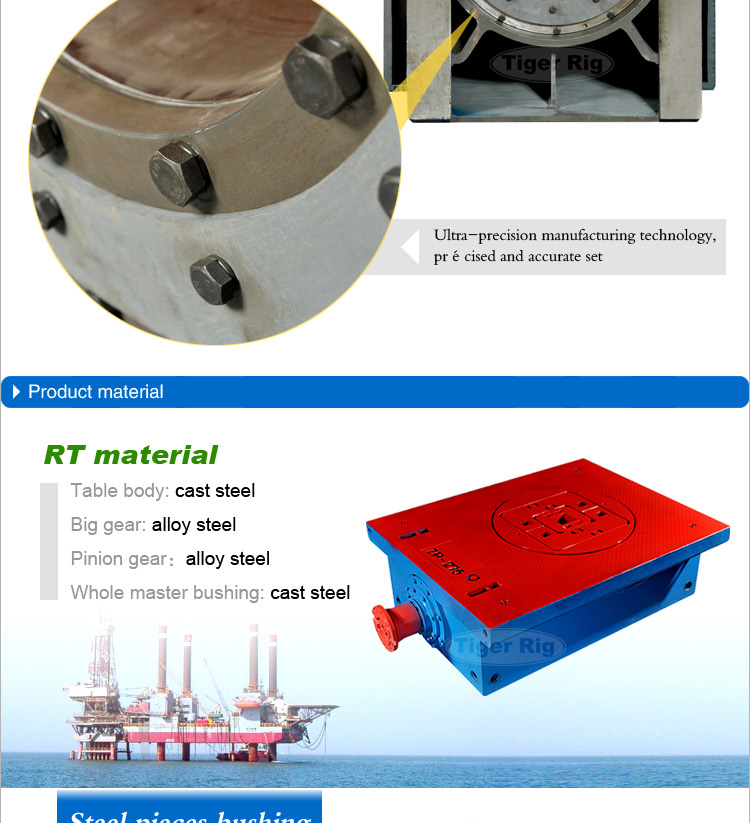

Gear and pinion are made of alloy steel

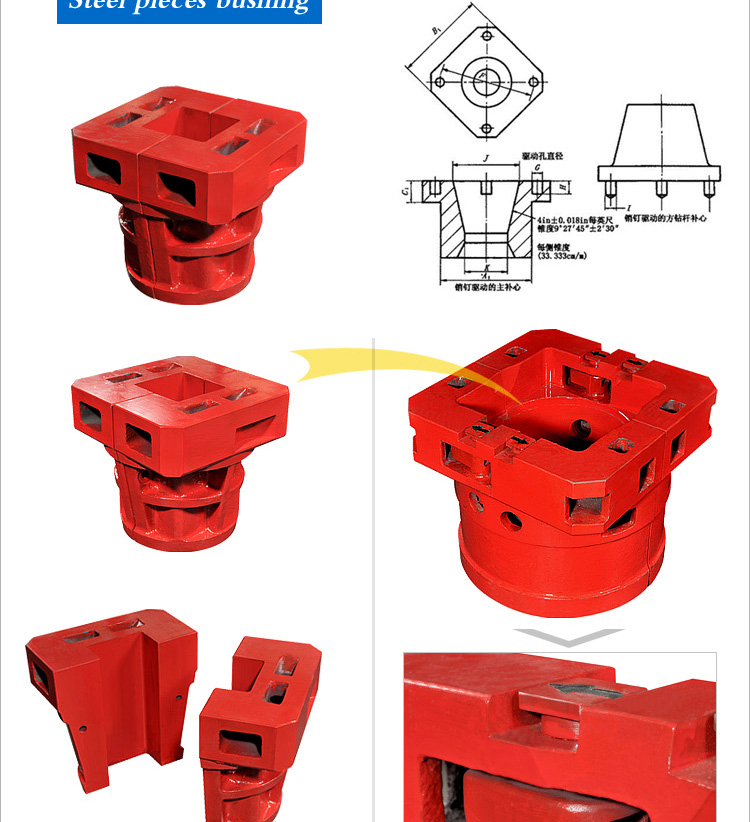

Split main bushing is steel cast. Kelly drive and slip drive are available for choose.

Slip drive may locate in roller bushing of API standard Kelly or hexagonal Kelly, either long or short slip is usable.

Match with API standard casing bushing and special lifting tool

Efficient lubrication and reliable sealing.

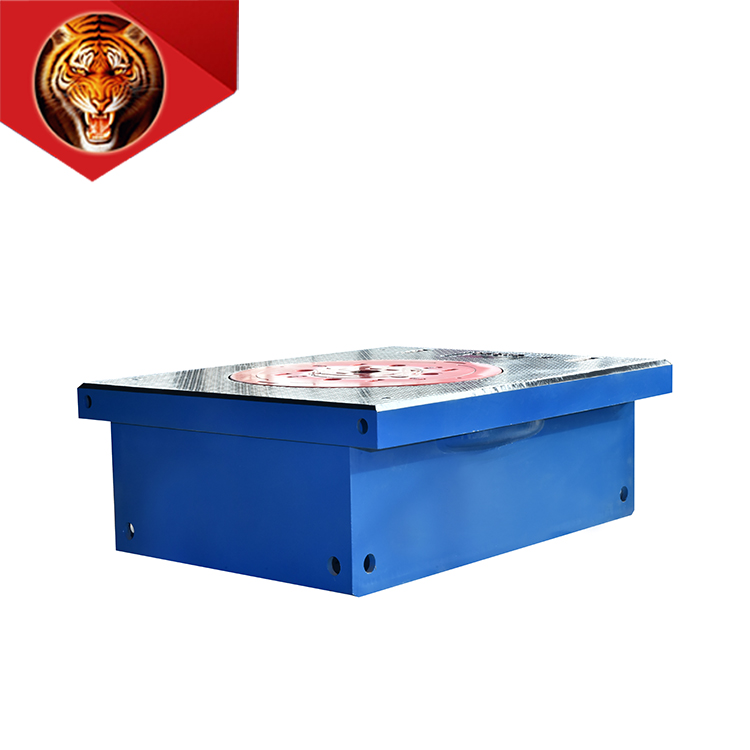

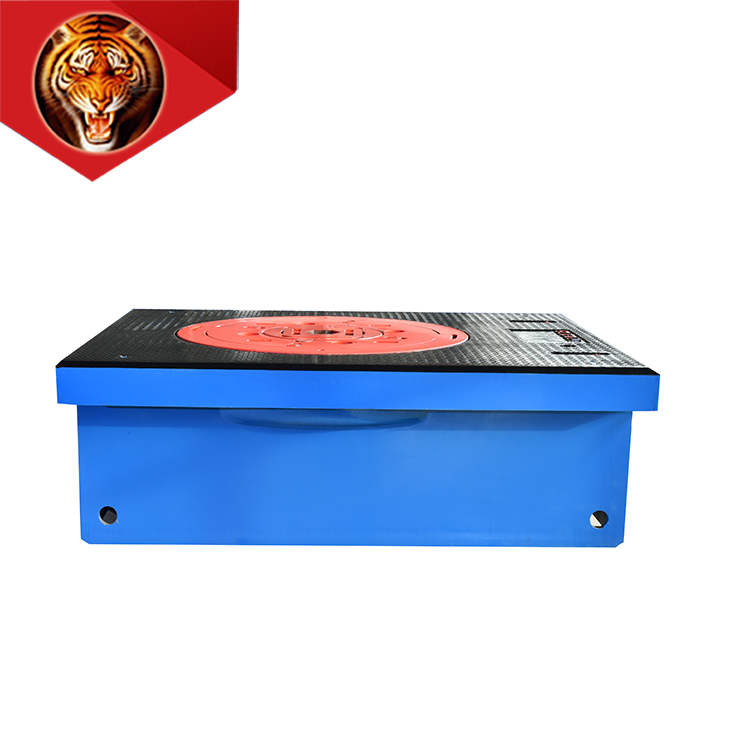

Tigerrig Rotary Table ZP375 .jpg

Tigerrig Rotary Table ZP375 (1).jpg

Tigerrig Rotary Table ZP375 (2).jpg

Tigerrig Rotary Table ZP375 (3).jpg 成都中航机械 Rotary Table (1).jpg

成都中航机械 Rotary Table (2).jpg

成都中航机械 Rotary Table (3).jpg

成都中航机械 Rotary Table (4).jpg

成都中航机械 Rotary Table (5).jpg

成都中航机械 Rotary Table (6).jpg

成都中航机械 Rotary Table (7).jpg

成都中航机械 Rotary Table (8).jpg

成都中航机械 Rotary Table (9).jpg

成都中航机械 Rotary Table (10).jpg

成都中航机械 Rotary Table (11).jpg

成都中航机械 Rotary Table (12).jpg

成都中航机械 Rotary Table (13).jpg

成都中航机械 Rotary Table (14).jpg

成都中航机械 Rotary Table (15).jpg

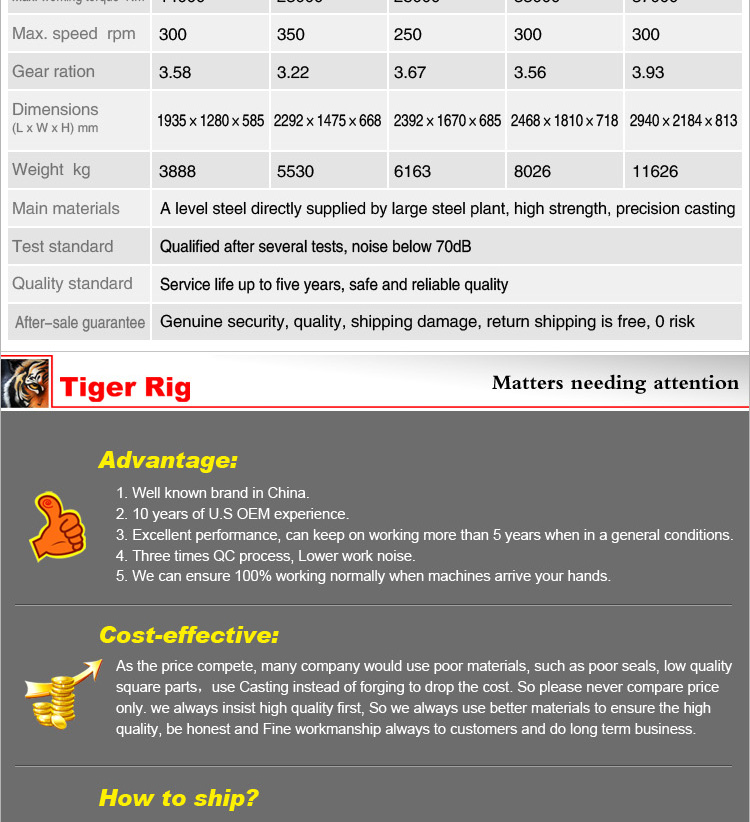

Specifications

Model	ZP175	ZP205	ZP275	ZP375	ZP495
Opening dia.	444.5	520.7	698.5	952.5	1257.3
mm(in)	(17 1/2)	(20 1/2)	(27 1/2)	(37 1/2)	(49 1/2)
Distance between rotary center and the teeth center of inner sprocket mm(in)	1118 (44)	1353 (53 1/4 )	1353 (53 1/4 )	1353 (53 1/4 )	1651 (65)
Max. static load kN	1350	3150	4500	5850	7200
Max. working torque Nm	14000	23000	28000	33000	37000
Max. speed rpm	300	350	250	300	300
Gear ration	3.58	3.22	3.67	3.56	3.93
Dimensions	1935×1280	2292×1475	2392×1670	2468×1810	2940×2184
(L x W x H) mm	×585	×668	×685	×718	×813
Weight kg	3888	5530	6163	7548	11626
