Tigerrig government factory 60yrs guarantee downhole fishing tool LL type reverse circulation junk basket
Product Description

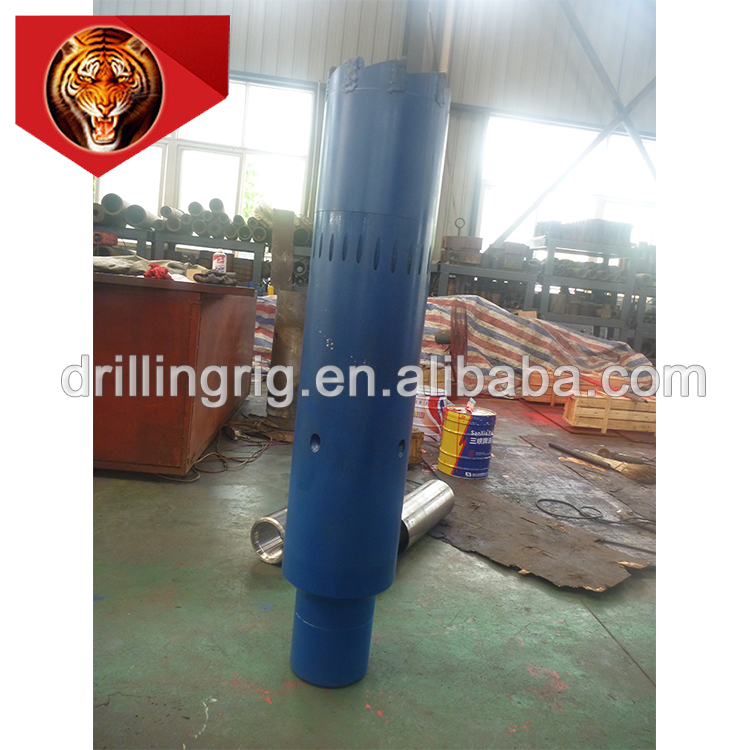

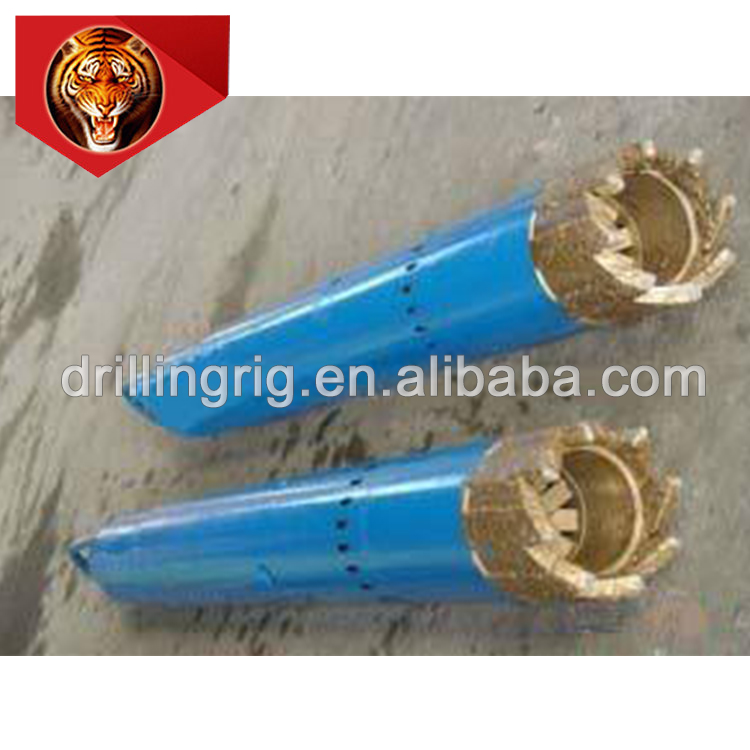

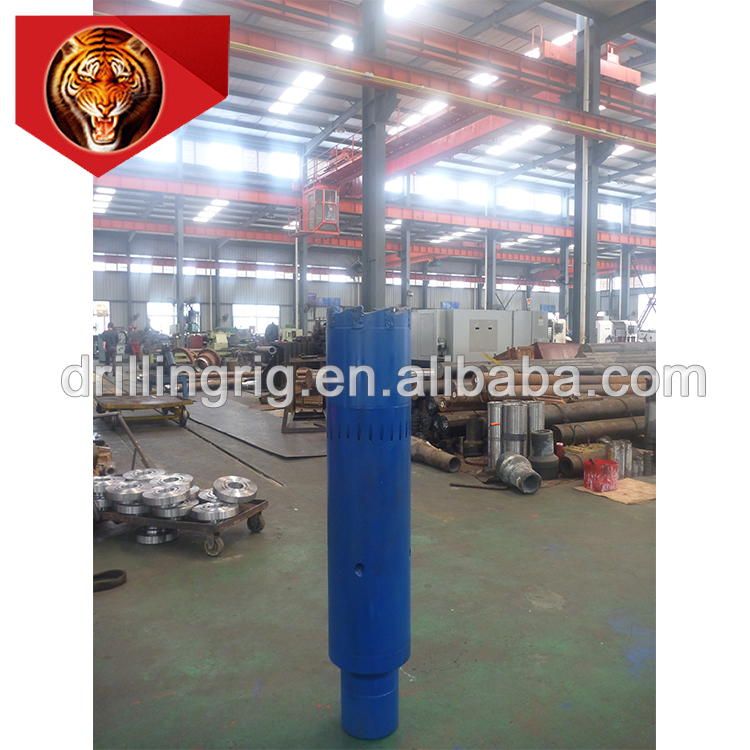

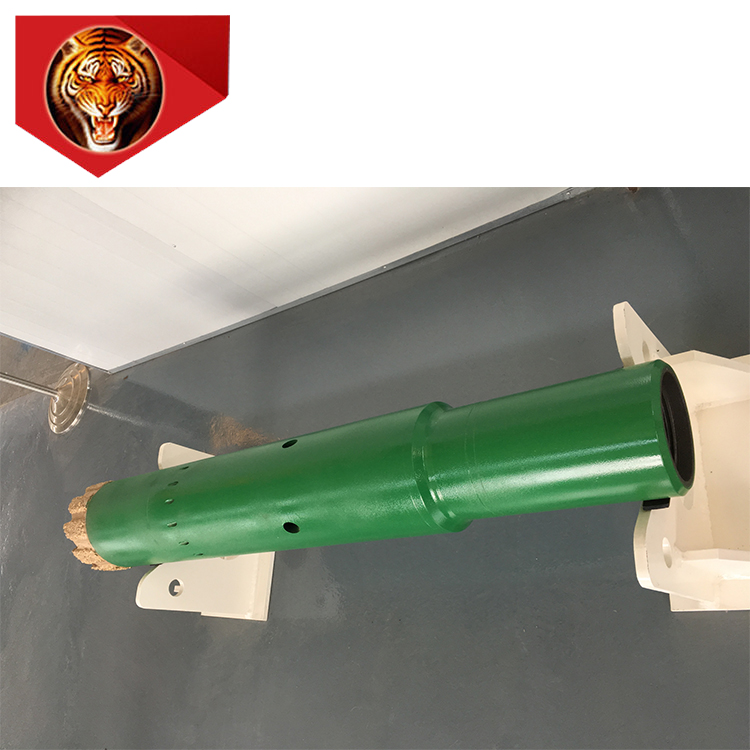

Model “LL” Reverse Circulating Junk Basket is designed to remove small pieces of junk such as bit cones, hand tools, slips, etc from the bottom of well. Its unique feature is utilizing the principle of reverse fluid circulation. Moreover, it can be used as a special coring tool.
Our Services
1. We will reply to your inquiry within two hours after receiving it, and arrange a special person to contact you. Please leave WhatsApp, WeChat and other communication tools as far as possible, so as to find yourself easily. If there is no response, please send a second letter.
2.Our company has a professional technical team and professional translators (Spanish, Arabic, Russian, and English). If you need to communicate with Russian service personnel, please inform them in advance by email.
3. We will provide the most competitive price in the Chinese market according to the requirements of your bidding documents to ensure the successful completion of your bidding project, so please give us sufficient preparation time, preferably the latest bid closing date.
4. Our downhole tools can be exchanged with American brand. If your part number is different, we need to compare the photo or installation size.
What you need to do?
1. Please provide the original brand, model and drawing number of accessories of the equipment you are using. If you do not know the specific name of the accessories of the downhole tools, you can provide the pictures as the supporting evidence, and we will transfer them to the technology department for verification.
2. Please provide office word format, Not JPG pictures. We need to translate them into Chinese. If it is JPG format, the quotation time will be extended by 1-2 days. Try to provide the original bidding document as a reference. If there is any doubt, we will mark it to facilitate you to check the name and size of the real downhole drilling tools.
3. If you need accurate weight and size, please indicate them in the mail together, and we will provide CIF price to facilitate your freight calculation.
4. For downhole tools, we provide export fumigation free wood packaging, If you need iron box packaging, please inform in advance.
FAQ
1.How long is the delivery time?
Some parts are available from stock, the delivery time is 1 day after you pay on Alibaba online.
2.How is your workflow?
We can confirm the specification and specification first, and then sign the sales contract and the drawings. Once the drawings are confirmed, we will take photos for you to confirm that the goods are new and in shipment before shipment. Please pay the balance before the machine leaves the factory, and then we will ship the machine to Shanghai.
3.How to deal with product quality problems?
We provide 24-hour online service, we give 24 hours online, skype: tiger-rig, urgent WeChat: +8618982250098, if there is an agent or branch, please ask our branch for help, such as in Russia, the United States, Dubai, the manager will come to your company or serve you by mobile, if there are technical questions, we will provide 12 hours online answers at 8:30-12:00, 14:00-18:00.
4.Can I be your agent in our country?
We are developing agents all over the world. You can sign agency agreements with us.
5.What is the warranty time of your products?
The warranty time is 12 months from the date of the commissioning. After the warranty, any questions and needs, please contact us.
Specifications
Model
O.D. of
mill mm (in)
Max.
O.D.
of fish
mm (in)
Steel ball
Suitable
well
diameter
mm(in)
Connection
API
LL32
84(3-5/16)
52(2-1/16)
30(1-3/16)
98~108
(3-7/8~4-1/4)
NC26
LL34
89(3-1/2)
55(2-5/32)
28(1-3/32)
LL36
96(3-25/32)
64(2-1/2)
LL40
105(4-1/8)
67(2-5/8)
107~114.3
(4-1/4~4-1/2)
LL44
116(4-9/16)
80(3-1/8)
35(1-3/8)
117.5~127
(4-5/8~5)
LL46
124(4-7/8)
130~139.7
(5-1/8~5.5)
3 1/2REG
LL51
135(5-5/16)
96.5(3-23/32)
40(1-37/64)
142.9~152.4
(5-5/8~6)
NC31
LL54
145(5-23/32)
112(4-13/32)
155.6~165.1
(6-1/8~6-1/2)
LL54Ⅱ
140(5-1/2)
106(4-3/16)
NC38
LL56
146(5-3/4)
LL62
163(6-7/16)
122(4-13/16)
45(1-25/32)
168.2~187.3
(6-5/8~7-3/8)
NC40
LL64
169(6-21/32)
172~190.5
(6-3/4~7-1/2)
4 1/2REG
LL70
181(7-1/8)
133(5-1/4)
190.5~209.5
(7-1/2~8-1/4)
LL77
200(7-7/8)
148(5-13/16)
212.7~241.3
(8-3/8~9-1/2)
NC46
LL81
206(8-1/8)
156(6-1/8)
50(1-31/32)
NC50
LL85
220(8-11/16)
168(6-5/8)
232~244.5
(9-1/8~9-5/8)
LL90
230(9-1/16)
178(7)
244.5~241.3
LL95
250(9-13/16)
192(7-9/16)
273~295.3
(10-3/4~11-5/8)
LL101
257(10-1/8)
195.5(7-11/16)
NC56
LL106
278(10-15/16)
210(8-1/4)
298.5~317.5
(11-3/4~12-1/2)
6 5/8REG
LL112
286(11-1/4)
LL122
316(12-7/16)
243(9-9/16)
349.3~406.4
(13.75~16)
LL130
335(13-3/16)
258(10-5/32)
7 5/8REG
