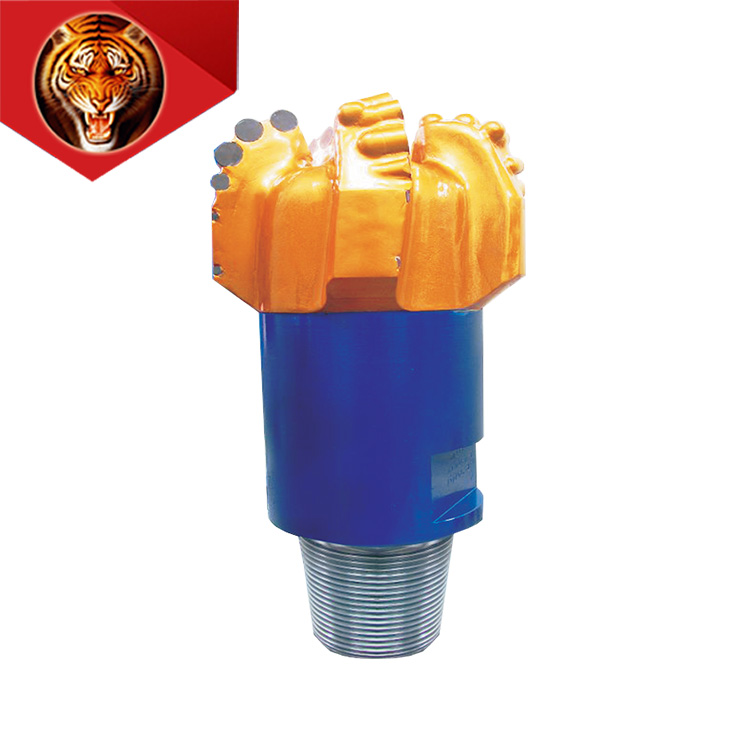

Tigerrig KMD KSD Series Matrix Steel Body PDC Bits
Characteristics of KMD/KSD series bits:
1.Shallow cone and short gage design make the bit having betters steer ability to satisfy any demand of directional drilling applications.
2.Optimized profile design and denser cutter lay out at shoulder area can guarantee higher side cutting ability of the bit.
3.Inclined gage design to increase the bit's stability and gage protection in directional drilling applications.
4.Enhanced gage design to improve the bit's ability of gage protection.
5.Optimized hydraulic design for increased cooling and cleaning effects of the bit in horizontal and directional sections and therefore, to prevent bit balling and improve ROP of the bit.
Specifications
1
Very soft formation
M/(S)123
Clay mudstone
KM(S)D1942、KM(S)D1952
2
Soft formation
M/(5)223 M/(5)224
Marlite saline rock shale
KM(S)D1952、KM(S)D1642、KM(S)D1652
3
Medium soft formation
M/(S)323 M/(5)324
Saline sandstone chalk
KM(S)D1953、KM(S)D1653、KM(S)D1663
4
Medium formation
M/(5)424
M/(5)433
Sandstone limestone shale
KM(S)D1665、KM(S)D1673、KM(S)D1362、KM(S)D1375
