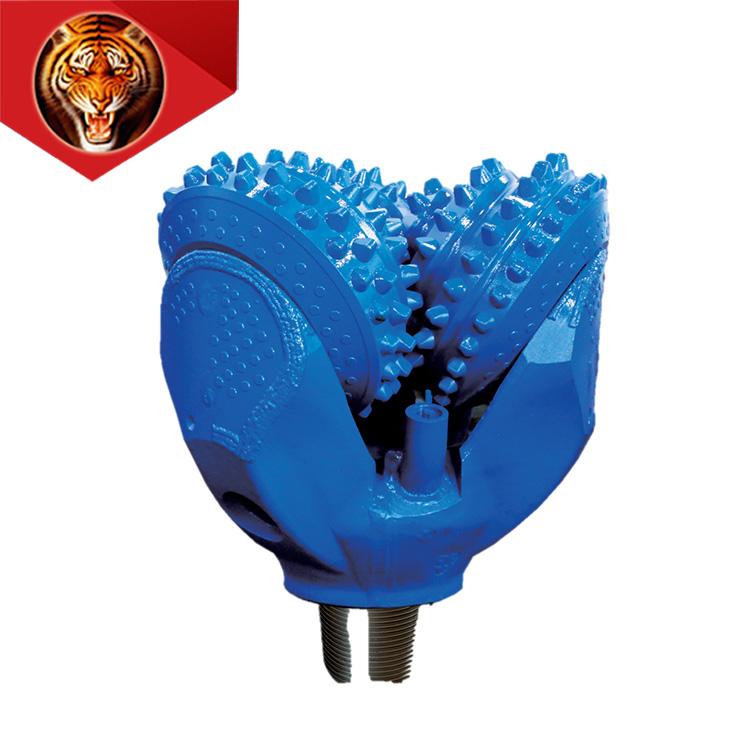

Tigerrig KHD Series Ultra-Large Size Roller Cone Bit
Production Description:
KHD series bit is specially designed for drilling large diameter borehole. This series products adopt roller bearing and special hydraulic structure, can effectively clean bottom hole and bit cones, as well as remove cuttings at bottom hole quickly, so as to avoid bit balling and realize fast drilling, and finally dramatically increase footage and ROP. The bit is also with the features of safety, reliability and stability.
1.The size of KHD series bits ranges from 19 5/16—36 inch, the IADC code ranges from 111— 535, and recommended RPM is between 240rpm～60rpm.
Features:
1.High reliability and long service life
When this type of bit uses roller bearing and rubber seal that is suitable for high RPM drilling condition, it adopts new type of lubrication system, and so, reliability of the bit is improved and working life of the bit is extended.
2.Special hydraulic system and high ROP
Bottom hole flow field and cuttings removal are improved and ROP is increased by utilizing enhanced bit hydraulic structure.
3.Optional features
C: Center jet
C4: Center jet + intermediate jet X: Wedge inserts
Y: Conical spherical inserts
Specifications
Bit Size
Bit type
in
mm
Non-sealed
Sealed bearing
Insert bits
19 5/16
490.54
20
508
KHD415G
22
558.8
KHD111
KHD115G
KHD425G
23 1/2
596.9
KHD121
KHD125G
KHD435G
24
609.6
KHD131
KHD135G
KHD445G
26
660.4
KHD515G
28
711.2
KHD535G
34
863.6
KHD114
36
914.4
KHD134
