Tigerrig latest technology retail factory sell high quality and low price AAX type tong
Production Description：

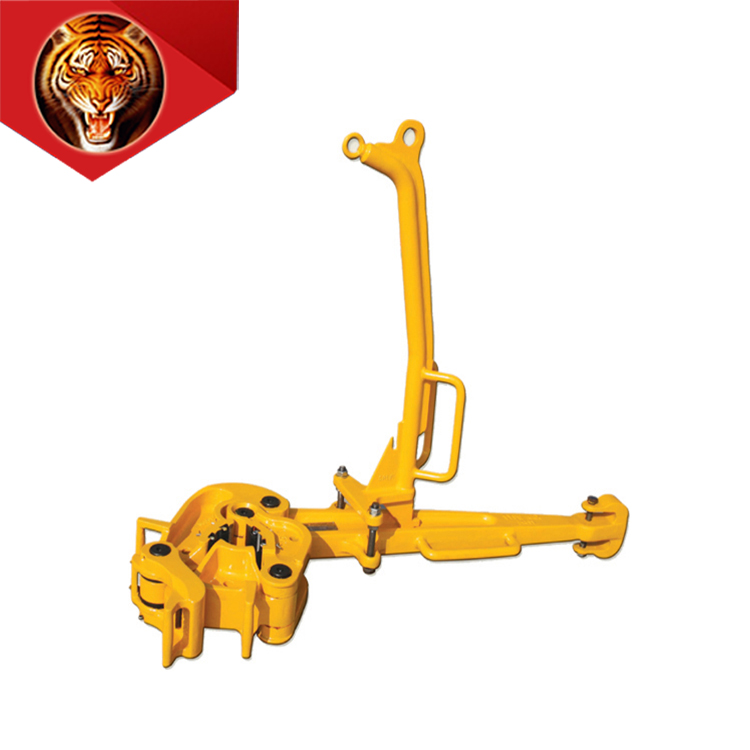

Type Q73-340/75(2 7/8-13 3/8sin) AAX manual Tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws.
Specifications
Buckle clamp
Buckle diameter
Rated torque
mm
in
KN.m
1
73-95.25
2 7/8-3 3/4
55
2
88.9-114.3
3 1/2 -4 1/2
3
107.95-133.35
4 1/4-5 1/4
75
4
127-177.8
5-7
5
174.6-219.1
6 7/8-8 5/8
6
228.6-273.05
9-10 3/4
40
7
273.05-298.45
10 3/4-11 3/4
8
339.7
13 3/8
