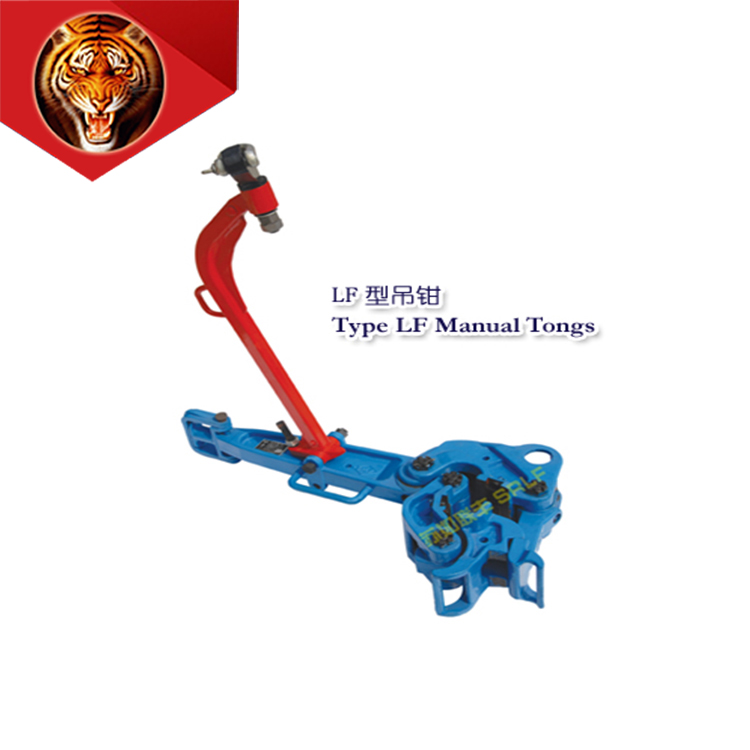

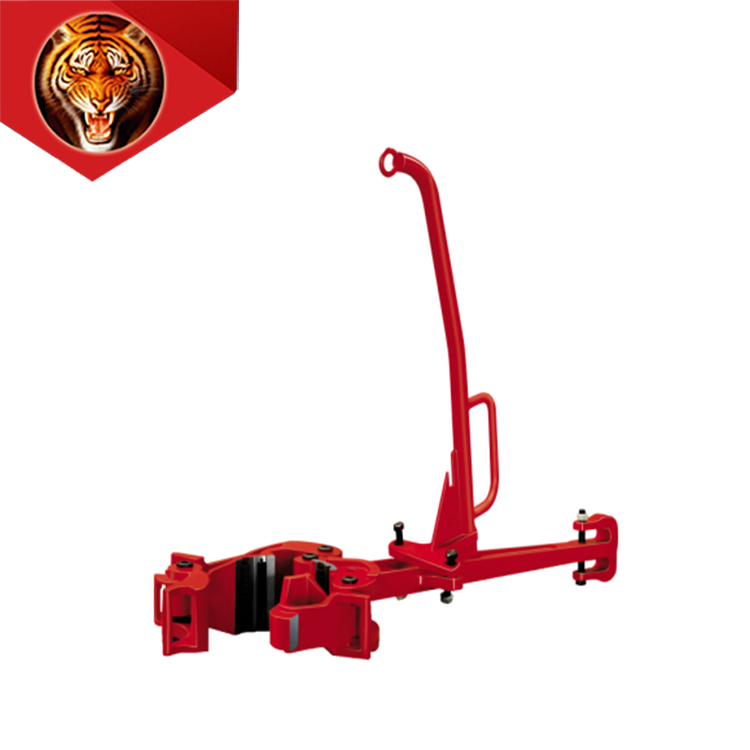

Tigerrig API7K oilfield drilling wellhead tools LF type clamp /manual tongs
Production Description:
The Q60-178/22 (2 3/8-7in) LF clamp is a tool for loading and unloading drills and pipe threads during workover and drilling or other drilling operations. The clamp can be replaced by a snap fit. Clamp, change each fastening shoulder to change the buckle.
Specifications
Buckle clamp
Buckle shoulder
Buckle diameter
Rated torque
mm
in
22
1
60.3-73
2 3/8-2 7/8
2
73-88.9
2 7/8-3 1/2
88.9-107.9
3 1/2-4 1/4
107.9-127
4 1/4-5
3
120.7-139.7
4 3/4-5 1/2
139.7-158.7
5 1/2-6 1/4
4
146.1-161.9
5 3/4-6 3/8
161.9-177.8
6 3/8-7
