Tigerrig API 7K Drilling Rig Handling Tools D/C/B Type Drill Pipe Manual Tongs for Oil Well Drilling

< >

Features
Specification

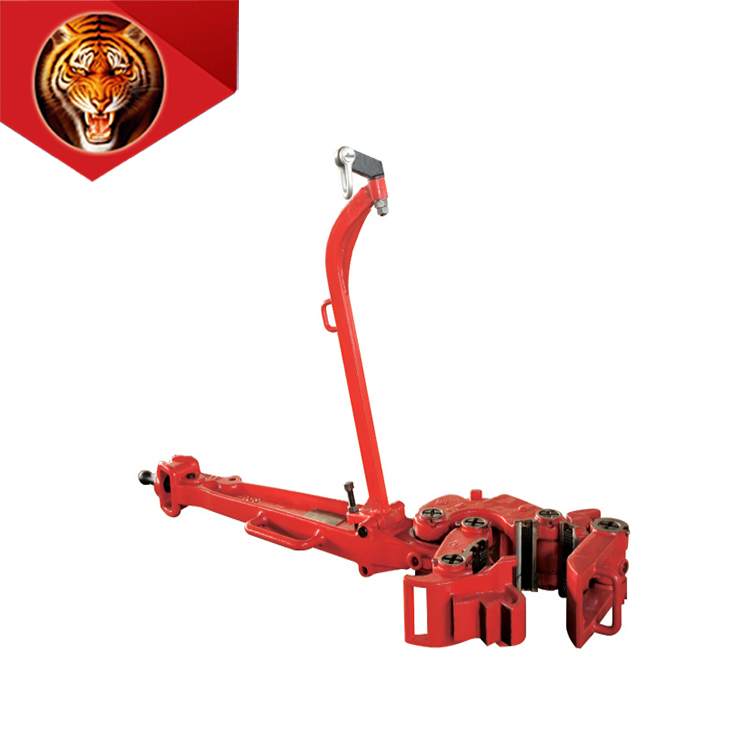

Tigerrig API 7K Drilling Rig Handling Tools D/C/B Type Drill Pipe Manual Tongs for Oil Well Drilling

Production description:

Q/86-324/75 (3 3/8-12 3/4in) B-type tongs are an essential tool for unloading drill pipe and casing joints or coupling threads on oil drilling equipment, and can be replaced by snap tongs. Change each snap shoulder to change the snap size.










Specifications

Buckle clamp	Buckle shoulder	Buckle diameter	Rated torque
5a	1	86-105(3 3/8-4 1/8)	55
5a	2	105-133(4 1/8-5 1/4)	75
5b	1	108-133(4 1/4-5 1/4)	75
	2	127-146(5-5 3/4)	75
	3	152-171(6-6 3/4)	75
5b-1	1	133-146(5 1/4-5 3/4)	75
	2	152-168(6 -6 5/8)	75
	3	171-203(6 3/4-8)	55
5c	1	168-187(6 5/8-7 3/8)	75
	2	187-203(7 3/8-8)	75
	3	216-244(8 1/2-9 5/8)	55
5d	1	216-244(8 1/2-10 3/4)	55
5d	2	270-273(105/8-10 3/4)	55
5e	1	298(11 3/4)	55
5e	2	324(12 3/4)	55
5e3	1	340 (13 3/8)	55
