Tigerrig high performance 3 1/2" to 5" DU type drill pipe rotary slips for well drilling

< >

Features
Specification

Tigerrig high performance 3 1/2" to 5" DU type drill pipe rotary slips for well drilling

Production description：

DU series turntable slips are composed of DU type, DUL type and SDU type three types of turntable slips. The slips have a wide range of buckles and light weight. Among them, SDU type kava back cone has large contact surface, high strength and wear resistance. Good sex. The product is designed and manufactured according to API Spec 7K specifications.

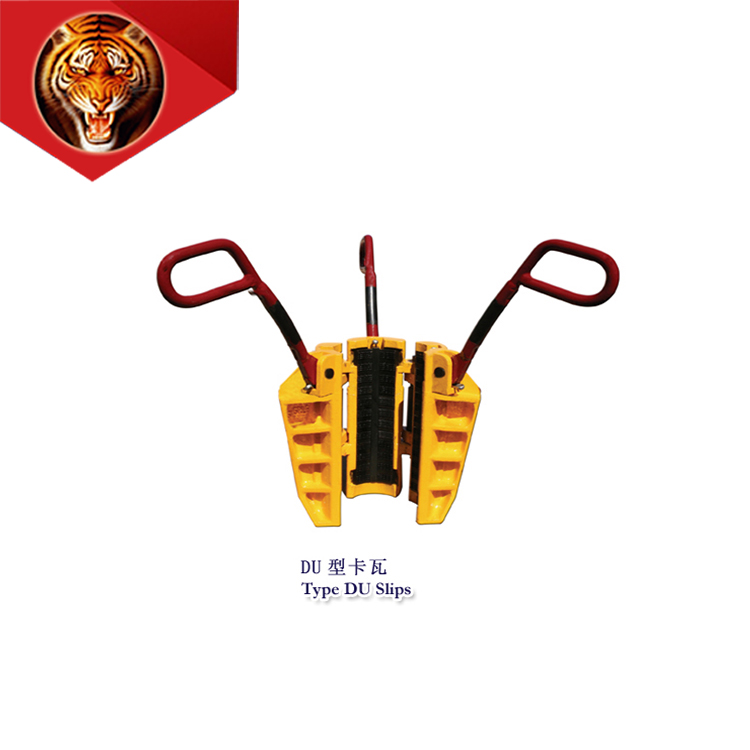

Tigerrig DU type turntable slip.jpg








Specifications

Model	Kava bodysize		4.1/2
DU	Drill pipe diameter	in	2.3/8	2.7/8	3.1/2	4	4.1/2
DU	Drill pipe diameter	mm	60.3	73.0	88.9	101.6	114.3
DUL	Drill pipe diameter	in	2.3/8	2.7/8	3.1/2	4	4.1/2
DUL	Drill pipe diameter	mm	60.3	73.0	88.9	101.6	114.3
SDU	Drill pipe diameter	in	-	-	-	-	-
SDU	Drill pipe diameter	mm	-	-	-	-	-
model	Kava bodysize		5.1/2
DU	Drill pipe diameter	in	3.1/2	4	4.1/2	5	5.1/2
DU	Drill pipe diameter	mm	88.9	101.6	114.3	127	139.7
DUL	Drill pipe diameter	in	3.1/2	4	4.1/2	5	5.1/2
DUL	Drill pipe diameter	mm	88.9	101.6	114.3	127	139.7
SDU	Drill pipe diameter	in	3.1/2	4	4.1/2	5	5.1/2
SDU	Drill pipe diameter	mm	88.9	101.6	114.3	127	139.7
model	Kava bodysize		7
DU	Drill pipe diameter	in	4.1/2	5	5.1/2	6.5/8	7
DU	Drill pipe diameter	mm	114.3	127	139.7	168.3	177.8
DUL	Drill pipe diameter	in	-	-	-	-	-
DUL	Drill pipe diameter	mm	-	-	-	-	-
SDU	Drill pipe diameter	in	4.1/2	5	5.1/2	6.5/8	7
SDU	Drill pipe diameter	mm	114.3	127	139.7	168.3	177.8
