Tigerrig high performance HYT/YT/MYT/LYT/HYC/MYC/YC Y series slips type elevator for drilling rig

< >

Features
Specification

Tigerrig high performance HYT/YT/MYT/LYT/HYC/MYC/YC Y series slips type elevator for drilling rig

Production Description:

Y-type slip-type elevator is an essential tool for holding drill pipe, casing and oil pipe during drilling and workover. It is especially suitable for integral joint oil pipe, joint less casing and electric diving. Lifting of the pump string. Elevators are designed in accordance with API Spec 8A Specification for Drilling and Production Hoisting Equipment.

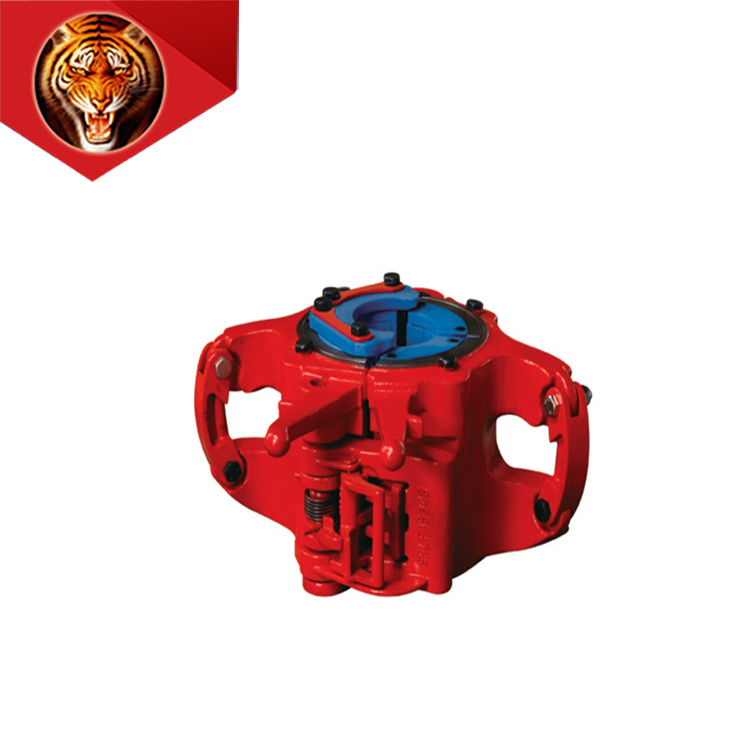

Tigerrig YY type card type elevator (3).jpg

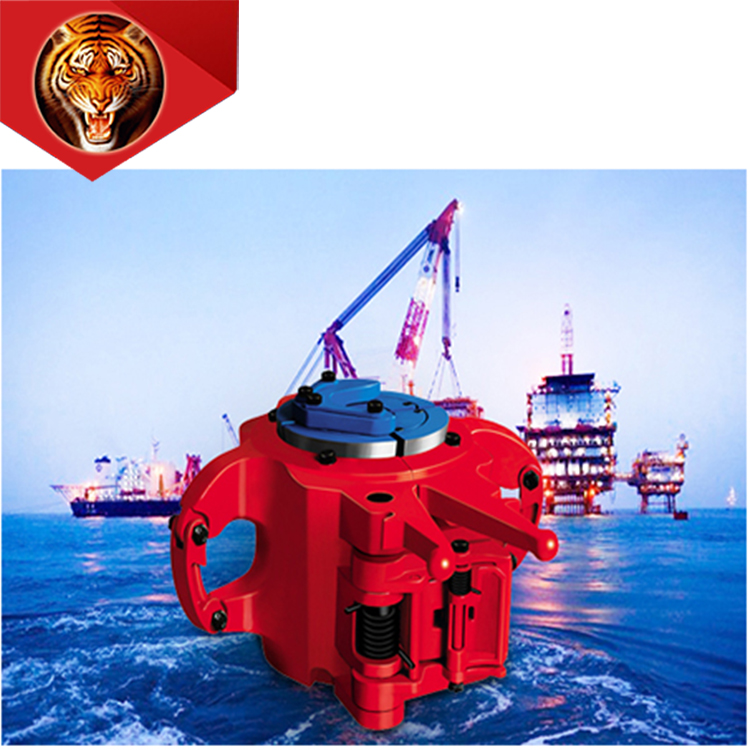

Tigerrig YY type card type elevator (1).jpg

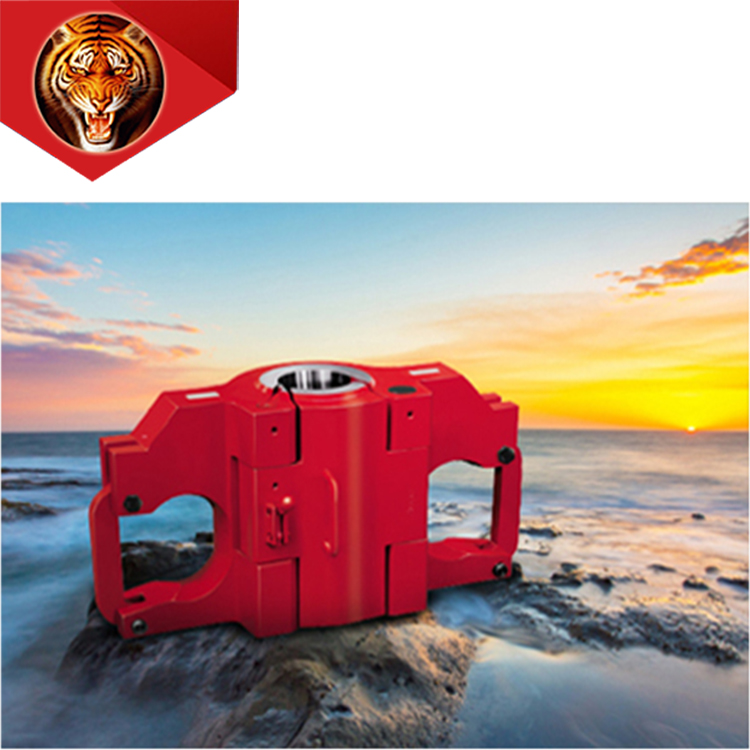

Tigerrig YY type card type elevator (2).jpg








Specifications

Model	Applicable pipe diameter		Maximum load
Model	Kava body	Pipe diameter	Maximum load
MYT	2 7/8	1.315-2 7/8	40(360)
YT	2 7/8	1.315-2 7/8	75(670)
YT	3 1/2	2 7/8 -3 1/2	75(670)
MYT	2 7/8	3 1/2-4 1/2	150(1350)
MYT	3 1/2	5-5 1/2	150(1350)
YC	4 1/2	3 1/2-4 1/2	75(670)
	5 1/2	5-5 1/2
	7	6 5/8-7
YC	4 1/2	3 1/2-4 1/2	125(1125)
	5 1/2	5-5 1/2
	7	6.5/8-7
MYC	4 1/2	3 1/2-4 1/2	200(1800)
	5 1/2	5-5 1/2
	7	6 5/8-7
	7 5/8	7.5/8
