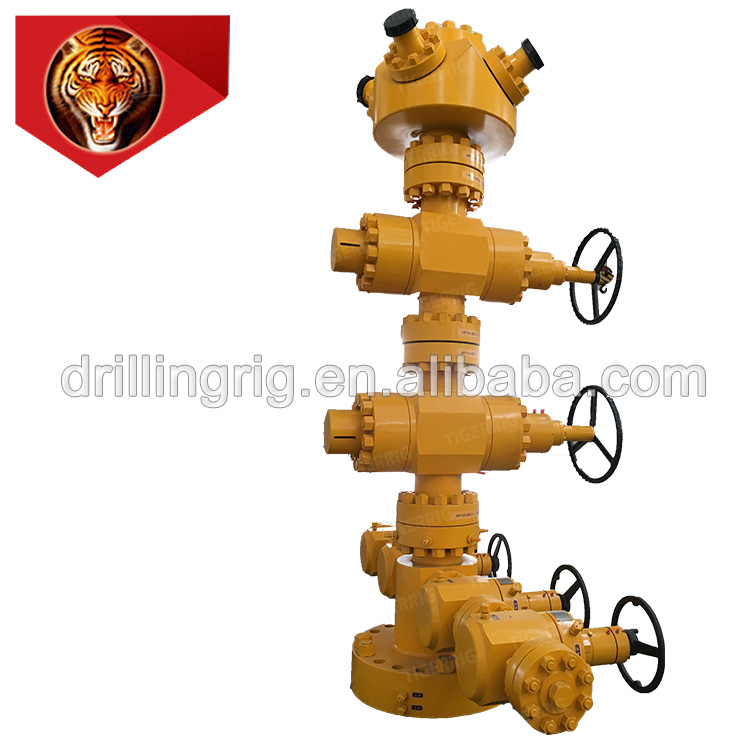

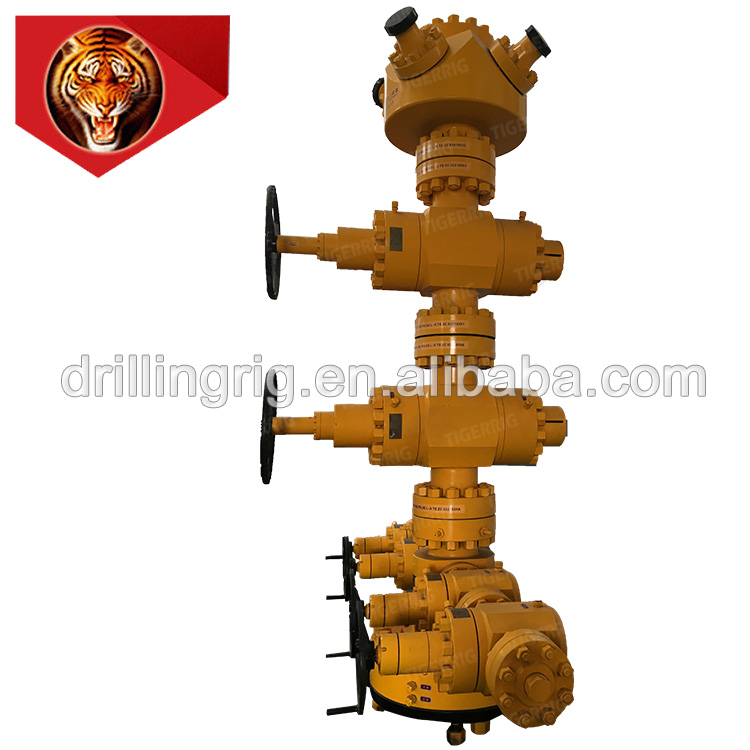

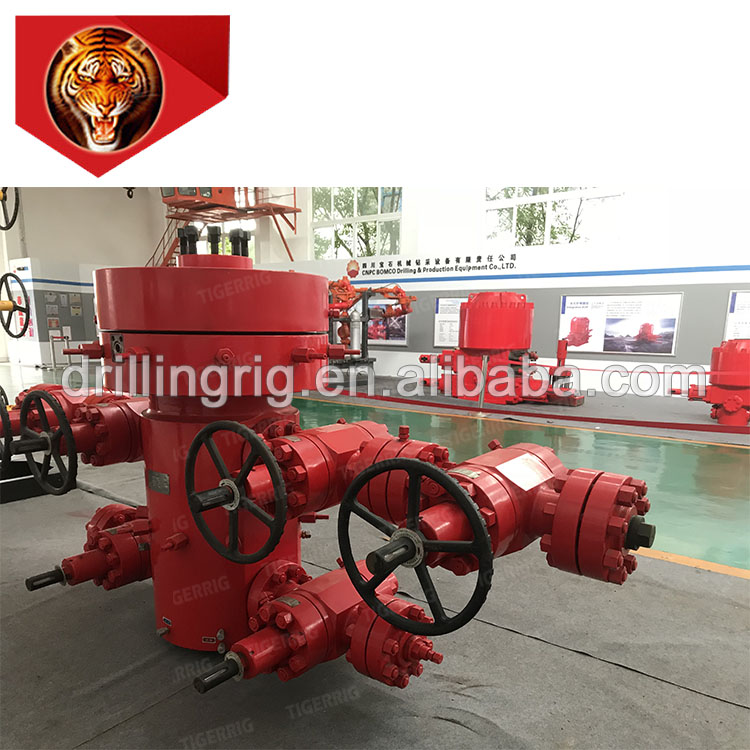

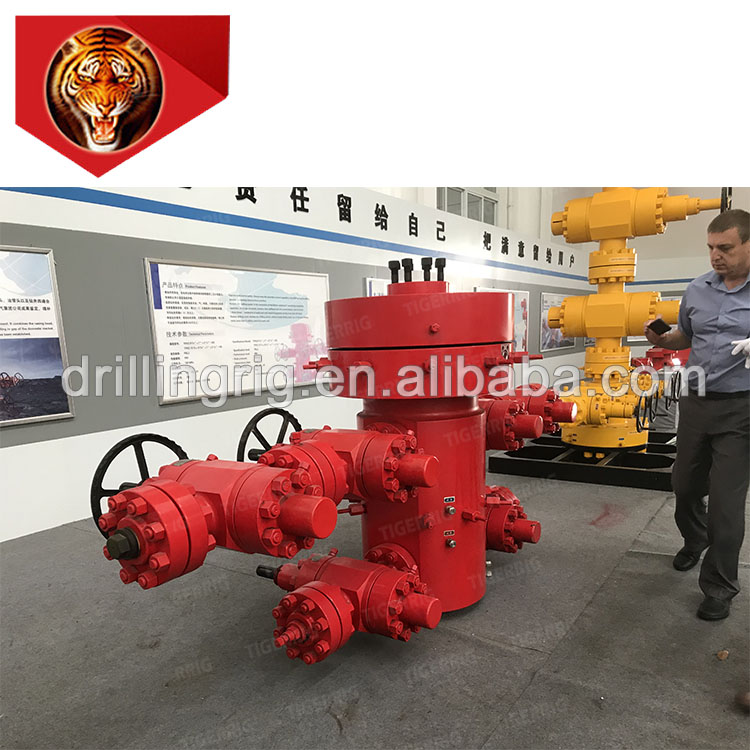

Tigerrig API 16A wellhead equipment Christmas tree connect with valve for oilfield drilling in the drilling rig
Production Description:
The oil production (gas) wellhead device consists of oil production (gas) trees and tubing heads. It is an important equipment for oil and gas exploration, drilling, completion, and implementation of underground special operations. The oil production (gas) tree switches, controls, and guides the flow of oil during oil and gas production. Control the input and output of various media in special operations underground. The tubing head hangs the tubing through the tubing hanger. The factory has the technology and ability to produce anti-corrosion products such as H2S and CO2.
Specifications:
Parameter
Model
Working pressure (Mpa)/psi

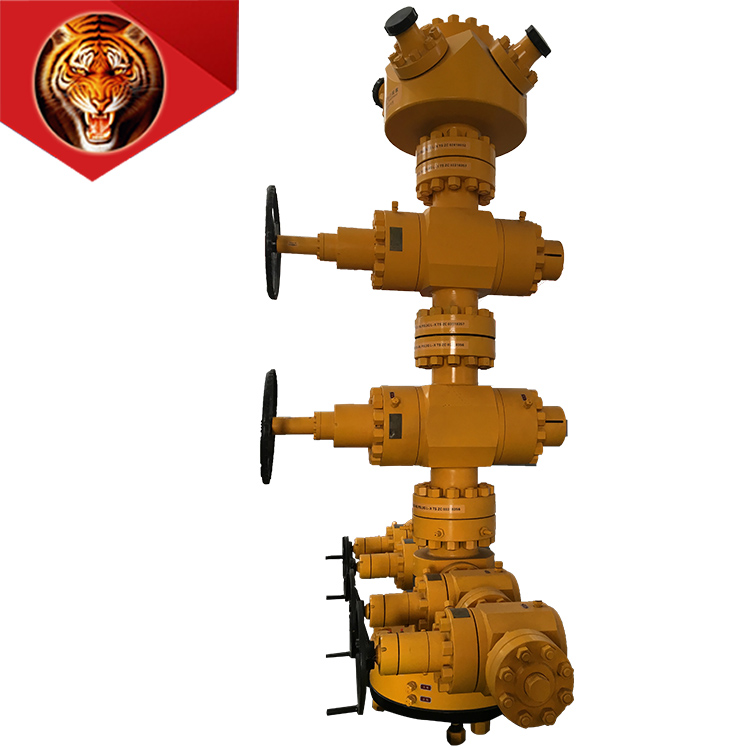

Christmas tree
Tubing head
Tubing hanger
The main size (in)/mm
Lateral size (in)/mm
Top API flange connection
Bottom API flange connection
KQ29/16-21
21
3000
2 9/16
65
6B7 1/16 -21
6B11-21
KQ29/16-35
35
5000
6B7 1/16 -35
6B11-35
KQ29/16×21/16-35
2 1/16
52
KQ31/8×29/16-35
3 1/8
80
KQ29/16-70
70
10000
2 6/19
6B×71/16 -70
6B×11-70
6B×135/8 -35
6B×7 1/16 -70
29/16
KQ31/16×29/16-70
3 1/16
78
KQ29/16-105
105
15000
6B×71/16 -105
6B×11-105
6B×7 1/16 -105
KQ31/16×29/16-105
KQ29/16-140
140
20000
6B×71/16 -140
6B×11-140
KQ31/16-140
31/16
