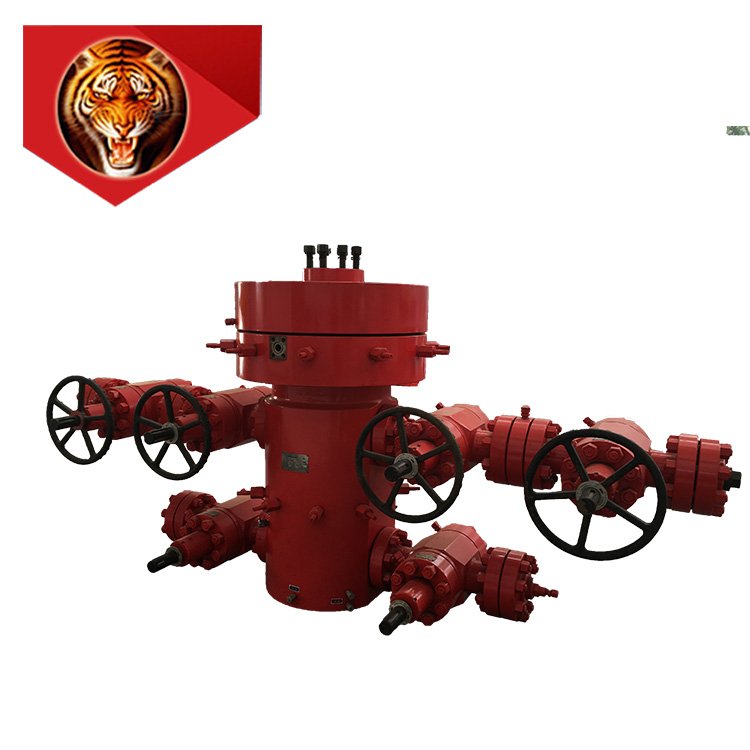

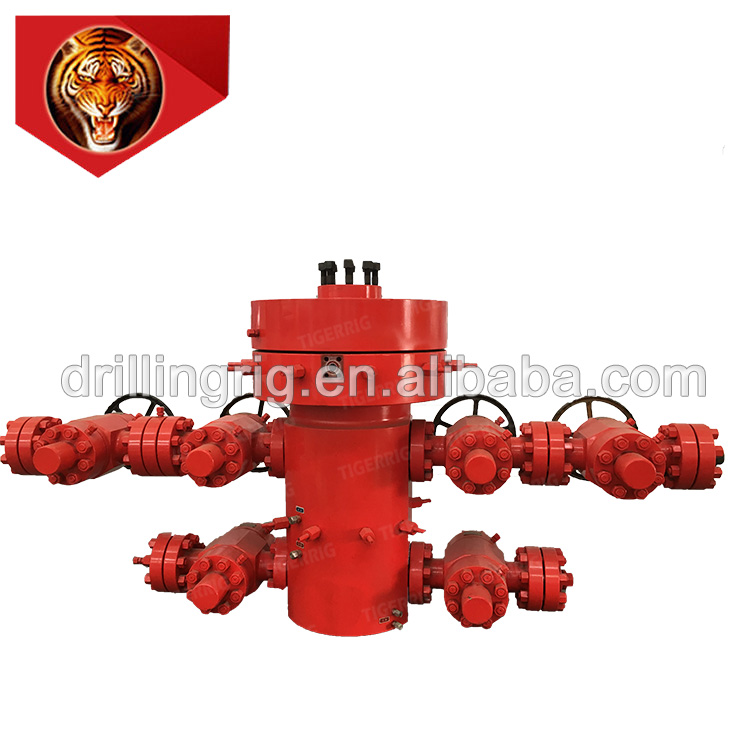

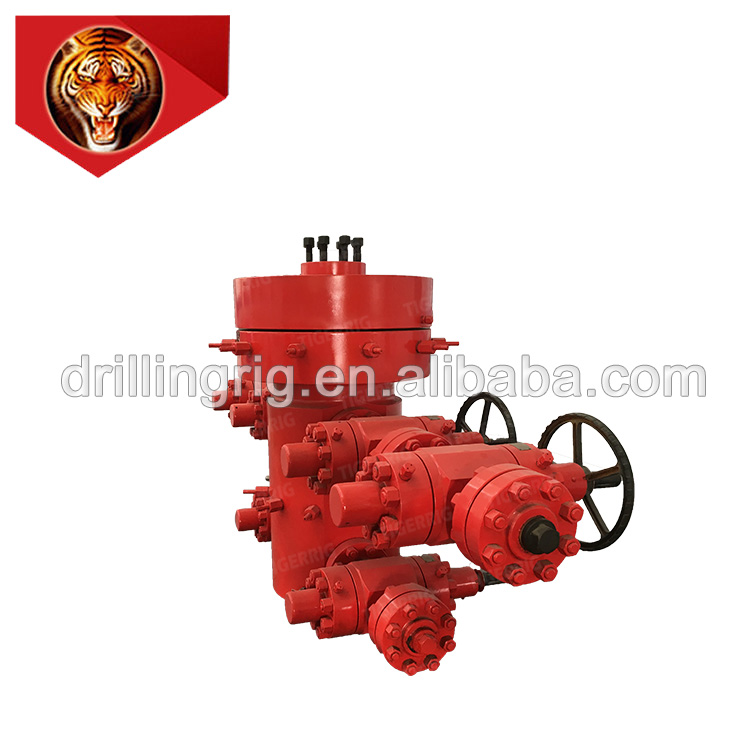

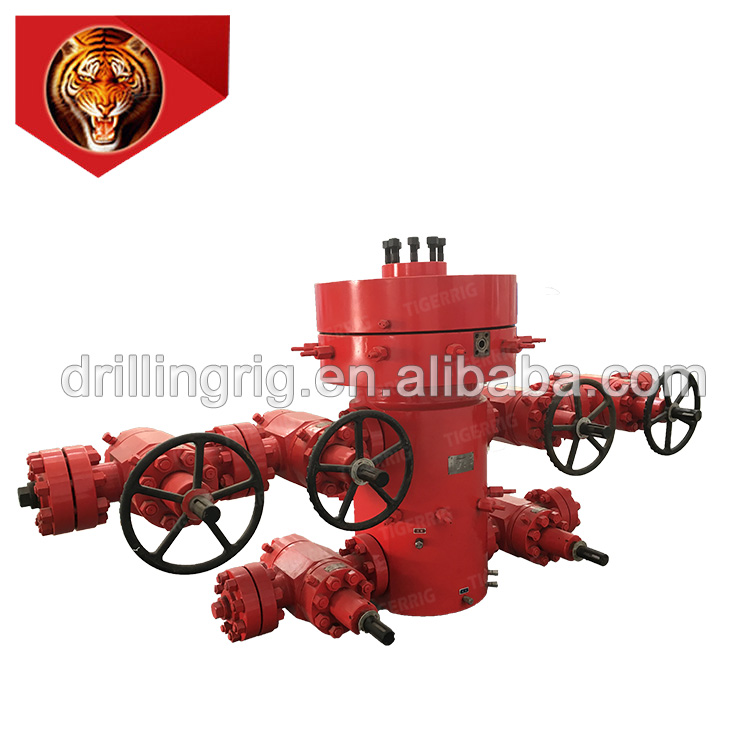

Tigerrig Rg Oilfield Wellhead Integrated Tubing and Casing Head
Production Description：
The overall structure of the new wellhead device is to combine the casing head, tubing head and drilling spool into one, and the lower end of the body can be designed to connect the surface casing in the form of inverted slips, welding or threading according to user requirements; the inner cavity of the body is provided with three The steps from bottom to top are the setting technique casing hanger step, the test pressure step, and the setting tubing suspension step.
Specifications
Connection type
Lower flange
Top flange
Vertical main path (in)
Rated working pressure (Mpa)
Height (mm)
(including bracket)
Bottom
Up
10 3/4 Chamfering thread
6BX135/8-75/105
6BX31/16-70
245
70/105
1700
9 5/8 Chamfering thread
6BX29/16-70
230
