Tigerrig china factory hydraulic combination of manifold
Production Description：

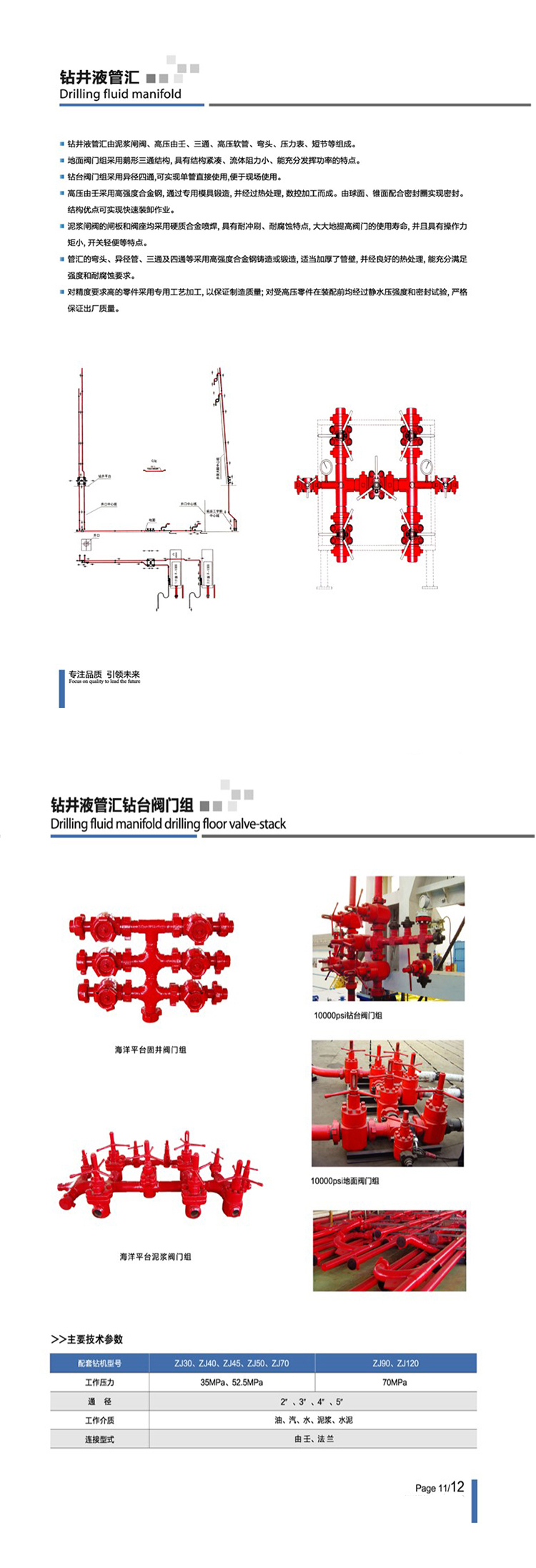

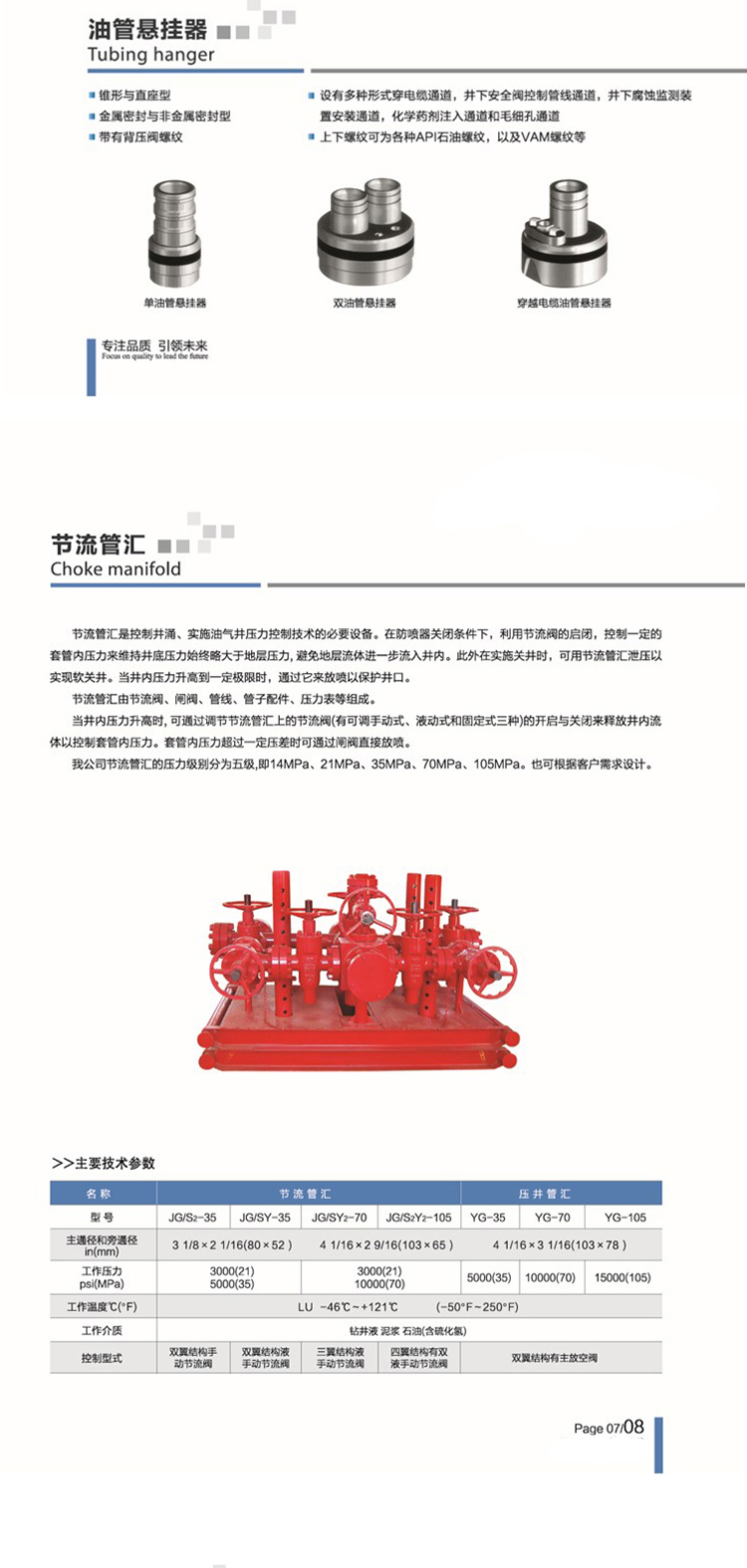

Our factory has designed and manufactured all kinds of drilling fluid manifold (pump manifold, ground manifold, vertical manifold, well cementing manifold, etc.) suitable for oil and gas exploration and development, drilling and repairing.Well control manifold (throttling manifold, kill manifold, etc.)Pressure fixing manifold system for cementing fracturing (pump truck discharge manifold, high and low pressure combined manifold, feeding manifold, ground pipeline, etc.);Ability and experience of ground test manifold (ground test equipment safety control system, ground separation and measurement system, data acquisition system).It can not only produce all kinds of standard manifold, but also design and manufacture all kinds of high-pressure fluid working manifold with special requirements such as drilling, cementing, logging, oil testing, acidizing fracturing, coiled tubing and sand control in desert and ocean working environment.
Specifications
Main technical parameters
Applied environment
Operating temperature
L、P、R、S、T、U、V
EE, FF -- acidic environment (refer to the definition of anti-sulfide stress cracking metal materials for oil field equipment (MR0175) by the American society of corrosion engineers (NACE))
Invaded performance
PR1~PR2
working pressure
14~105MPa
Specification level
PSL3~PSL4
Material Code
45K、60K、75K
Material grade
EE、FF
working medium
Drilling fluid, crude oil, natural gas
