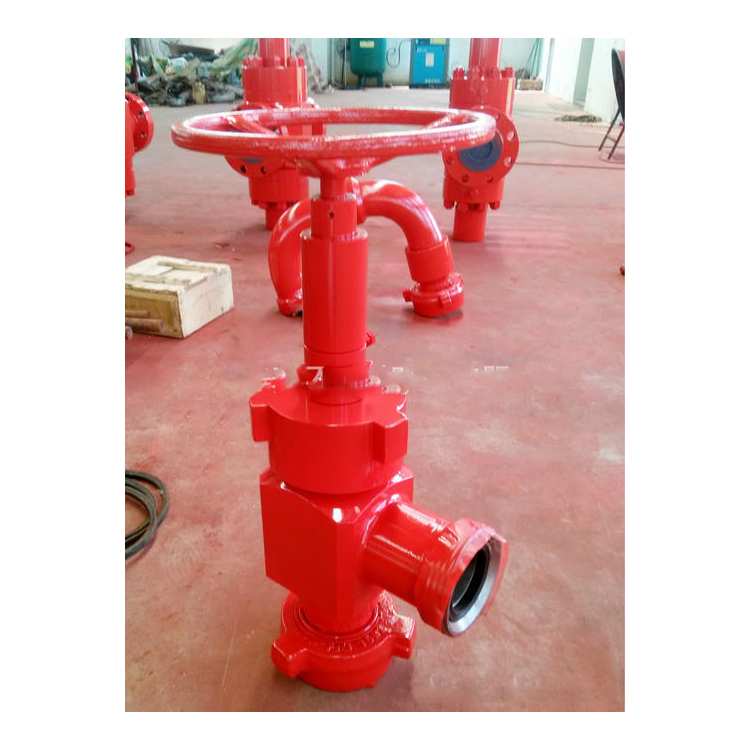

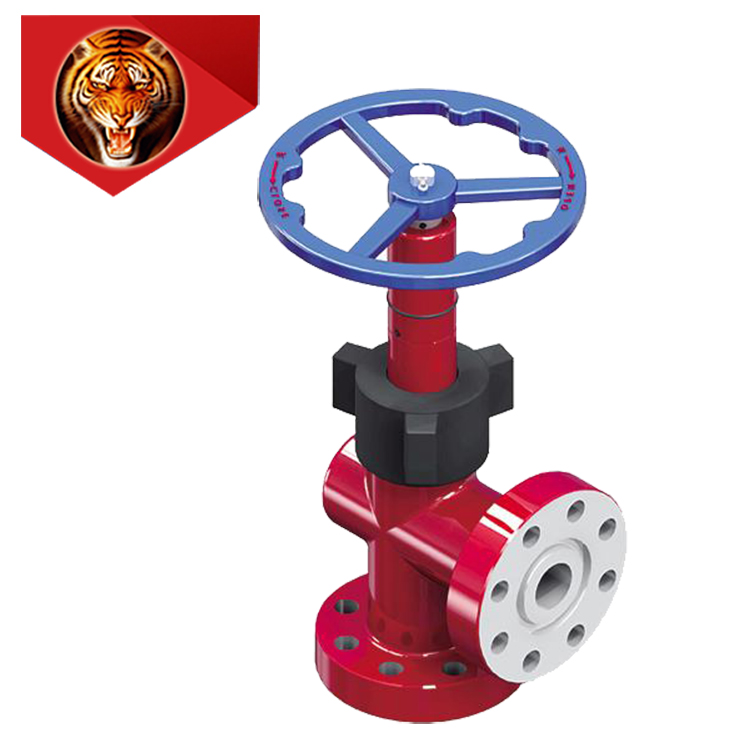

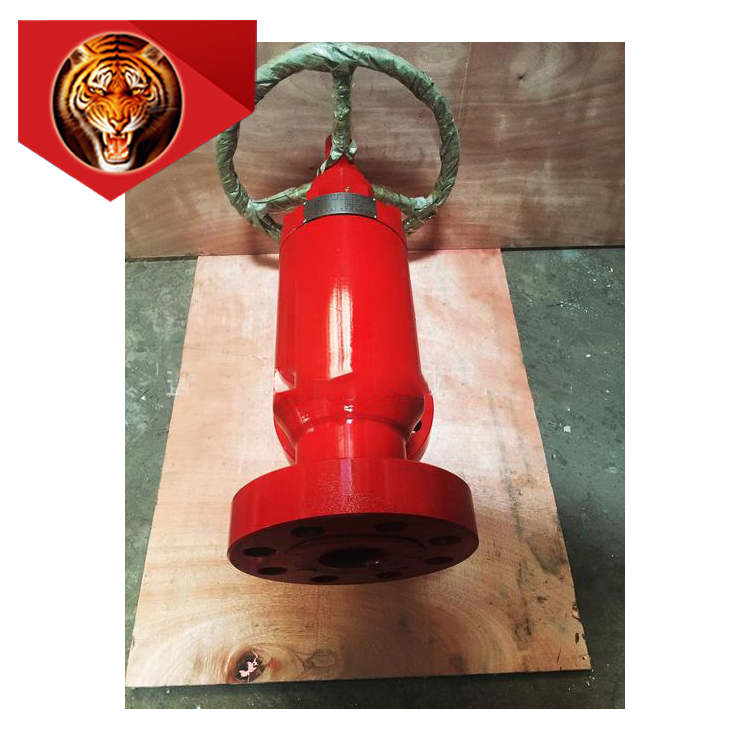

Tigerrig API factory price high quality JLK manual throttle valve
Product Description：
The stem head is made of spray-welded wear-resistant alloy (or hard alloy) material, which can resist high-pressure and high-speed fluid erosion; the union between the packing box and the valve body is union, which has a simple structure and is convenient for disassembly and assembly. Turn the adjustable throttle hand wheel to drive the valve stem to rotate, and the valve stem moves forward and backward, so that the gap between the valve needle and the annular cone surface of the valve seat changes to achieve the purpose of adjusting the flow rate.
Specifications
Specifications and Models
The main size
Section flow path
Working pressure
Mounting dimension
Flange Connections
mm
in
MPa
psi
A(mm)
B(mm)
JLK21/16*13/16-14
52.4
21/16
30
13/16
21
3000
200
6B21/16-14 R23
JLK21/16*13/16-21
14
2000
6B21/16-21 R24
JLK21/16*13/16-35
35
5000
6B21/16-35 R23
JLK21/16*13/16-70
70
10000
230
6B*21/16-70 B*152
JLK21/16*13/16-105
105
15000
6B*21/16-105 B*152
JLK29/16*13/16-14
65
29/16
300
6B29/16-14 R26
JLK29/16*13/16-21
6B29/16-21 R27
JLK29/16*13/16-35
6B29/16-35 R27
6B29/16-35 B*153
JLK29/16*21/16-35
52
267
298
JLK29/16*13/16-70
6B*29/16-70 B*153
JLK29/16*13/16-105
6B*29/16-105 B*153
JLK29/16*13/16-140
140
20000
250
280
6B*29/16-140 B*153
JLK31/16*21/16-70
78
31/16
6B*31/16-70 B*154
JLK31/16*21/16-105
6B*31/16-105 B*154
JLK31/16*21/16-140
6B*31/16-140 B*154
