Tigerrig cast iron electric PFFYmanual gate valve,flange cast steel gate valve pn16,pn16 dn150 actuated gate valve

< >

Features
Specification

Tigerrig cast iron electric PFFYmanual gate valve,flange cast steel gate valve pn16,pn16 dn150 actuated gate valve

Product Description：

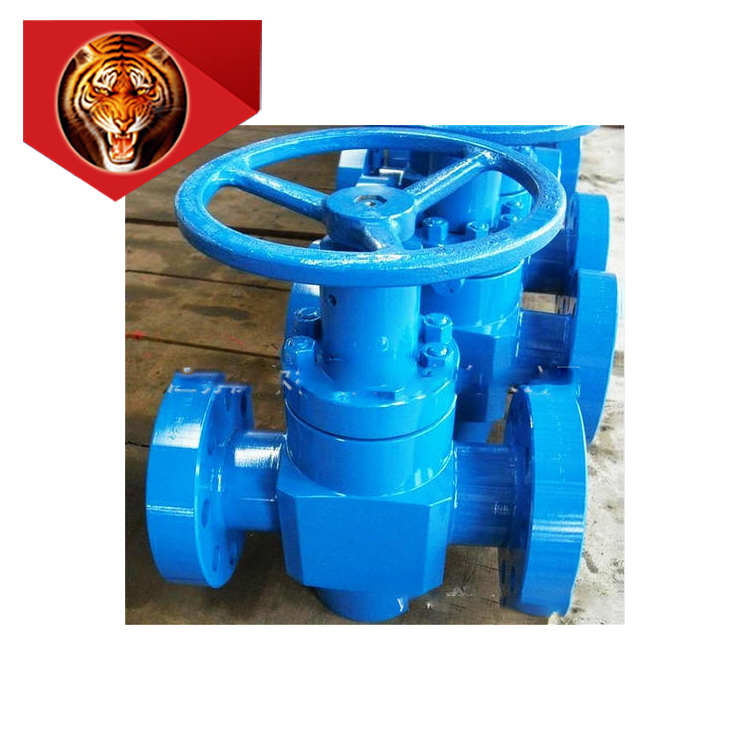

PFFY series hydraulic flat valve is an important component of wellhead device and Christmas tree, manifold and pipeline. Adopt hydraulic operation to realize the opening and closing of the valve.

Tigerrig PFFY Series hydraulic flange type parallel gate valve.1.jpg

Tigerrig PFFY Series hydraulic flange type parallel gate valve..jpg

Tigerrig PFFY Series hydraulic flange type parallel gate valve.2.jpg

Tigerrig PFFY Series hydraulic flange type parallel gate valve.4.jpg

Tigerrig PFFY Series hydraulic flange type parallel gate valve.5.jpg

Tigerrig PFFY Series hydraulic flange type parallel gate valve.6.jpg

Tigerrig PFFY Series hydraulic flange type parallel gate valve.jpg

Specifications

Specifications and Models	The main size		Working pressure		End distance (mm)	Flange Connections
Specifications and Models	mm	in	MPa	psi	End distance (mm)	Flange Connections
PFF series - rod type
PFFY2¹/₁₆-14	52.4	2¹/₁₆	14	2000	295	6B2¹/₁₆-14 R23
PFFY2¹/₁₆-21	52.4	2¹/₁₆	21	3000	371	6B2¹/₁₆-21 R24
PFFY2¹/₁₆-35	52.4	2¹/₁₆	35	5000	371	6B2¹/₁₆-35 R24
PFFY2¹/₁₆-70	52.4	2¹/₁₆	70	10000	521	6B2¹/₁₆-70 B152
PFFY2¹/₁₆-105	52.4	2¹/₁₆	105	15000	483/597	6B2¹/₁₆-105 B152
PFFY2⁹/₁₆-14	65	2⁹/₁₆	14	5000	333	6B2⁹/₁₆-14 R26
PFFY2⁹/₁₆-21	65	2⁹/₁₆	21	3000	422	6B2⁹/₁₆-21 R27
PFFY2⁹/₁₆-35	65	2⁹/₁₆	35	5000		6B2⁹/₁₆-35 R27
PFFY2⁹/₁₆-35(B*153)	65	2⁹/₁₆	35	5000		6B2⁹/₁₆-35 B*153
PFFY2⁹/₁₆-35(B*153)	65	2⁹/₁₆	35	5000	380	6B2⁹/₁₆-35 B*153
PFFY2⁹/₁₆-70	65	2⁹/₁₆	70	10000	565	6B2⁹/₁₆-70 B153
PFFY2⁹/₁₆-105	65	2⁹/₁₆	105	15000	533/635	6B2⁹/₁₆-105 B153
PFFY2⁹/₁₆-140	65	2⁹/₁₆	140	20000	763	6B2⁹/₁₆-140 B153
PFFY3¹/₈-14	80	3¹/₈	14	2000	359	6B3¹/₈-14 R31
PFFY3¹/₈-21	80	3¹/₈	21	3000	435	6B3¹/₈-21 R31
PFFY3¹/₈-35	80	3¹/₈	35	5000	473	6B3¹/₈-35 R35
PFFY3¹/₁₆-70	78	3¹/₁₆	70	10000	619	6B* 3¹/₁₆-70 B*154
PFFY3¹/₁₆-105	78	3¹/₁₆	105	15000	598	6B* 3¹/₁₆-105 B*154
PFFY3¹/₁₆-140	78	3¹/₁₆	140	20000	775	6B* 3¹/₁₆140 B*154
PFFY4¹/₁₆-14	103	4¹/₁₆	14	2000	435	6B4¹/₁₆-14 R35
PFFY4¹/₁₆-21	103	4¹/₁₆	21	3000	511	6B4¹/₁₆-21 R37
PFFY4¹/₁₆-35	103	4¹/₁₆	35	5000	549	6B4¹/₁₆-35 R39
PFFY4¹/₁₆-70	103	4¹/₁₆	70	10000	670	6B* 4¹/₁₆-70 B*155
PFFY4¹/₁₆-105	103	4¹/₁₆	105	15000	737	6B* 4¹/₁₆-105 B*155
PFFY7¹/₁₆-70	180	7¹/₁₆	70	10000	889	6B* 7¹/₁₆-70 B*156
PFFY7¹/₁₆-105	180	7¹/₁₆	105	15000	1100	6B7¹/₁₆-105 B156
