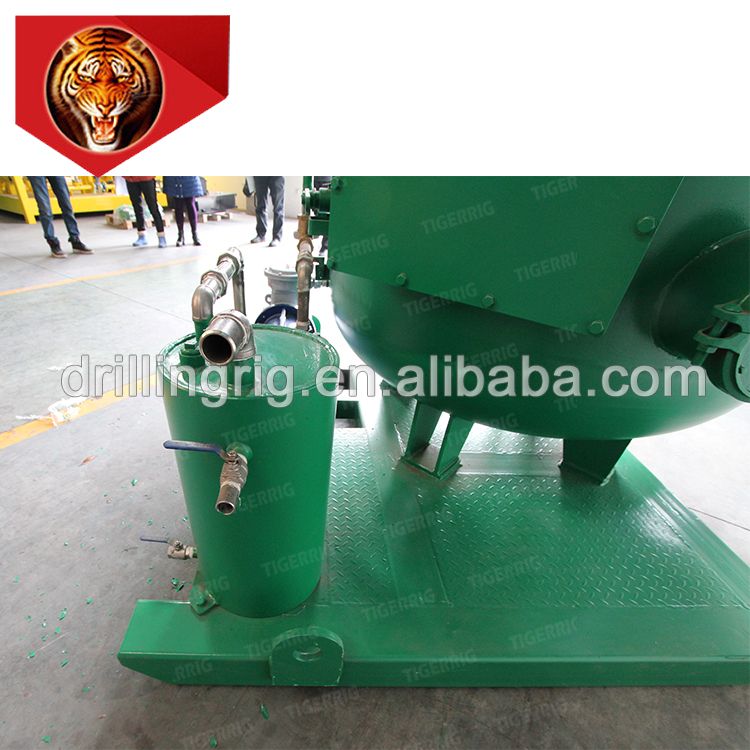

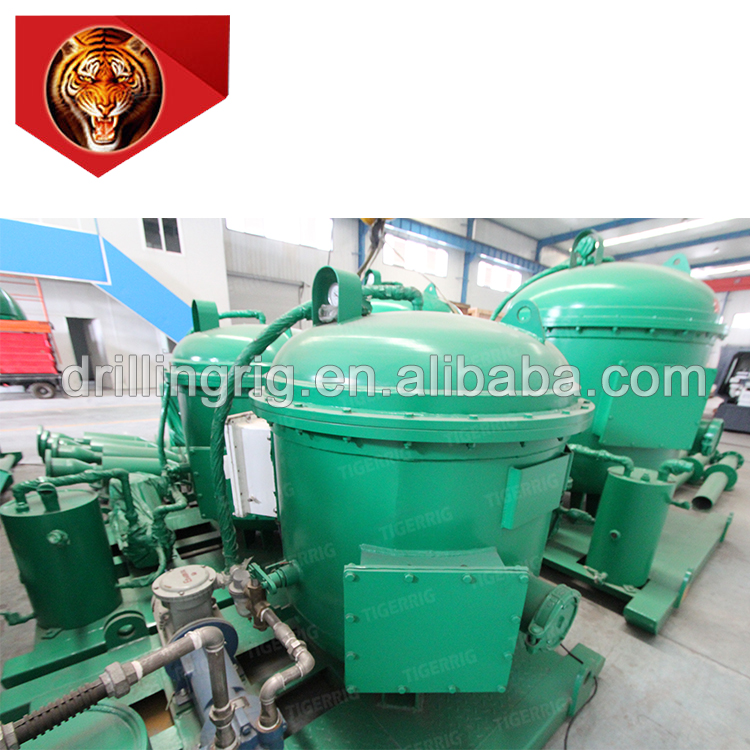

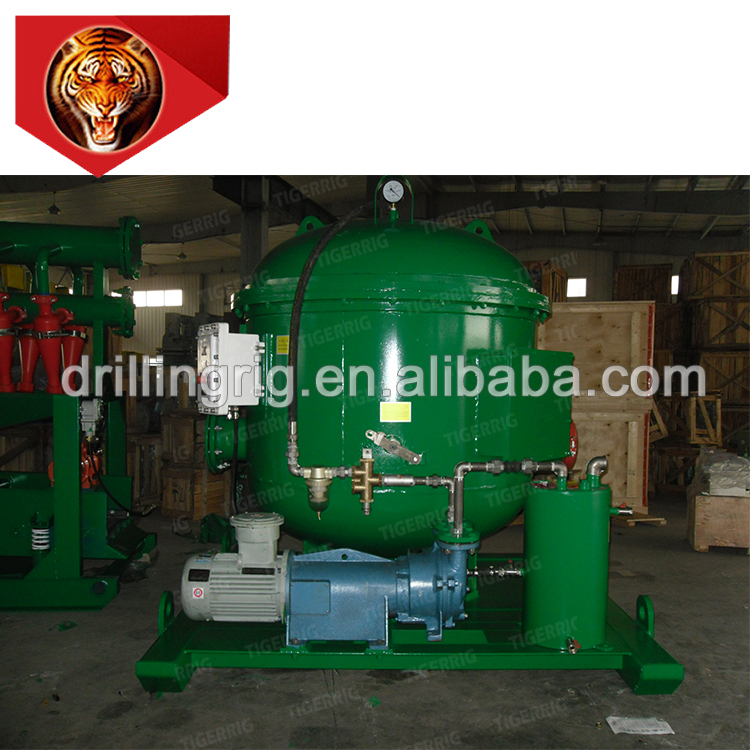

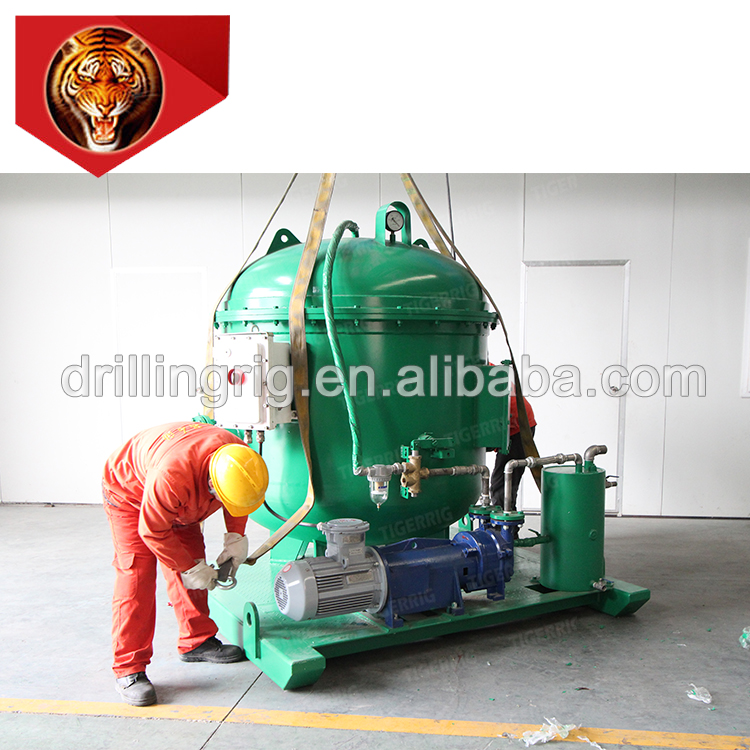

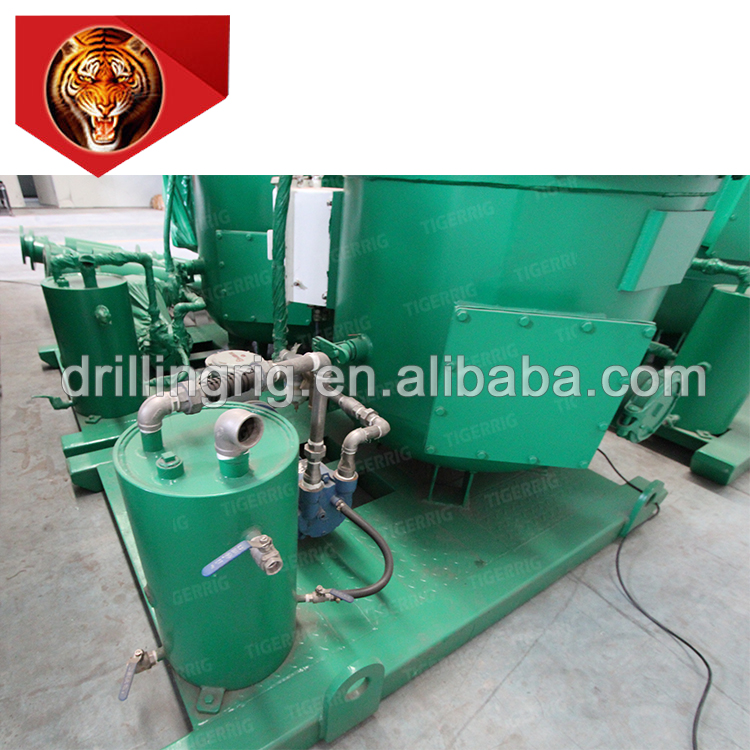

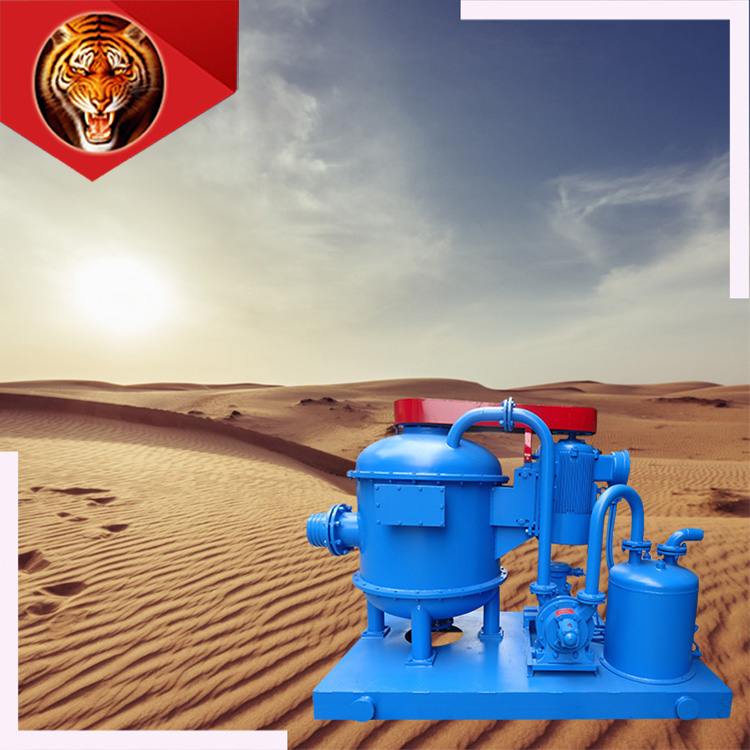

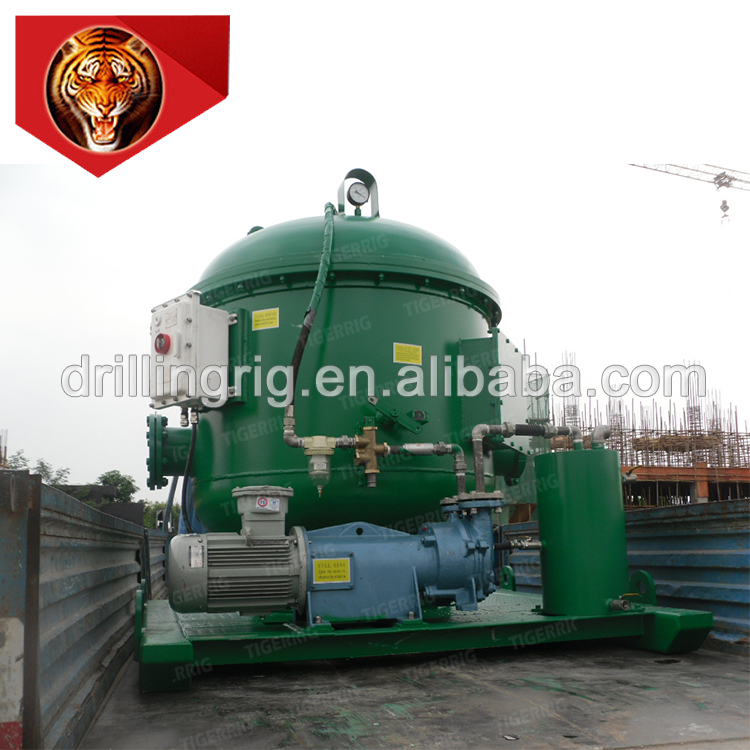

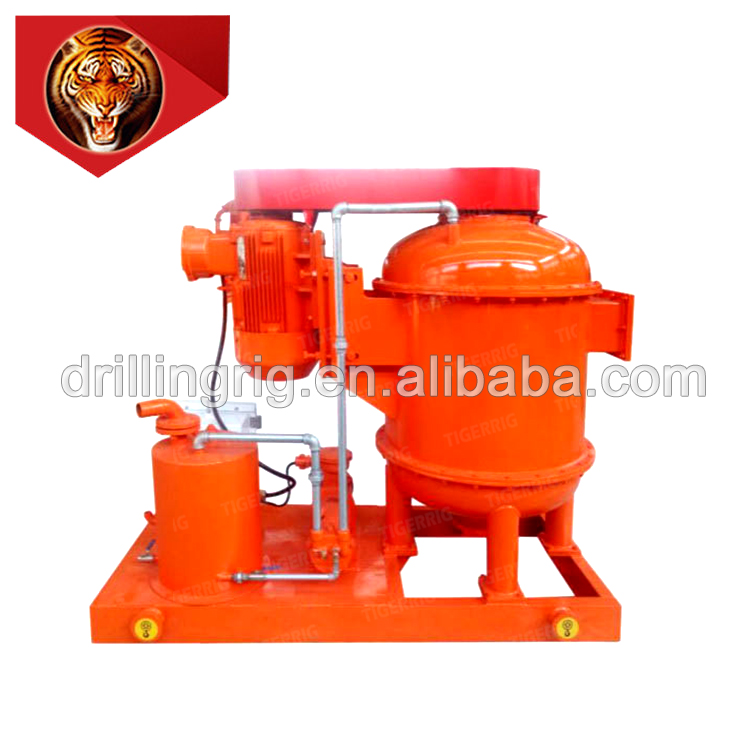

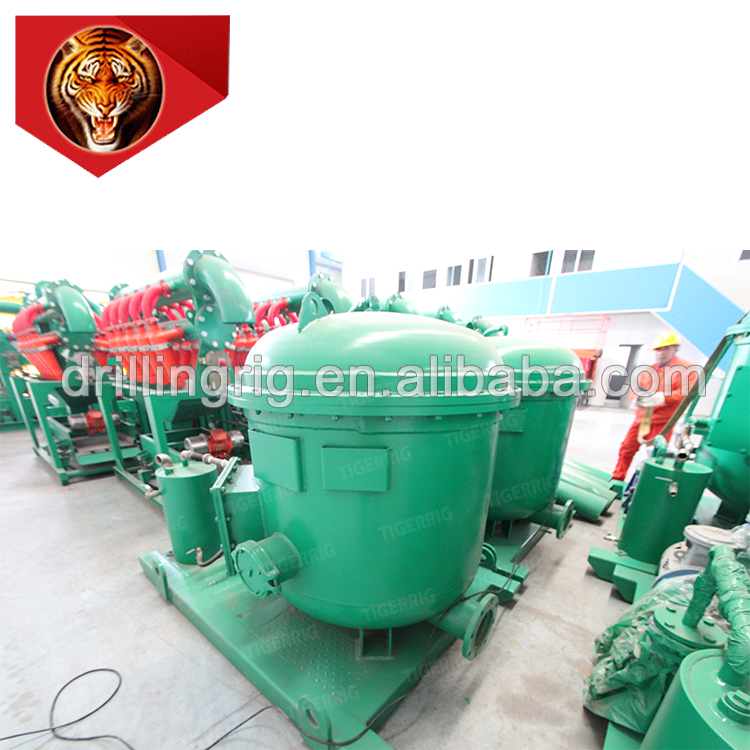

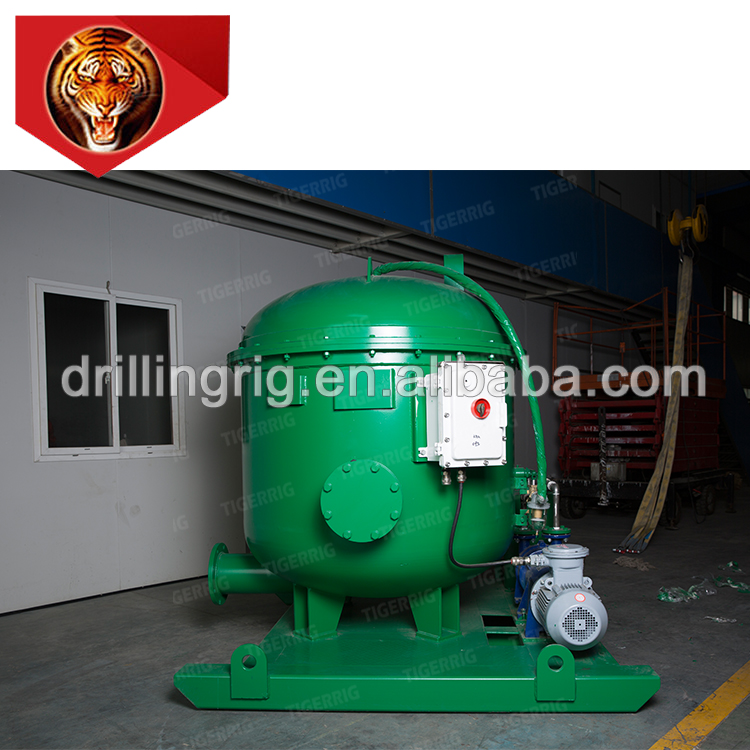

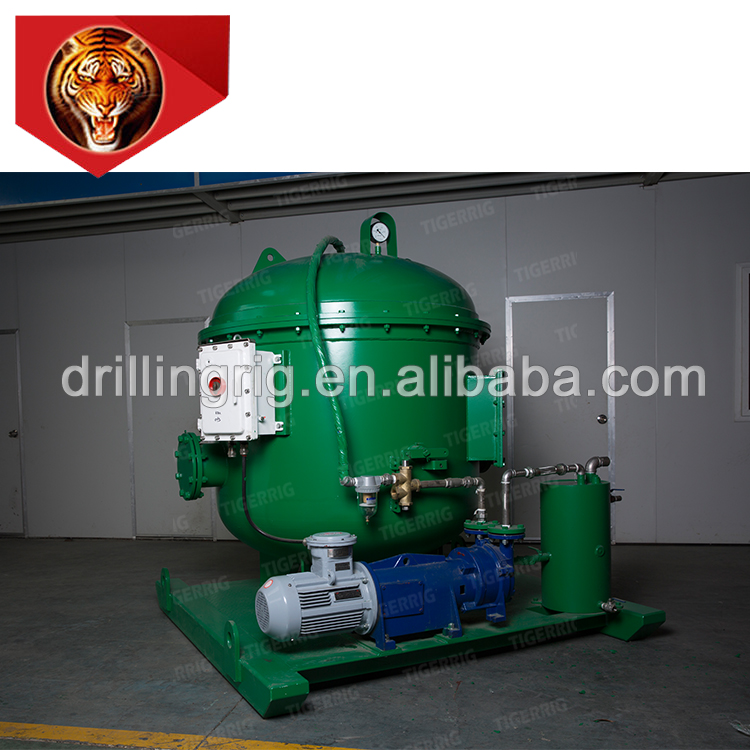

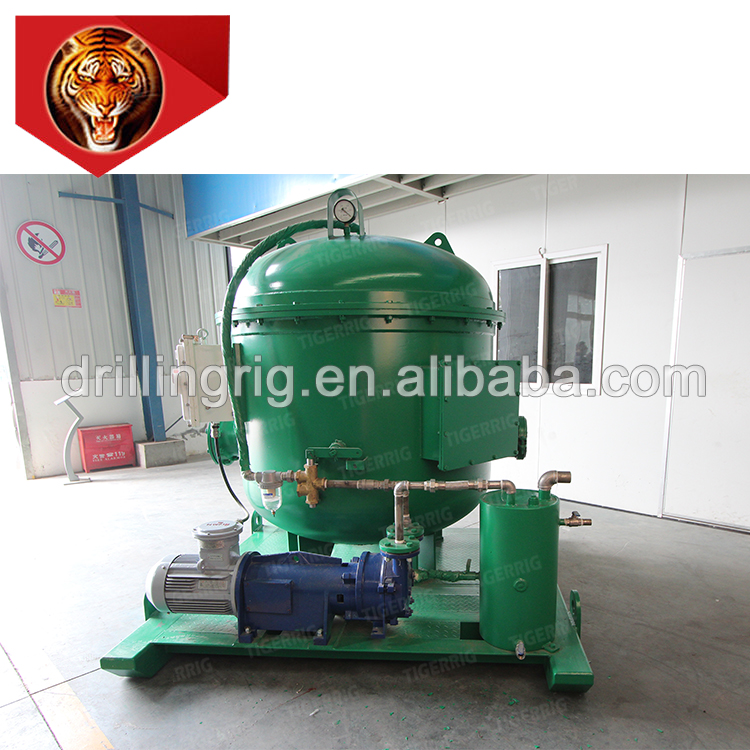

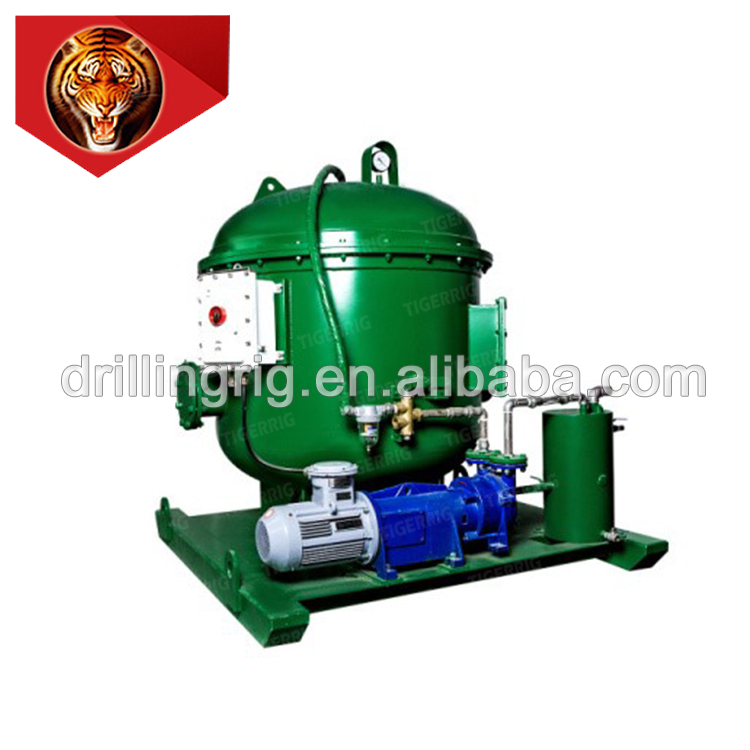

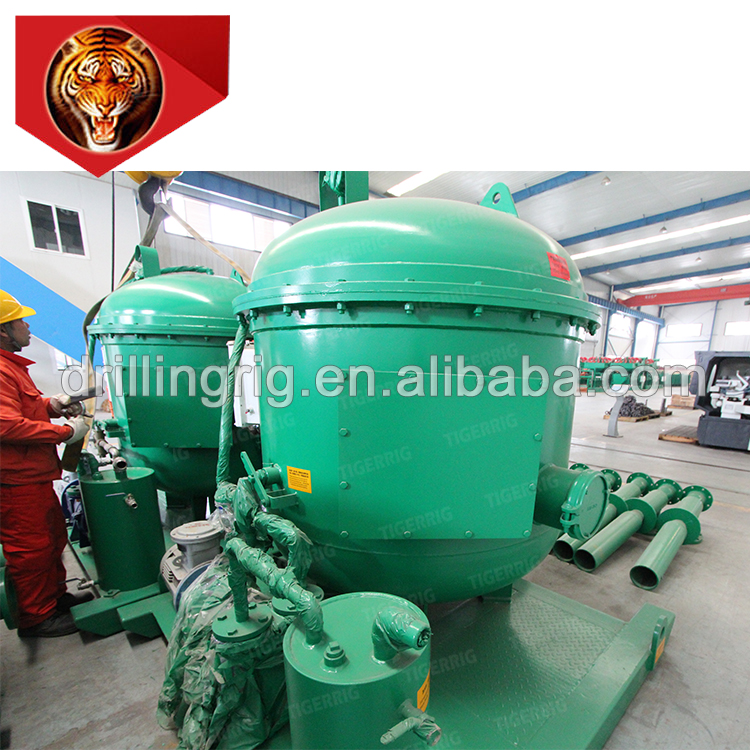

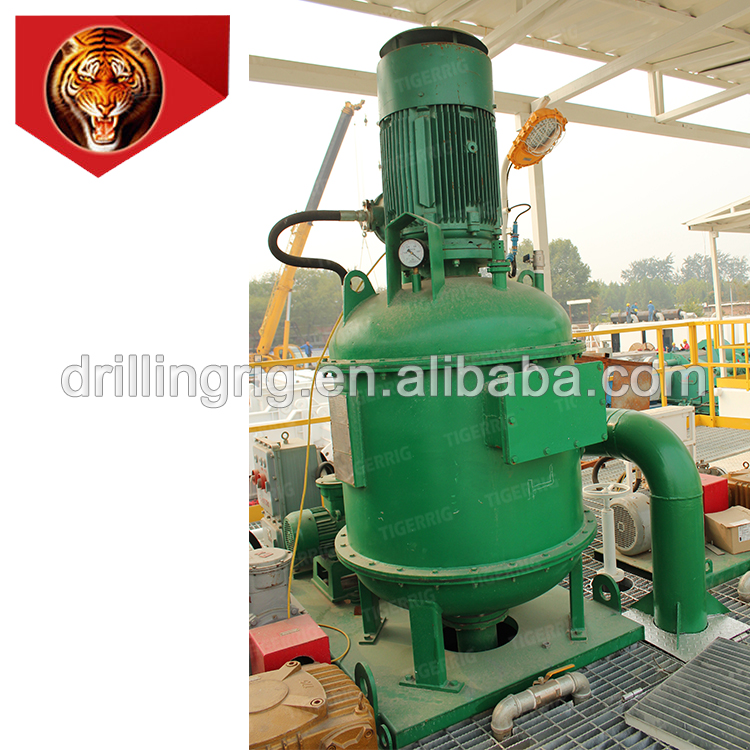

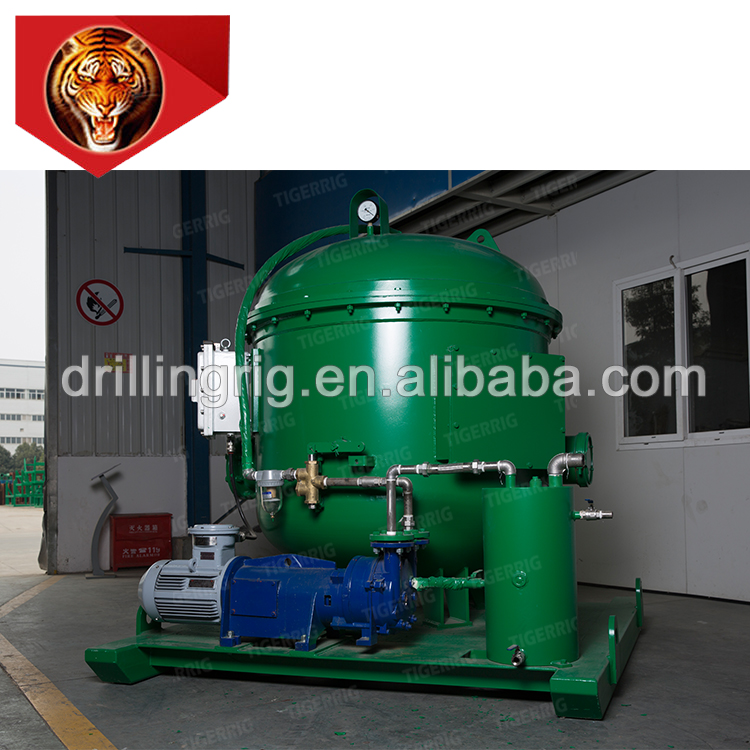

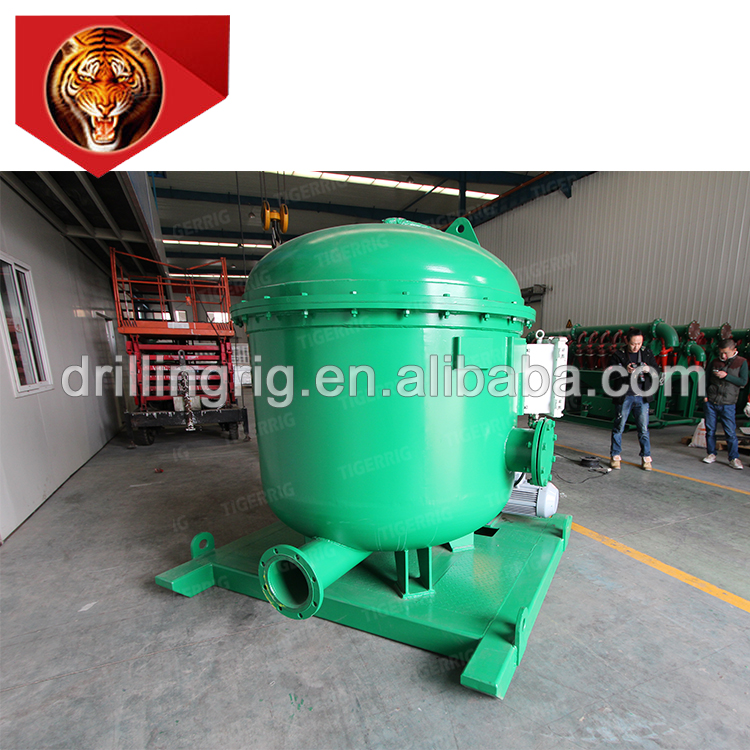

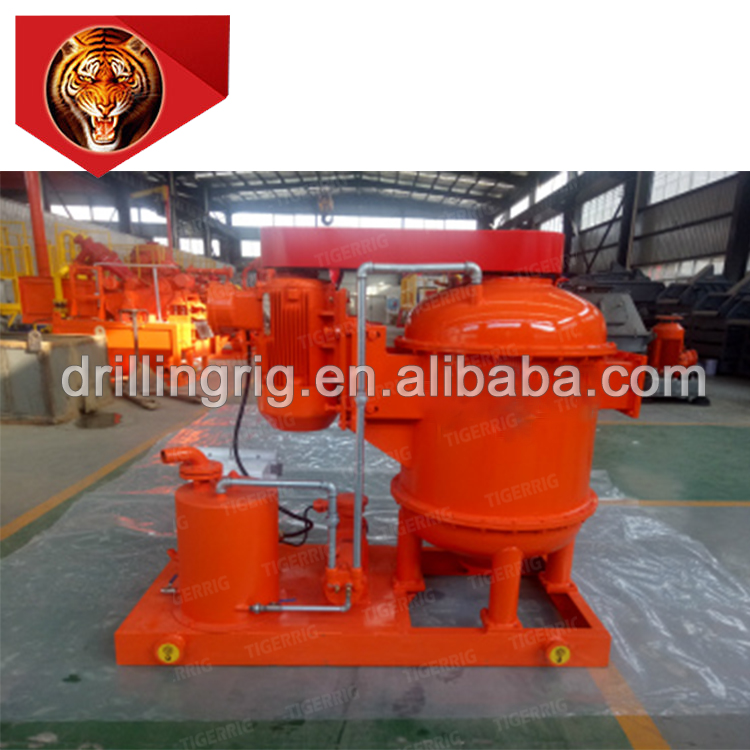

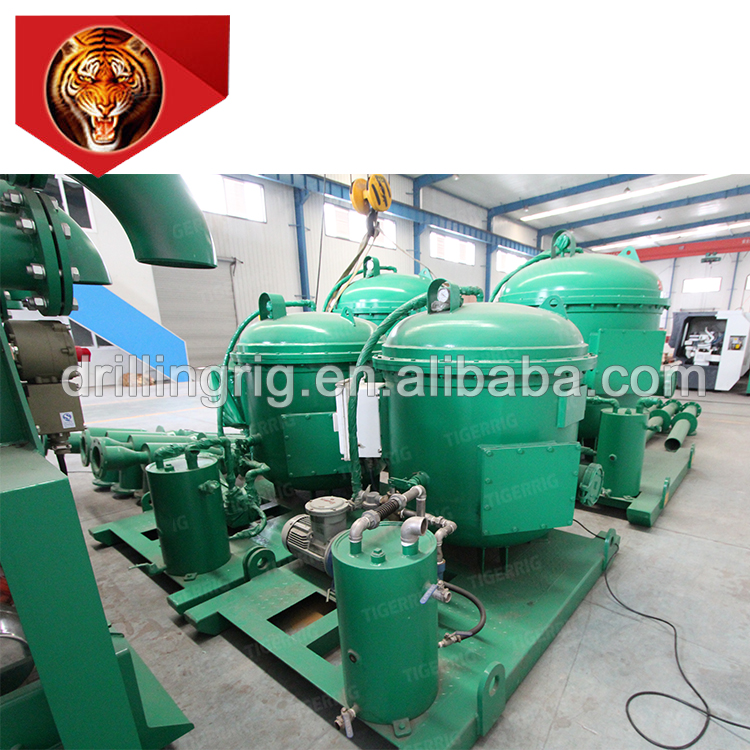

Gamboss Good Source of Materials Solid Control System Vacuum Degasser
Product information:
The Drilling Fluid Shear Pump reduces the cost of mixing polymers and clays while improving mud properties. Shearing the polymers eliminates fish eyes and prevents polymer chaining (long strings), which cannot pass through the shaker screens. The Drilling Fluid Shear Pump is available as a belt-driven or diesel-driven package including a hopper, mud gun, and transfer line orifice plate. A complete system with skid, tanks, and piping are also available.
Specifications
Model
ZCQ270B
ZCQ360B
Main diameter
920mm
Capacity
≤270 m3/h (1188GPM)
≤360 m3/h (1584GPM)
Vacuum Degree
-0.02~-0.04 Mpa
Handling Efficiency
≥95%
Main Motor Power
22Kw (30HP)
37Kw (50HP)

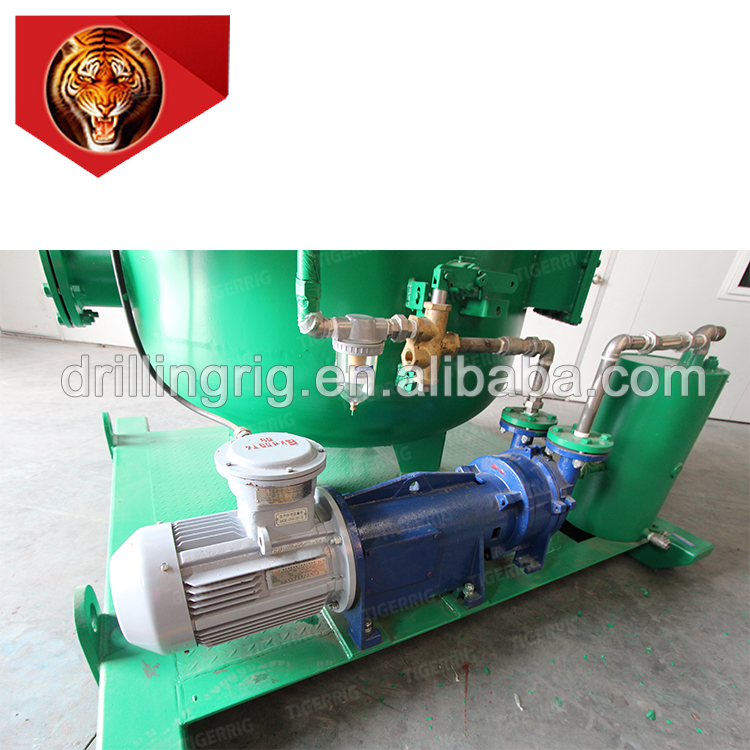

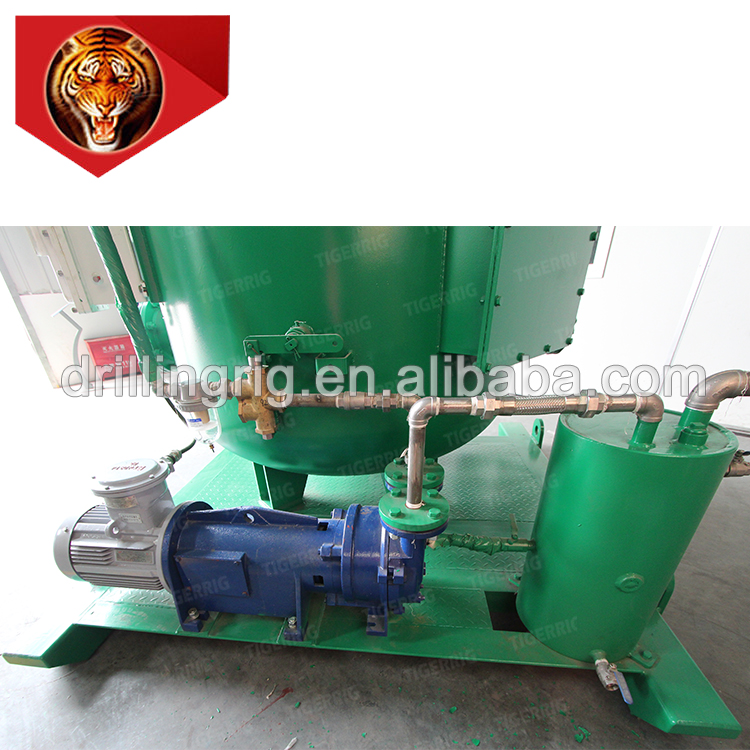

Pump Motor Power
7.5Kw (10 HP)
Rotation Speed
700RPM
860RPM
EX Standard
ExdIIBt4 / IEC EX/ ATEX
Suction Line Size
6 Inch
Output Size
8 Inch
Weight
1730kg
1870kg
Sizes (LXWXH)
2100X1605X1729mm
