Tigerrig YC170 Travelling Block

< >

Features
Specification

Tigerrig YC170 Travelling Block

Product information

Features:

Side board is thick steel plate and heavy enough to keep wireline tight during lifting and lowering for easy spooling and no-load lowing of the hook and longer wireline service life

Sheave groove subject to intermediate frequency quenching for better case hardness and longer wireline service life

Sheave is equipped with double cone roller bearing, each has independent oil passageway

Alloy steel shaft with oil port to each sheave bearing

Heavy-duty wireline guard

High strength wireline elevator

The sheave and bearing are interchangeable to those of mated crown block

Built to API 8A, have the certificate of authority to use the official API monogram

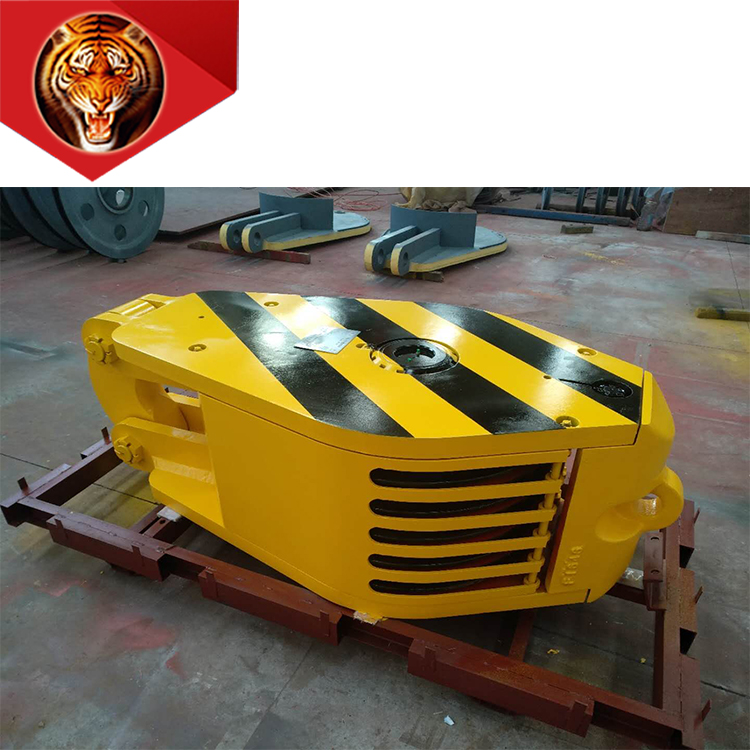

Tigerrig Travelling Block (3).jpg

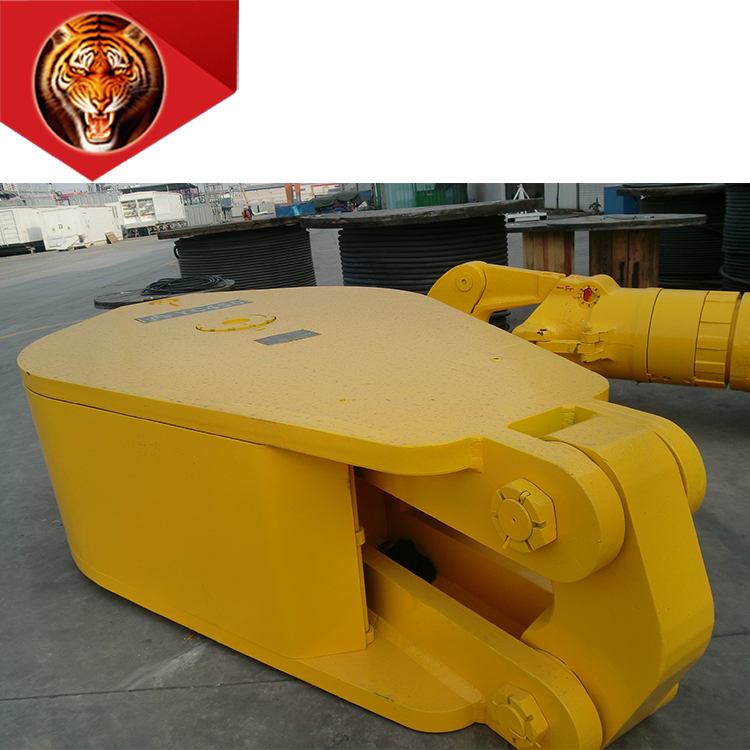

Tigerrig Travelling Block (1).jpg

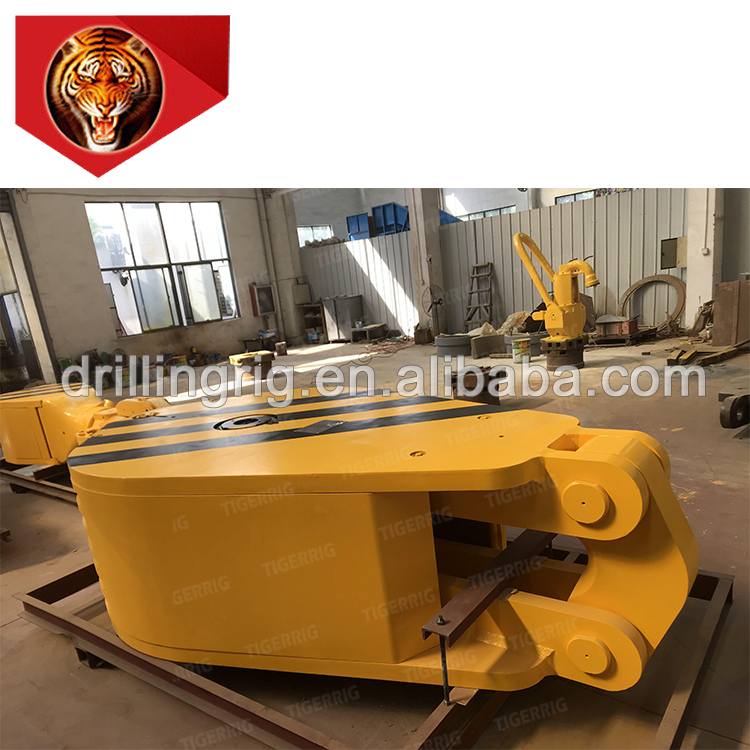

Tigerrig Travelling Block (2).jpg

Tigerrig Travelling Block (4).jpg

Tigerrig Travelling Block (5).JPG

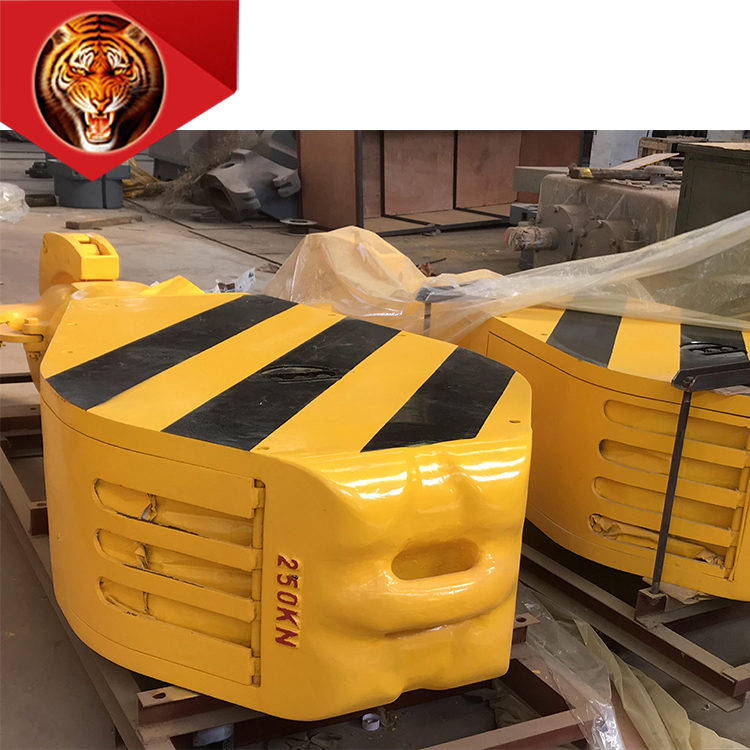

Tigerrig Travelling Block (6).JPG





Specifications

Model	YC90	YC135	YC170	YC225	YC315	YC450	YC585	YC675	YC900
Max. hook load KN	900	1350	1700	2250	3150	4500	5850	6750	9000
OD of sheave mm(in)	762 (30)	915 (36)	915 (36)	1120 (44)	1270 (50)	1524 (60)	1524 (60)	1524 (60)	1830 (72)
Qty. of sheave	4	4	5	5	6	6	7	7	7
Drill line diameter mm(in)	26 (1)	26 (1)	29 (1 1/8)	29,32 (1 1/4)	32,35 (1 3/8)	35,38 (1 1/2)	42 (1 5/8)	45	48
Dimension (L x W xH) mm	1500×806 ×533	1800×960 ×610	2000×1004 ×630	2294×1190 ×630	2580×1350 ×800	3075×1600 ×800	3100×1600 ×965	3010×1605 ×980	3740×1920 ×1280
Weight kg	1810	2200	2790	3805	6842	8135	9600	9738	18225
