Tigerrig YG225 Travelling Block Hook

< >

Features
Specification

Tigerrig YG225 Travelling Block Hook

Product information

Features:

Standard bail and double pin (male) alloy sub

The washpipe and packing are box structure, convenient to replacing on drill floor, no need to disassemble rotary hose and gooseneck.

Conform to API Spec 8A and marked with API monogram.

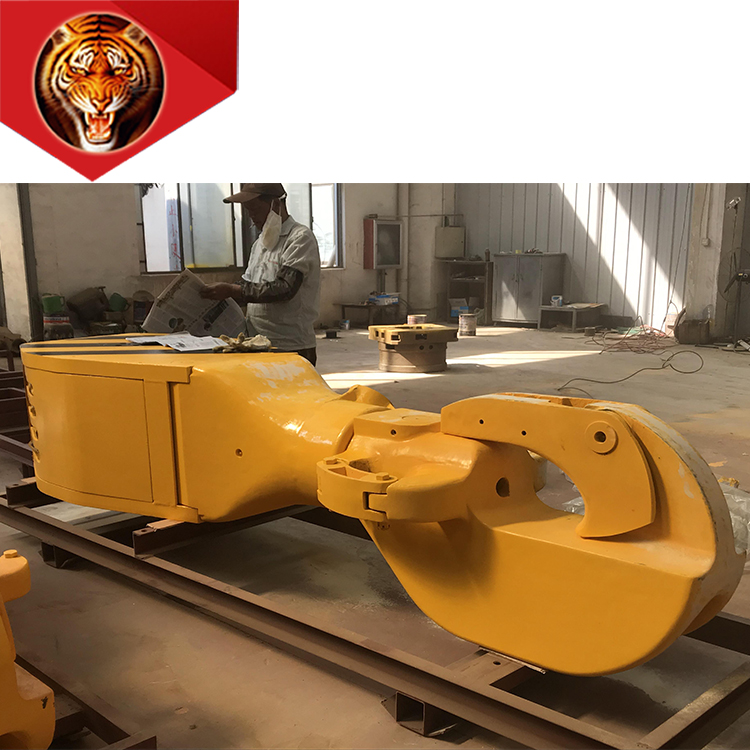

Travelling Block Hook (2).JPG

Travelling Block Hook (1).JPG

Travelling Block Hook (3).JPG

Travelling Block Hook (4).jpg

Travelling Block Hook (5).jpg

Travelling Block Hook (6).jpg





Specifications

Model	YG90	YG135	YG170	YG180	YG225	YG450
Max hook load (kn/ton)	900/100	1350/150	1700/200	1800/200	2250/250	4500/500
Pulley O.D (mm/in)	762/30	915/36	915/36	915/36	1120/44	1524/60
Pulley Qty	4	4	5	5	5	6
Wire rope dia (mm)	26	26	29	29	29	38
Wire rope dia (in)	1	1	1 1/8	1 1/8	1 1/8	1 1/2
Main hook opening size mm)	155	165	180	180	180	220
Main hook opening size (in)	6 1/16	6 1/2	7	7	7	8 5/8
Main hook dia (mm)	116	140	150	150	180	180
Main hook dia (in)	4 1/2	5 1/2	6	6	7	7
Assistant hook dia (mm)	80	90	90	90	100	120
Assistant hook dia (in)	3 1/8	3 1/2	3 1/2	3 1/2	4	4 3/4
Size (mm)	2908×806× 533	3195×960×6 16	3294×960×7 13	3402×960×7 25	3610×960×7 75	4887×1600×8 80
Size (in)	114×32×21	126×38×24	130×38×28	134×38×29	142×38×31	192×63×35
Weight (kg/lb)	2850/6280	3590/7910	4585/10108	4594/10120	6200/13657	12530/27620
