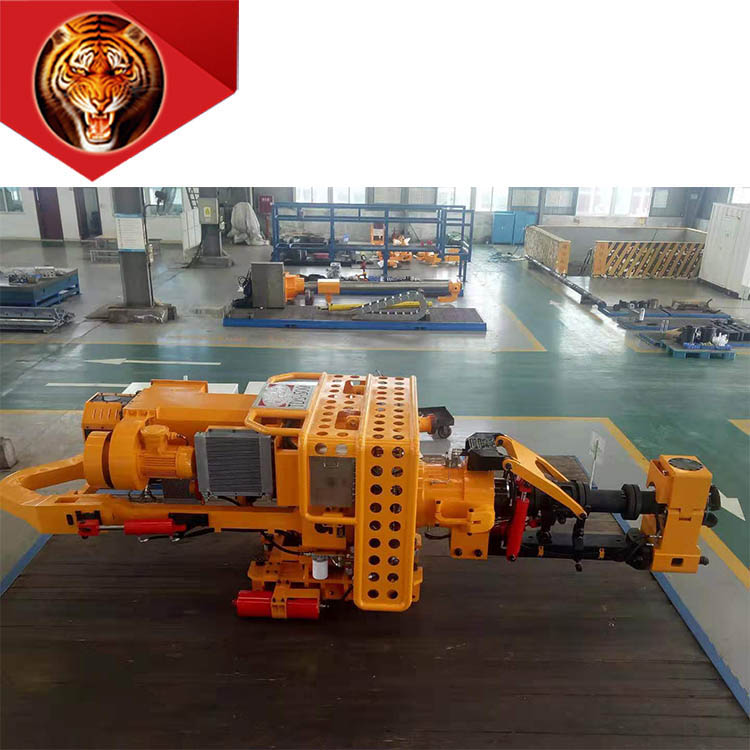

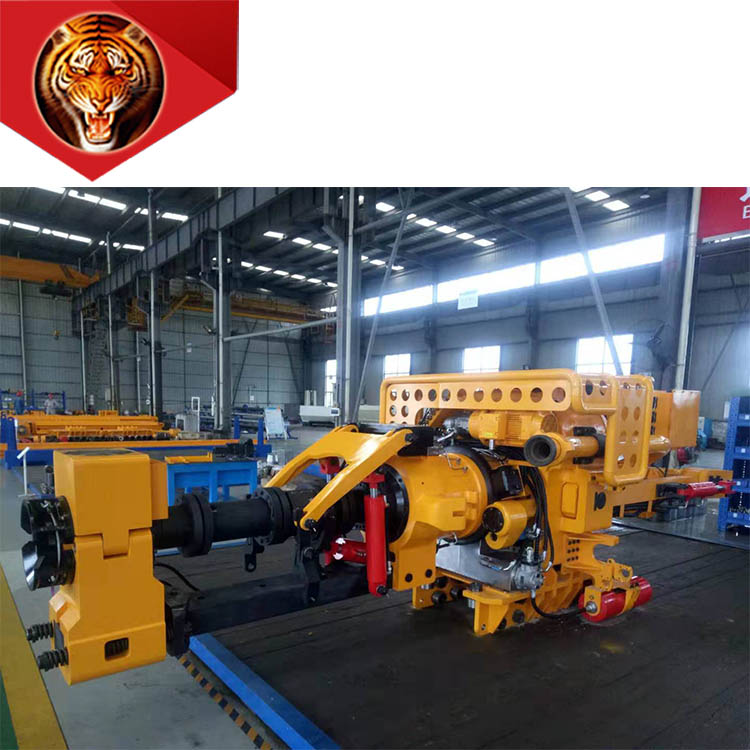

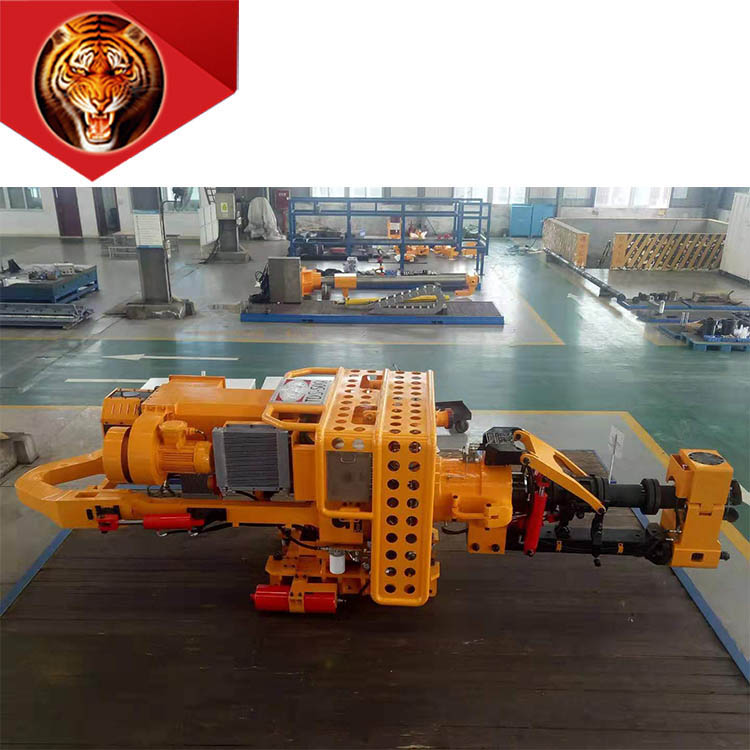

Tigerrig DQ225DBS Top Drive
Features
Eliminate mechanical transmission mechanism; main shaft driven directly by motor.
Bearing is grease lubricated, without gear lubrication oil and cooling and filtering system, reducing sealing mechanism and easy for maintenance.
Modularized in design, structure is simple hence less fault points.
Direct motor drive provides higher working torque in a short time reducing drive energy loss.
More effective cooling and radiation of complete machine (arranged with high power blower and multiple air ducts.
Specifications
Model
DQ225DBS
DQ450DBS
Q675DBS
DQ900DBS
Maximum load (API8C)
2250kN
4500kN
6750kN
9000kN
Rotation speed range
0-220 r/min
Working torque
25000 N.m
45000 N.m
70000 N.m
90000 N.m
Maximum make-up/break-out torque
75000 N.m
125000 N.m
135000 N.m
Braking torque
35000 N.m
50000 N.m
Motor power rating
288kW
580kW
900 kW
1130 kW
Top drive weight
12.3 T
15.85 T
18.5 T
20.1 T
Top drive outline (length x width x height)mm
5300×1990 ×1850
5700×2180 ×2090
6700×2720 ×2370
7100×2720×2370
