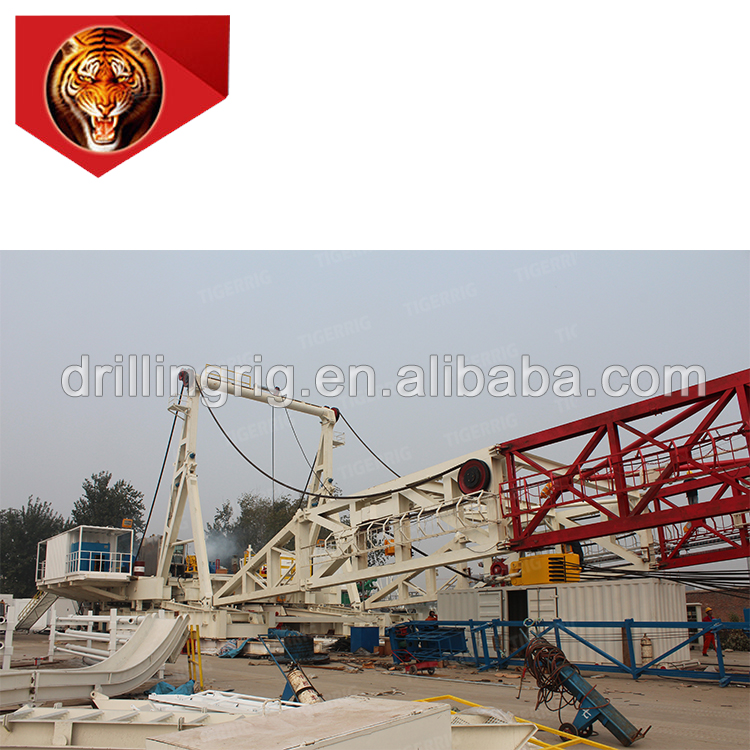

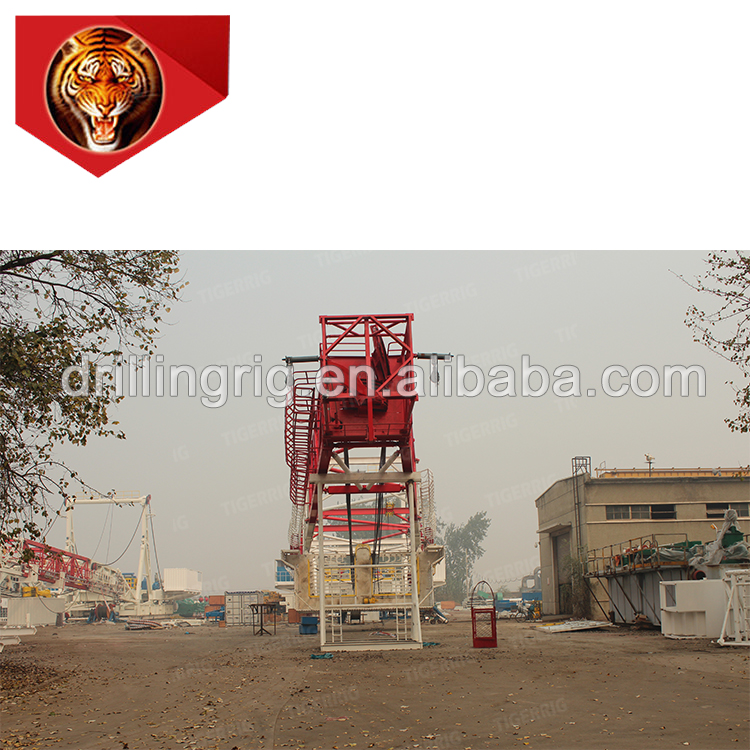

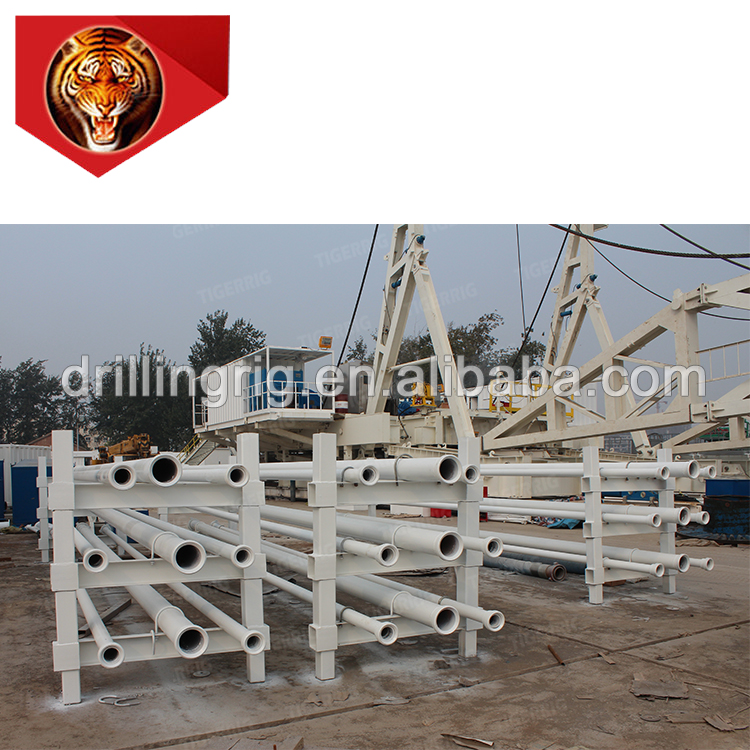

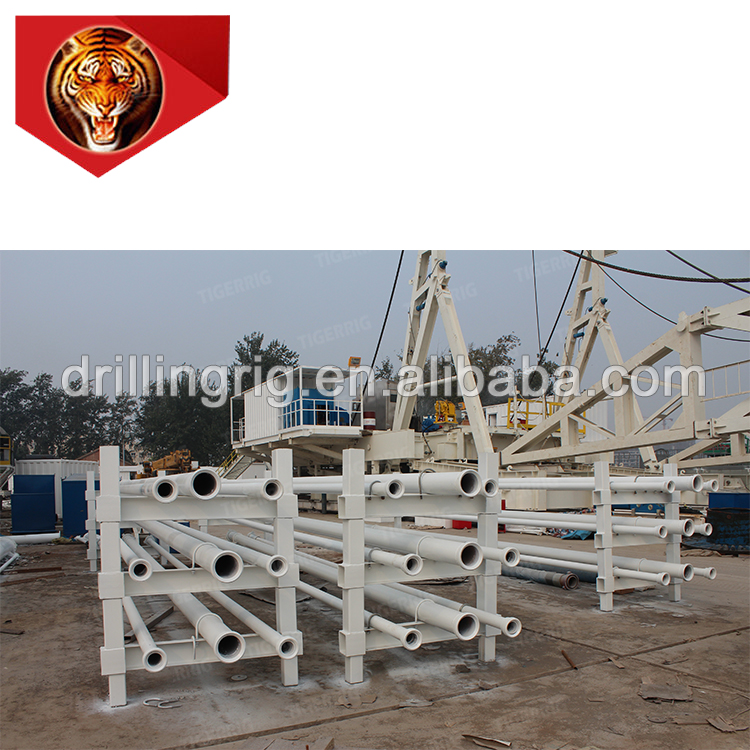

Tiger rig manufacture long work wife 30DBS drilling rig
Major features
1.Adopts integrated design of mechanical, electrical, hydraulic, pneumatic and digital control, utilizes fully the advantages of advanced digital control AC VF electric transmission, and simplifies its mechanical structure.
2.As adopting of slingshot type substructure, drill floor equipment’s and driller cabin etc. realize low-position installation and integer lifting.
3.Electric transmission adopts vector VF drive system to realize all digital operation and control, and processes elementary functions of automation, intelligence and information to realize collection (signal), display, restoration, printing, remote monitoring and management of control and drilling parameters.
4.Using VF technology, DW realizes max torque output when its speed is zero to ensure the suspension function of rig lifting system, which change traditional driller operation mode completely.
5.This rig is equipped with an integral driller's cabin, in which a driller can finish major operations.
Specifications
Model
ZJ30DB
ZJ40DBS
ZJ50DBS
ZJ70DBS
ZJ90DBS
Nominaldepth
m (ft)
114mm(4 1/2 in.)
DP
1600～3000
(5250～9850)
2500～4000
(8200～13200)
3500～5000
(11500～16400)
4500～7000
(14800～23000)
6000～9000
(19700～30000)
127mm (5 in.)
1500～2500
(4920～8200)
2000～3200
(6600～10500)
2800～4500
(9200～14800)
4000～6000
(13100～19700)
5000～8000
(16400～26250)
M x. load of drilling string
K (kips)
1700 (38 )
2250 (496)
3150 (695)
4500 (992)
6750(1518)
M x. line number strung
5×6
6×7
7×8
Dia. of drilling line mm (in)
29 (1 1/ )
32 (1 1/4)
35 (1 3/8)
38 (1 1/2)
42 (1 /4)
Dia of traveling sheave mm
(in)
1005 (40)
1120 (44)
1270 (50)
1524 (60)
1524 ( 0)
Center pipe dia. of swivel mm
75 (3)
Rated input power of DW kW
(h )
550 (750)
735(1000)
1000(134 )
1470 (2000)
2210(3000)
Shifting number of DW
Stepless change
Type of main brake
Disk/Band
Disk/Ban
Type of auxiliary brake
E.T. N Eddy /Eaton
E.T. N Eddy/Eaton
Opening of RT mm (in)
520.7 (20 /2)
698.5 (27 1/2)
952.5
(371/2)
952.5 (37 1/2)
1257.3 (4 1/2)
Shifting number of RT
2 Step less
change
2Step less
2 Step less change
Power per MP kW (hp)
735 (100 )
956 (1300)
1180 (1600)
1640 (2 00)
Number of MP
1
2
2, 3
3
Mast effective height m (ft)
41 (134)
43 (142)
45 (147)
46 (152)
Drill floor height m (ft)
6 (19.7),
7.5 (25)
9 (30), 10.5
(35)
9 (30), 10.5 (35)
12 (4 )
Drill floor clearance m (ft)
4.7 (15.6),
6.26 (20.5)
7.62 (25),
9.12 (30)
7.62 (25), 9.12 (30)
10(33. 3)
Noted-- AC VF drive Drilling Rig
