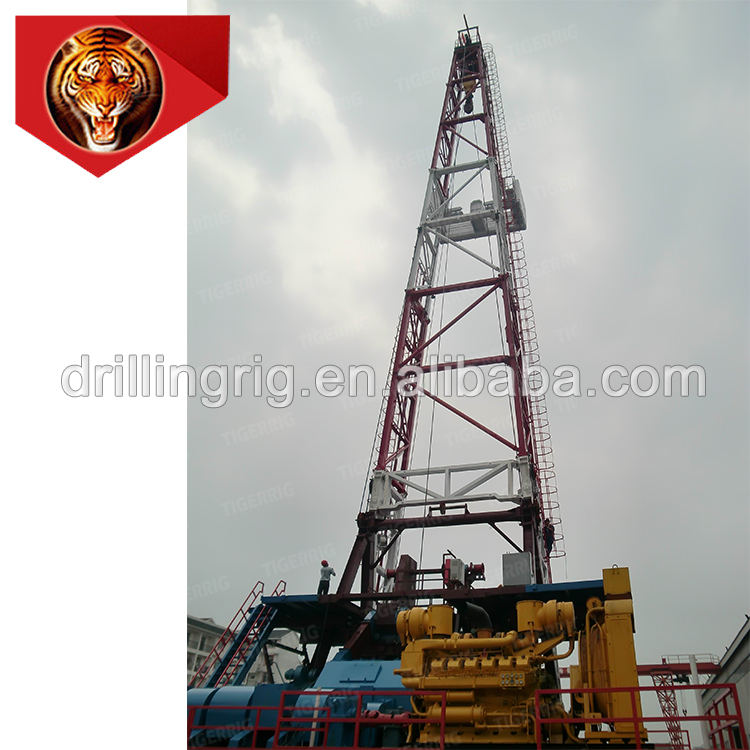

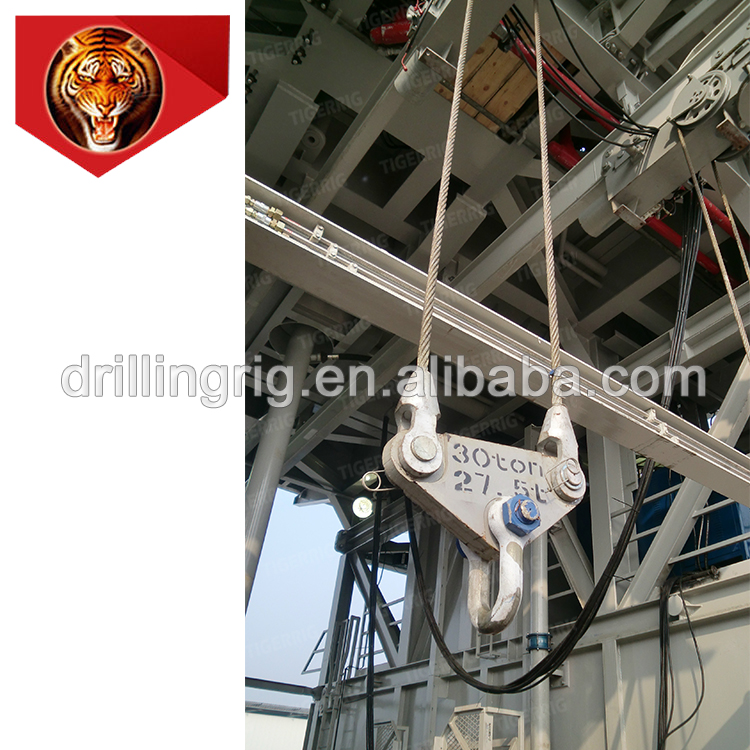

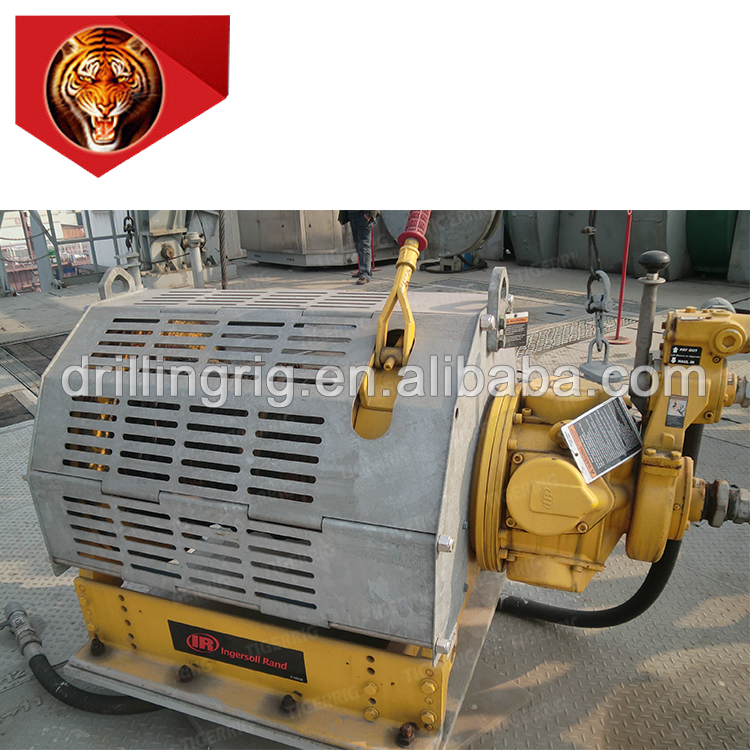

Tiger rig excellent performance ZJ30D drilling rig
Major features
1.DW, RT and mud pump realize independent DC stepless speed regulation which provide guarantee for drilling technology optimization.

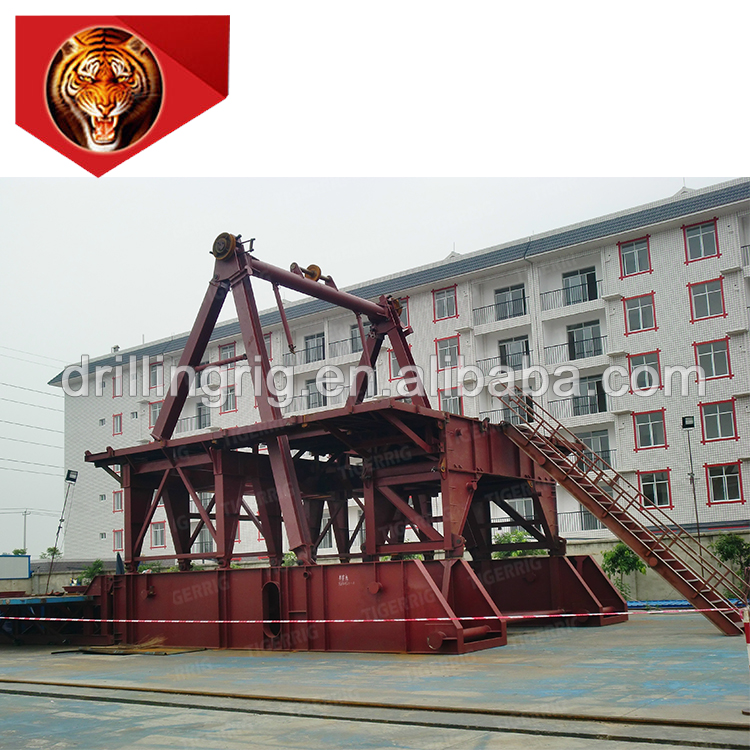

2.Mast, substructure and drill floor equipments can be installed at lower position, and then be lifted integrally upon DW power.
3.Auto-bit-feeding adopts all-digital auto control technique, driller operates the touch screen to fulfill drilling operation through optimized drilling parameters, which will reduce labor intensity significantly and improve work efficiency. Display, restoration, regulation and control, remote management of major drilling parameters can be realized.
Specifications
Model
ZJ30D
ZJ40D
ZJ50D
ZJ70D
ZJ90D
Nominal depth
m (ft)
114mm(4 1/2 in.) DP
1600～3000 (5250～9850)
2500～4000 (8200～13200)
3500～5000 (11500～16400)
4500～7000 (14800～23000)
6000～9000 (19700～30000)
127mm(5 in.) DP
1500～2500 (4920～8200)
2000～3200 (6600～10500)
2800～4500 (9200～14800)
4000～6000 (13100～19700)
5000～8000 (16400～26250)
Max. load of drilling string KN (kips)
1700(382)
2250〔496〕
3150〔695〕
4500〔992〕
6750〔1752〕
Max. line number strung
5×6
6×7
7×8
Dia. of drilling line mm (in)
29(1 1/8)
32 (1 1/4)
35 (1 3/8)
38(1 1/2)
45 (1 3/4)
Dia. of traveling sheave mm (in)
1005(40)
1120 (44)
1270 (50)
1524(60)
1524 (60)
Center pipe dia. of swivel mm (in)
75 (3)
Rated input power of DW kW(hp)
550(750)
735 (1000)
1100 (1500)
1470(2000)
2210(3000)
Shifting number of DW
4 Stepless change
Type of main brake
Disk/Band
Type of auxiliary brake
E.T. N Eddy/Eaton
E.T.N Eddy/Eaton
Opening of RT mm (in)
520.7 (20 1/2)
698.5 (27 1/2)
952.5 (37 1/2)
952.5(37 1/2)
Shifting number of RT
2 Stepless change

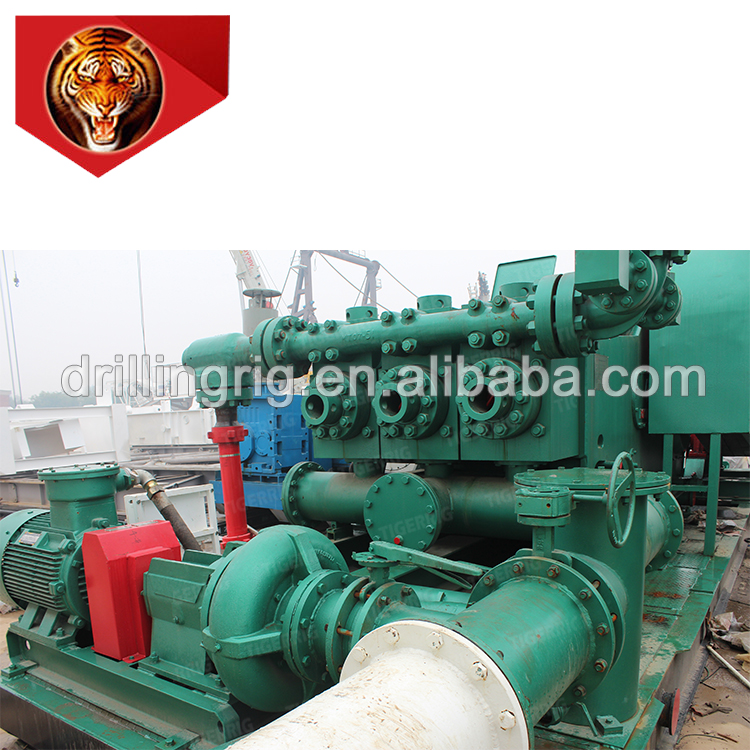

Power per MP kW (hp)
735(1000)
956(1300)
1180 (1600)
1640(2200)
1180(1600)
Number of MP
1
2
2/3
3
Mast effective height m (ft)
41(134)
43 (142)
45 (147)
45(147)
48(157)
Drill floor height m (ft)
7.5(25)
10.5 (35)
12 (40)
Drill floor clearance m (ft)
6.26(20.5)
9.12 (30)
12(39.4)
