Tigerrig 60yr manufacture experience API ZJ50L drilling rig

< >

Features
Specification

Tigerrig 60yr manufacture experience API ZJ50L drilling rig

Major features

1.K type mast is made of H steel, and has the advantages of wide eyeshot and convenient transportation.

2.The substructure is Block package type; while drawworks and mast adopt low-position installation and being lifted upon drawworks power.

3.Drawworks is a seal type chain transmission drawworks which has 4 forward gears+2 reverse gears (or 6 forward gears+2 reverse gears), and it equips auxiliary drive device for mast lifting and emergency lifting.

4.Between each part of rig transmission system adopt cardan shaft connection, which is convenient to install and disassemble.

5.Overall layout of the rig is reasonable, while its modularization can meet the requirements of integrally lifting, train and truck transportation.

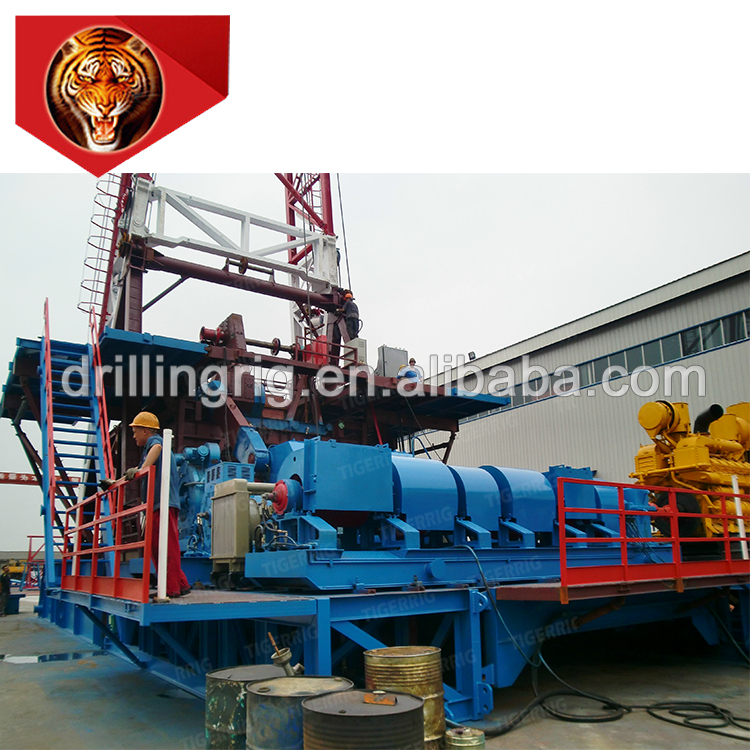

Tigerrig Mechanical Rig (14) - 副本.JPG

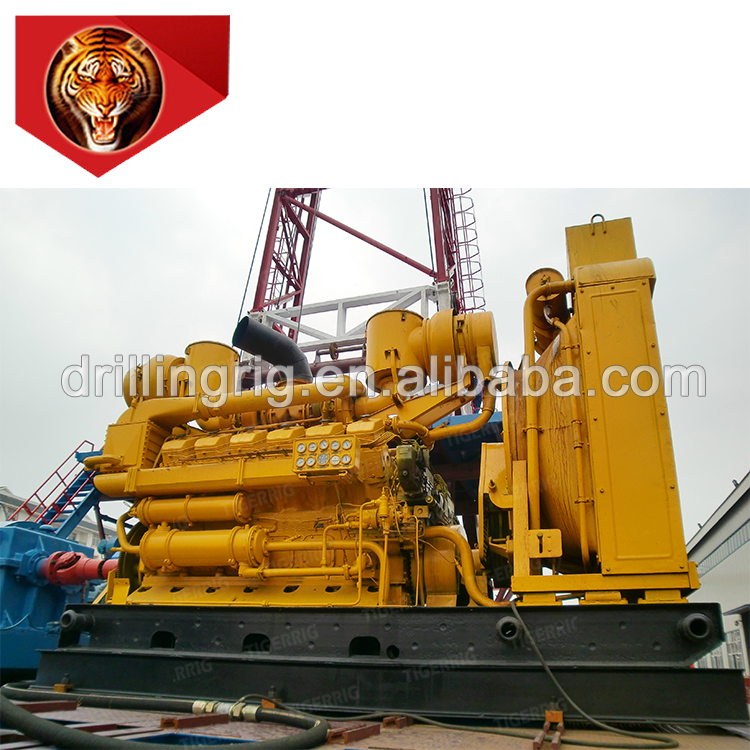

Tigerrig Mechanical Rig (16) - 副本.JPG

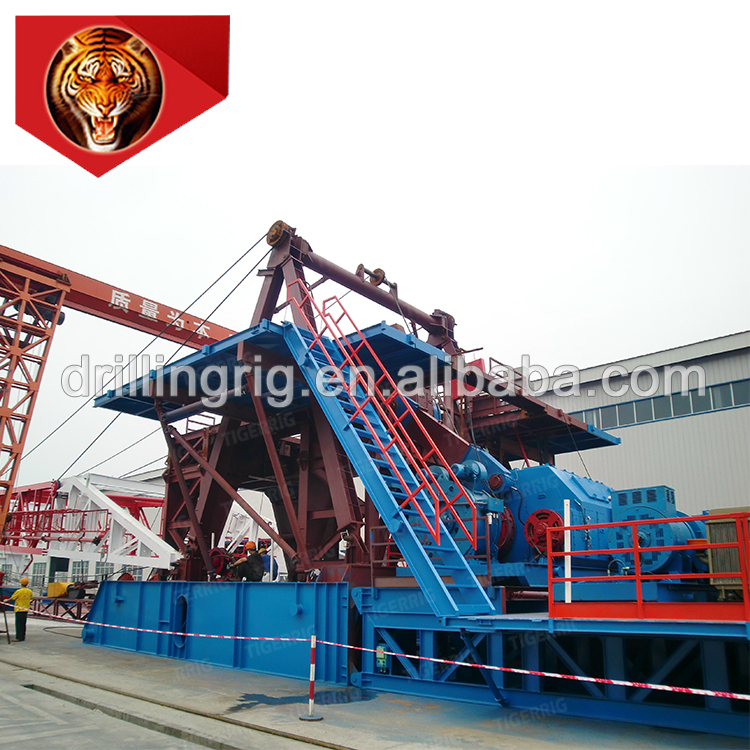

Tigerrig Mechanical Rig (18) - 副本.JPG

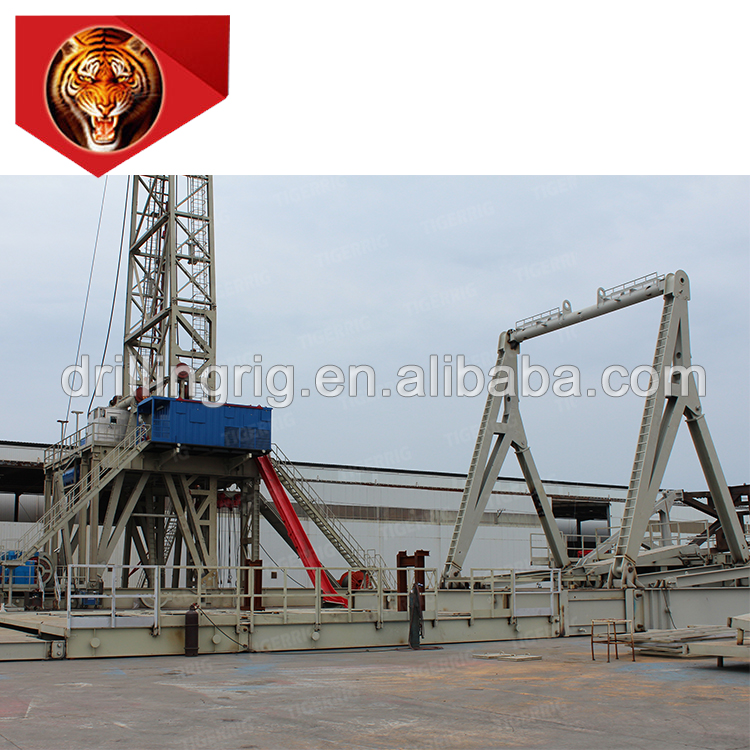

Tigerrig Mechanical Rig (14).JPG

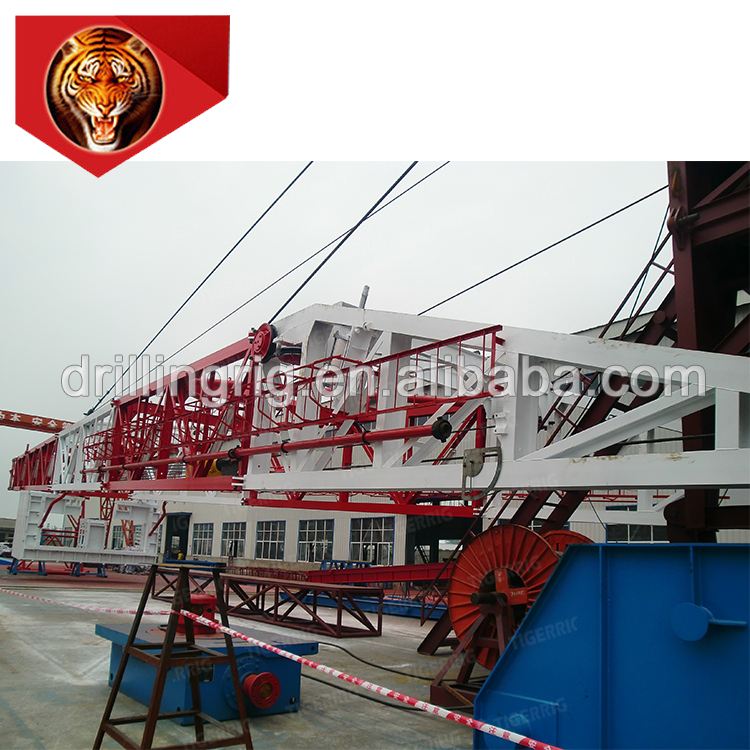

Tigerrig Mechanical Rig (13) - 副本.JPG

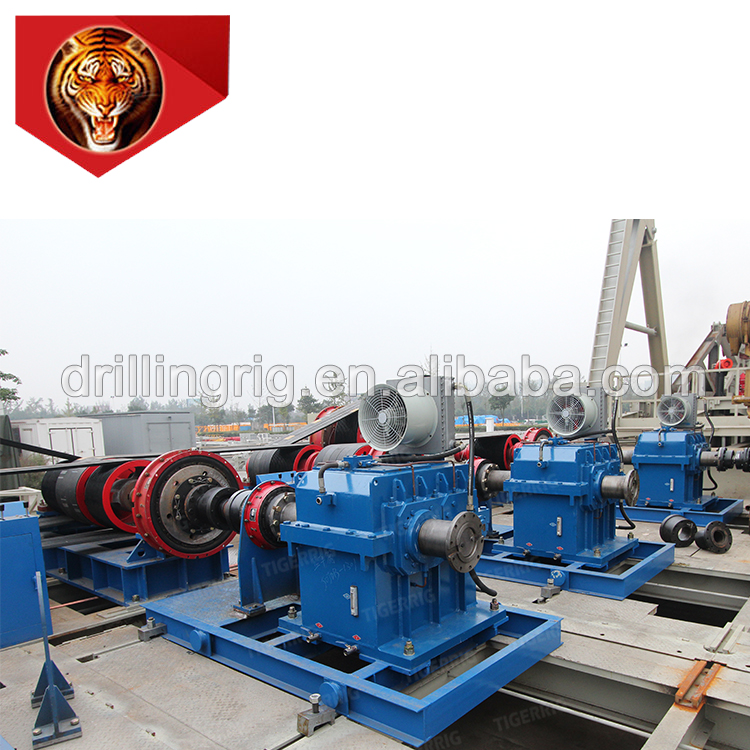

Tigerrig Mechanical Rig (15) - 副本.jpg

Tigerrig Mechanical Rig (17) - 副本.JPG

Tigerrig Mechanical Rig (15).jpg

Specifications

Model		ZJ30L	ZJ40L	ZJ50L	ZJ70L
Nominal depth m (ft)	114mm(4 1/2 in.) DP	1600～3000 (5250～9850)	2500～4000 (8200～13200)	3500～5000 (11500～16400)	4500～7000 (14800～23000)
Nominal depth m (ft)	127mm(5 in.) DP	1500～2500 (4920～8200)	2000～3200 (6600～10500)	2800～4500 (9200～14800)	4000～6000 (13100～19700)
Max. load of drilling string KN (kips)		1700(382)	2250〔496〕	3150〔695〕	4500〔1012〕
Max. line number strung		5×6	5×6	6×7	6×7
Dia. of drilling line mm (in)		29(1 1/8)	32 (1 1/4)	35 (1 3/8)	38 (1 1/2)
Dia. of traveling sheave mm (in)		1005(40)	1120 (44)	1270 (50)	1524 (60)
Center pipe dia. of swivel mm (in)		75 (3)	75 (3)	75 (3)	75 (3)
Rated input power of DW kW(hp)		550(750)	735 (1000)	1100 (1500)	1470 (2000)
Shifting number of DW		4 forward+2 reverse	4 forward+2 reverse	4 forward+2 reverse	4forward+2reverse
Type of main brake		Disk/Band	Disk/Band	Disk/Band	Disk/Band
Type of auxiliary brake		E.T. N Eddy/Eaton	E.T. N Eddy/Eaton	E.T. N Eddy/Eaton	E.T. N Eddy/Eaton
Opening of RT mm (in)		520.7(20 1/2)	698.5 (27 1/2)	952.5 (37 1/2)	952.5 ( 37 1/2)
Shifting number of RT		4 forward+2 reverse	4 forward+2 reverse	4 forward+2 reverse	4forward+2reverse
Power per MP kW (hp)		735(1000)	956 (1300)	1180 (1600)	1180 (1600)
Number of MP		2	3	3	3
Power of engine kW(hp)		810(1100)	810(1100)	1100(1500)	1100(1360)
Number of engines		2	3	3	3
Mast effective height m (ft)		41(134)	43 (142)	45 (147 )	45 (147 )
Drill floor height m (ft)		5(16.4),6(19.7), 7.5(25)	5(16.4),6(19.7),7.5(25)	7.5(25),9(30), 10.5 (35)	7.5(25),9(30), 10.5 (35)
Drill floor clearance m (ft)		3.76(12.4),4.76 (15.6),6.26(20.5)	3.76(12.4),4.76 (15.6),6.26(20.5)	6.12(20),7.62 (25),9.12 (30)	6.12(20),7.62 (25),9.12 (30)
