Tigerrig direct manufacturer supply direct drive permanent magnet motor for drawwork
Company Information
Zhong hang Machinery Co. Ltd., as a leader in electric motor industry, specializes in designing and manufacturing Permanent Magnet (PM) Motors since 2002.Tiger Electric Motor as "China Top 100 Innovation SME Enterprise" has 13 national patents for PM motors. Base on Tiger Electric Motor's unique, advanced and experienced design and manufacture ability, Tiger Electric Motor is the first company who successfully apply high torque PM Motors into Oil Industry in worldwide!
Product introduction
Direct Drive Permanent Magnet (DDPM) Motor provides a brand new solution to Machine Drive Systems. The DDPM Motor is a VFD drive synchronous motor, and it has "low speed, high torque" features. The DDPM Motor's torque can be up to 600,000 N·m, the rated frequency and speed can be low as 0.2 Hz and 0.6 rpm, this allow the motor directly driven load by eliminating the gearbox and any other transmission system. The DDPM Motor has up to 97.8% efficiency and 0.99 power factor, comprehensive energy saving ability is 15-30% and 20% smaller size and weight compared with conventional drive systems. Tiger Electric Motor's DDPM Motor product lines have specified applied in the Oil, Agitator, Mill, Pump Industry, and we are flexible to design and manufacture DDPM motor in any application for our customers.

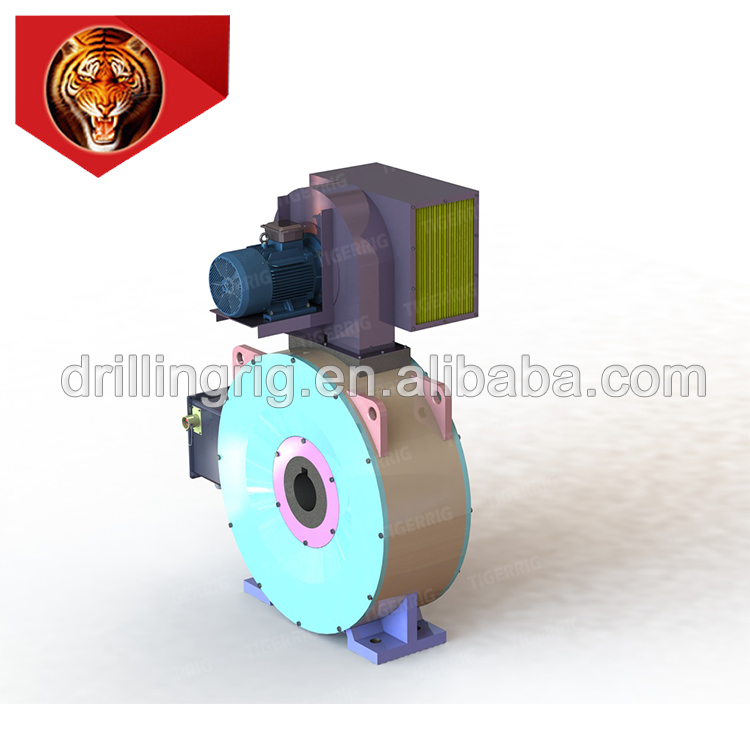

Introduction to the DDPM Motor for the Drawworks

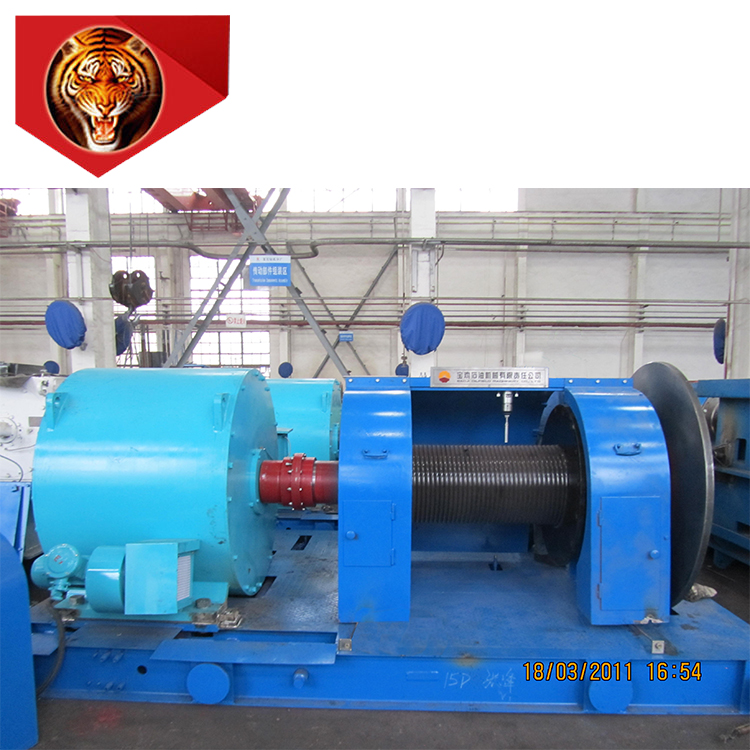

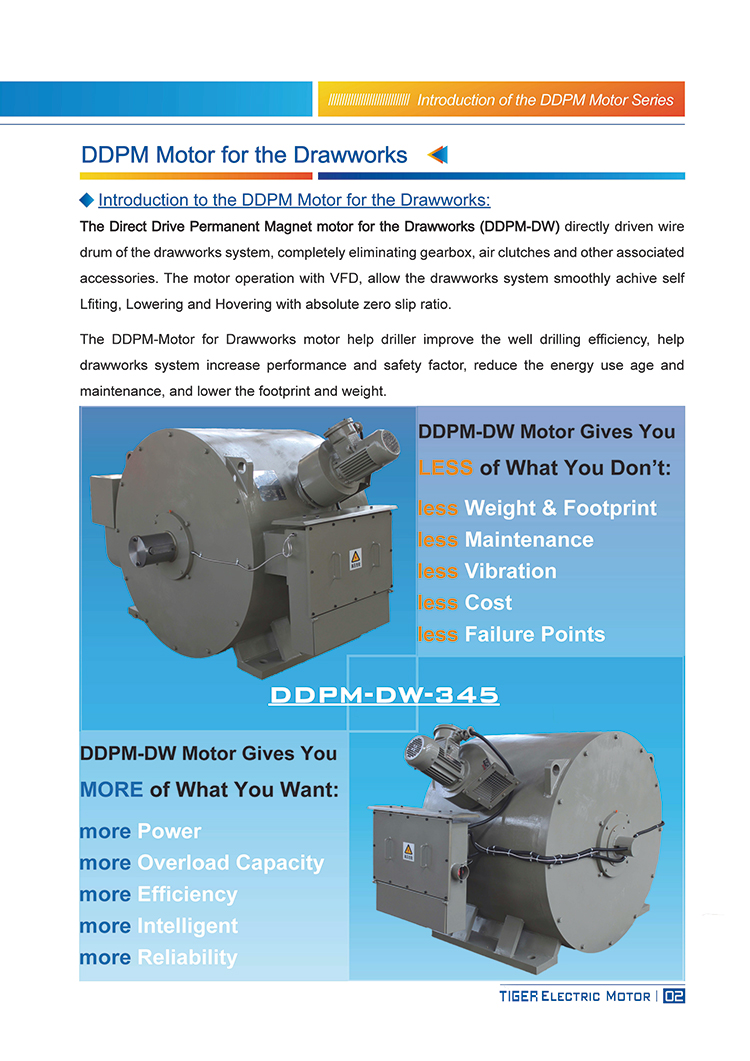

The Direct Drive Permanent Magnet motor for the Drawworks (DDPM-DW) directly driven wire drum of the drawworks system, completely eliminating gearbox, air clutches and other associated accessories. The motor operation with VFD, allow the drawworks system smoothly achive self Lfiting, Lowering and Hovering with absolute zero slip ratio.

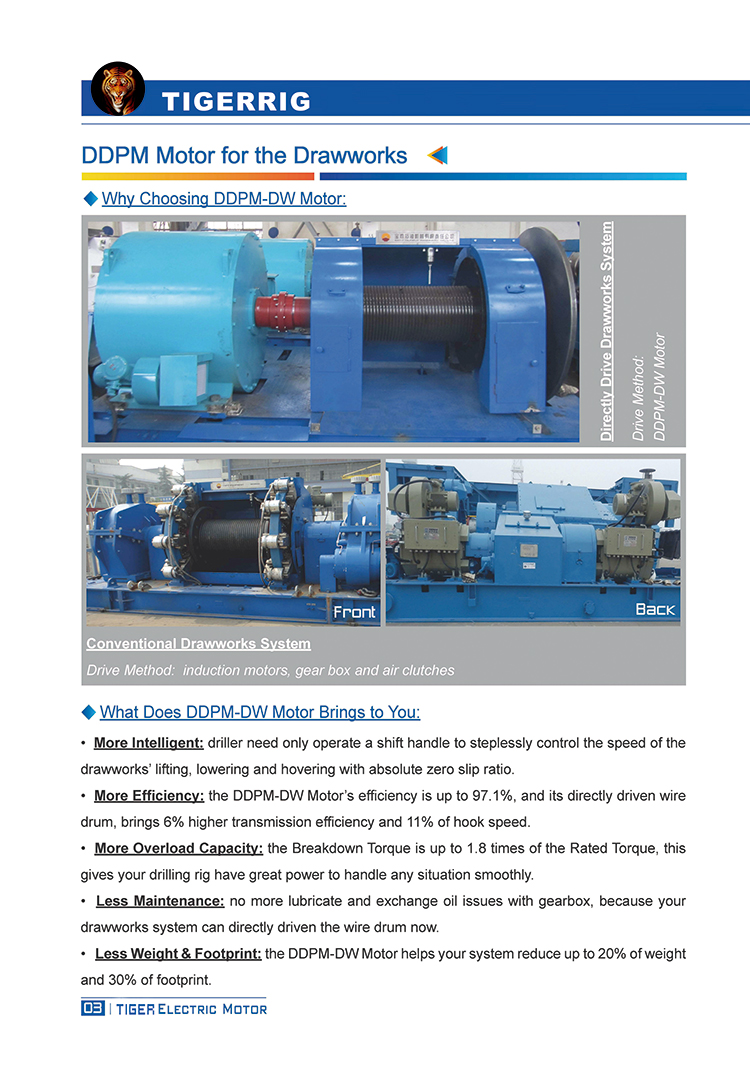

The DDPM-Motor for Drawworks motor help driller improve the well drilling efficiency, help drawworks system increase performance and safety factor, reduce the energy use age and maintenance, and lower the footprint and weight.

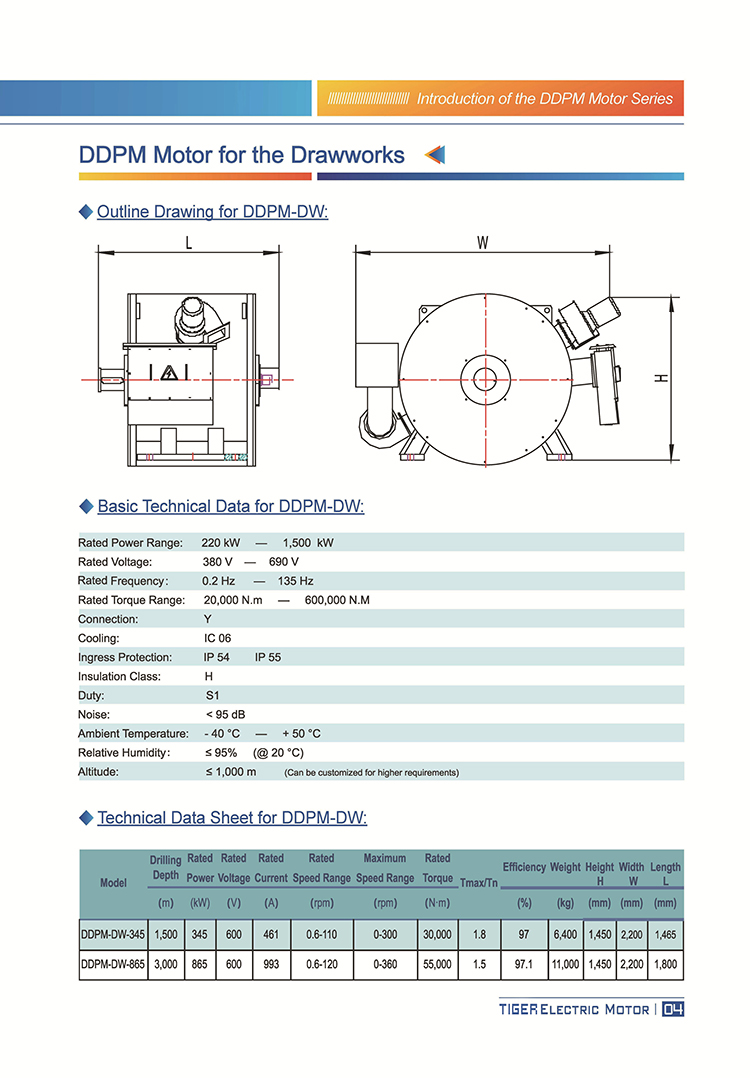

Specifications
Model
DDPM-DW-345
Rated power
600 kw
Rated speed
660 rpm
Rated voltage
600 v
Rated EFF.%(100% load)
95
Rated EFF.%(75% load)
92
Power factor
0.86cosΦ
Current
712A
Current(Times Locked-rotor)
4.7
Torque
8686 N.m
Torque(Times Locked-rotor)
2.5
Size mm
1780*915*860
Weight
3100kg
