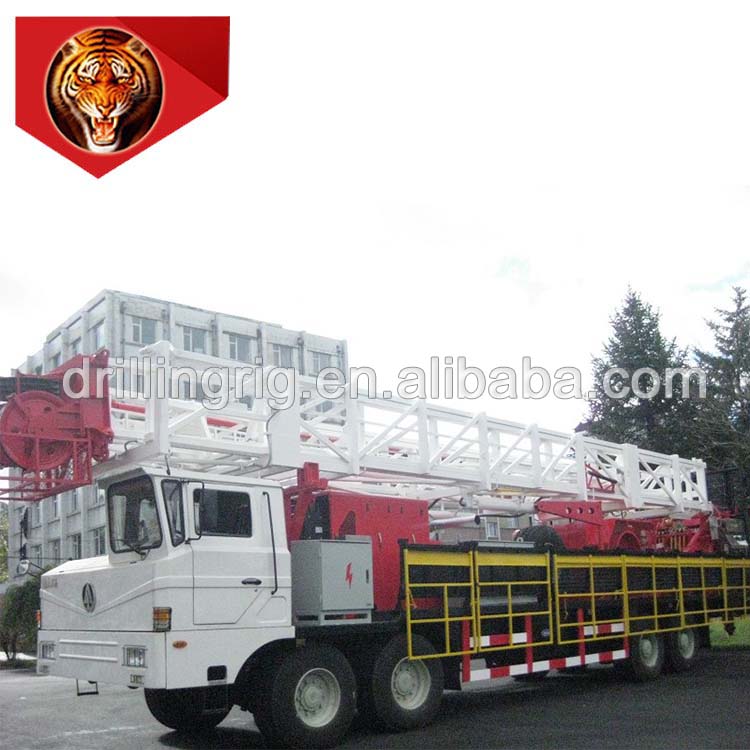

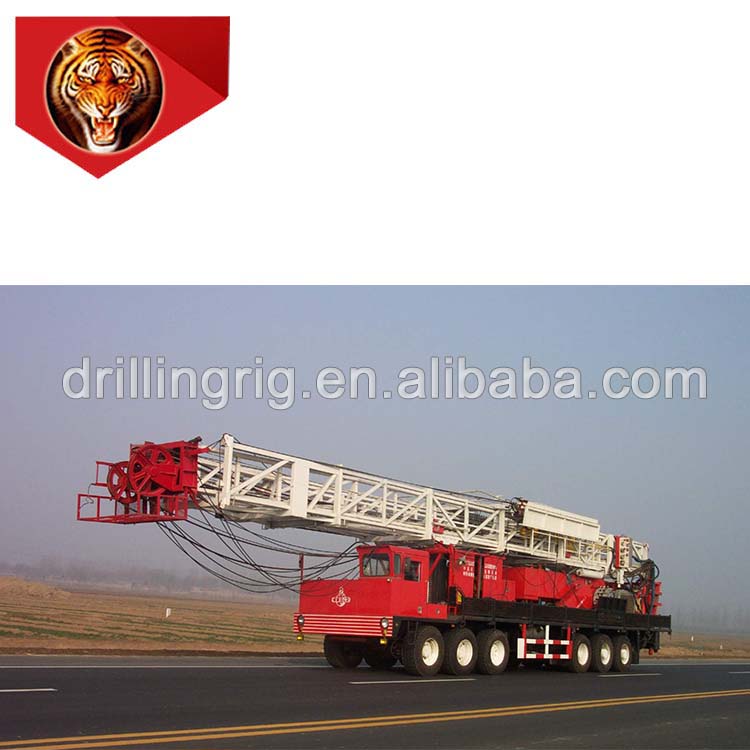

XJ1600 Workover Drilling Rig
Product information
XJ series workover rig includes lifting operation system, rotary operating system and chassis walking system. The product is well equipped with a wide range of adaptation.it is equipped with drilling platform and related parts for overhaul. It has the characteristics of reasonable layout, compact structure, good transport performance, convenient site installation and simple maintenance.
Specifications
Model
XJ1600(XJ120)
Nominal service depth (ft)（27/8″EUE tubing）
28000
Nominal workover depth (ft)（27/8″DP）
23000
Drilling depth (ft)（41/2″DP）
8200
Max. hook load (lbf)
350000
Rated hook load (lbf)
270000
Engine model
C18
Engine power (hp)
630
Hydraulic transmission box model
S6610HR
Transmission type
Hydraulic +
