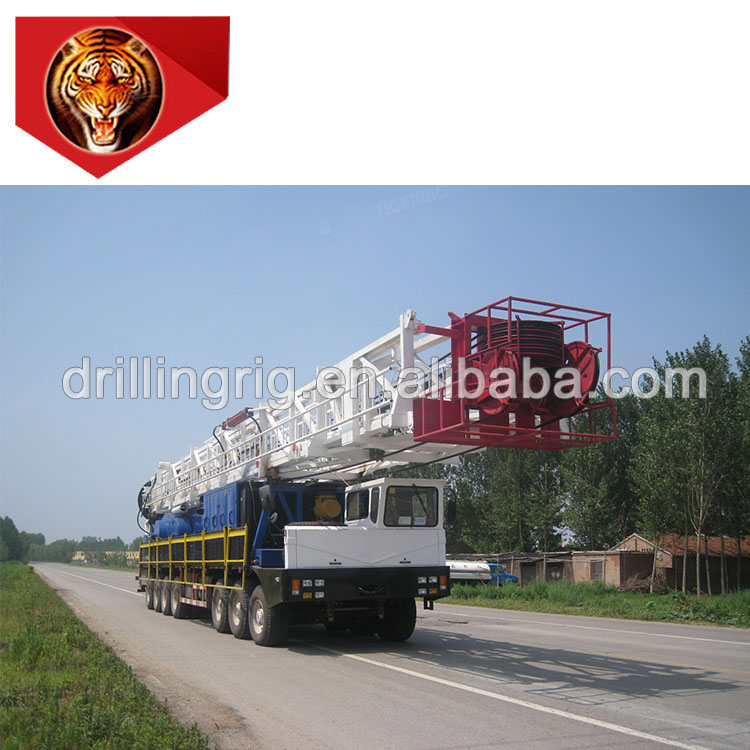

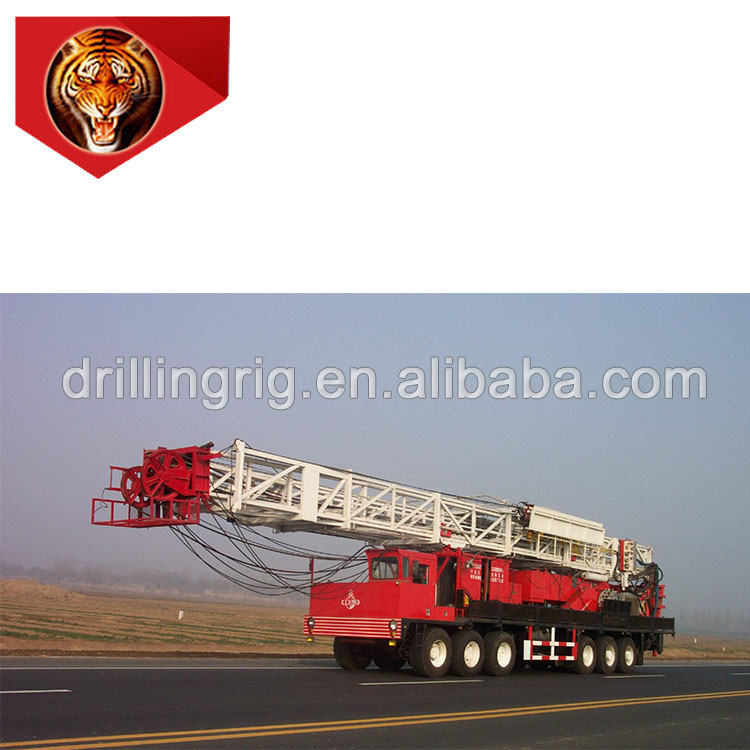

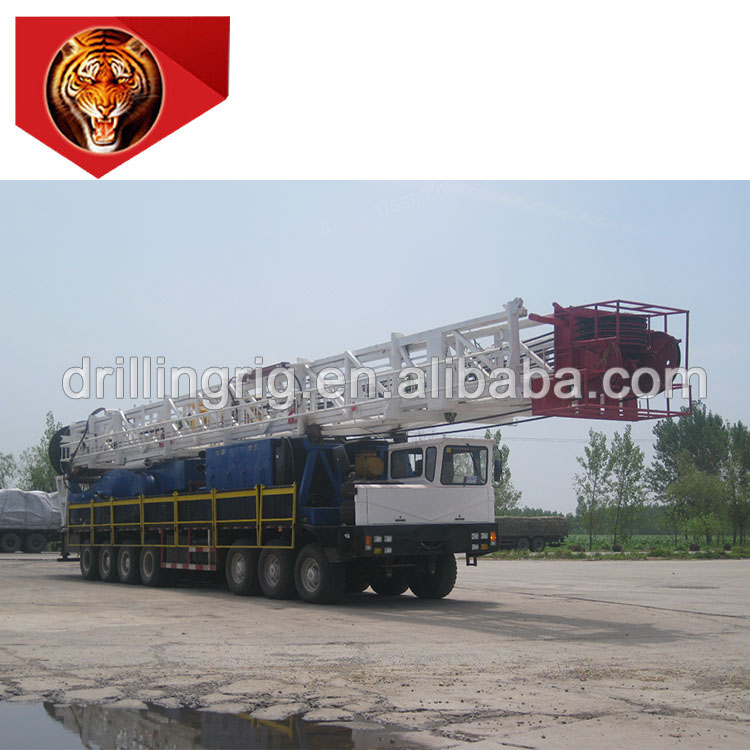

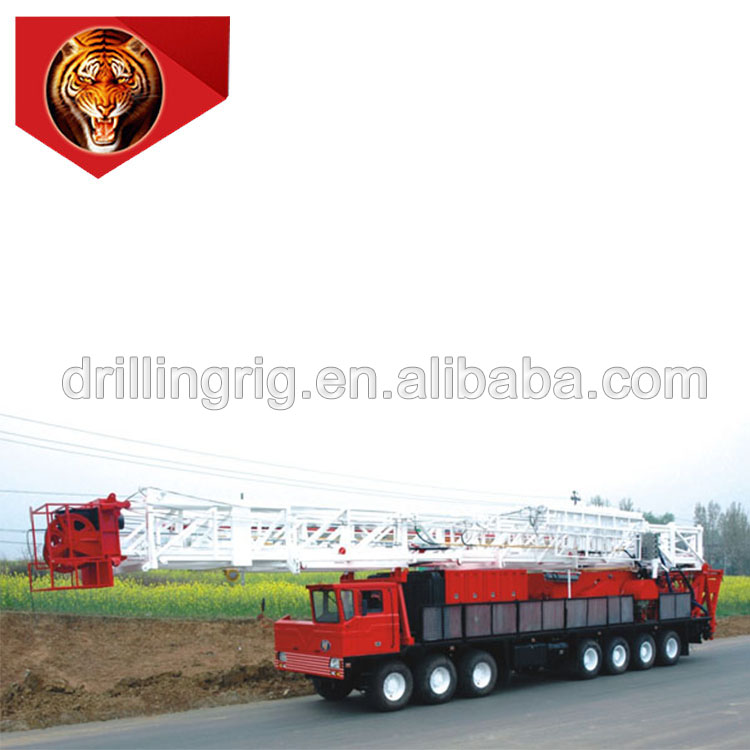

XJ600 Workover Drilling Rig
Product information:
XJ series workover rig includes lifting operation system, rotary operating system and chassis walking system. The product is well equipped with a wide range of adaptation. it is equipped with drilling platform and related parts for overhaul. It has the characteristics of reasonable layout, compact structure, good transport performance, convenient site installation and simple maintenance.
Specifications
Model
XJ600（XJ30）
Nominal service depth(ft)（27/8″EUE tubing）
8500
Nominal workover depth (ft)（27/8″DP）
5000
Max. hook load (lbf)
130000
Rated hook load (lbf)
65000
Engine model
F8L413F
Engine power (hp)
252
Transmission type
Hydraulic + mechanical
Traveling system
4×3
Effective height of mast (ft)
56
Drilling line diameter (in)
7/8
Hook speed (ft/s)
0.66～5.7
Approaching/departure angle
18°/14°
Min. ground clearance (in)
13
Max. gradient ability
30%
Min. turning diameter (ft)
108
Rotary table model
ZP70
Traveling block model
YG60
Swivel model
SL70
