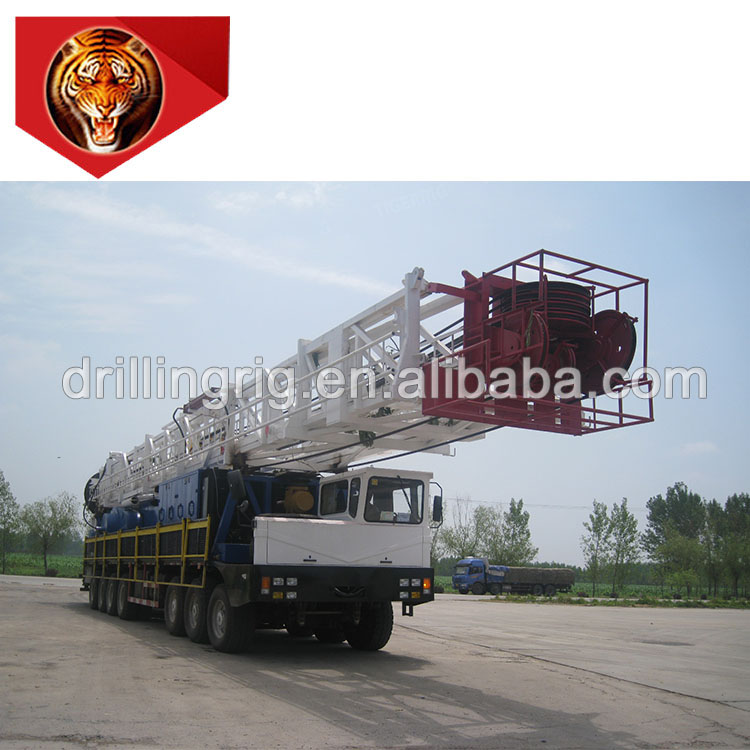

XJ700 Workover Drilling Rig
Product information
XJ series workover rig includes lifting operation system, rotary operating system and chassis walking system. The product is well equipped with a wide range of adaptation.it is equipped with drilling platform and related parts for overhaul. It has the characteristics of reasonable layout, compact structure, good transport performance, convenient site installation and simple maintenance.
Specifications
Model
XJ700（XJ40）
Nominal service depth(ft)（27/8″EUE tubing）
10500
Nominal workover depth (ft)（27/8″DP）
6562
Max. hook load (lbf)
150000
Rated hook load (lbf)
90000
Engine model
T-3A929 or WD615.68
Engine power (hp)
281 or 303
Transmission type
Hydraulic + mechanical
Traveling system
4×3
Effective height of mast (ft)
56
Drilling line diameter (in)
7/8
Hook speed (ft/s)
0.66～4.6
Approaching/departure angle
18°/12°
Min. ground clearance (in)
13
Max. gradient ability
26%
Min. turning diameter (ft)
108
Rotary table model
ZP70
Traveling block model
YG70
Swivel model
SL70
Overall moving dimension (ft)
38×8×13
Main unit mass (lb)
55200
