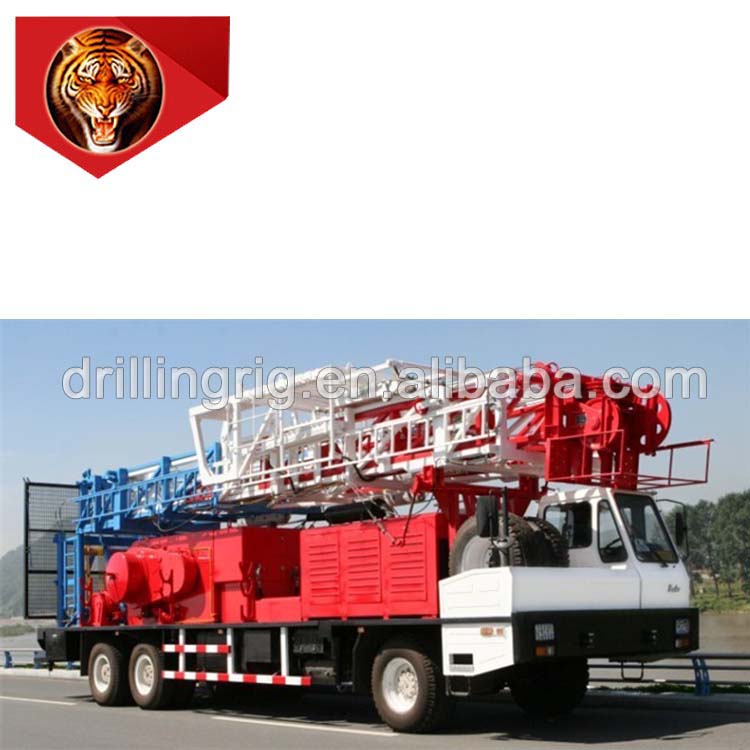

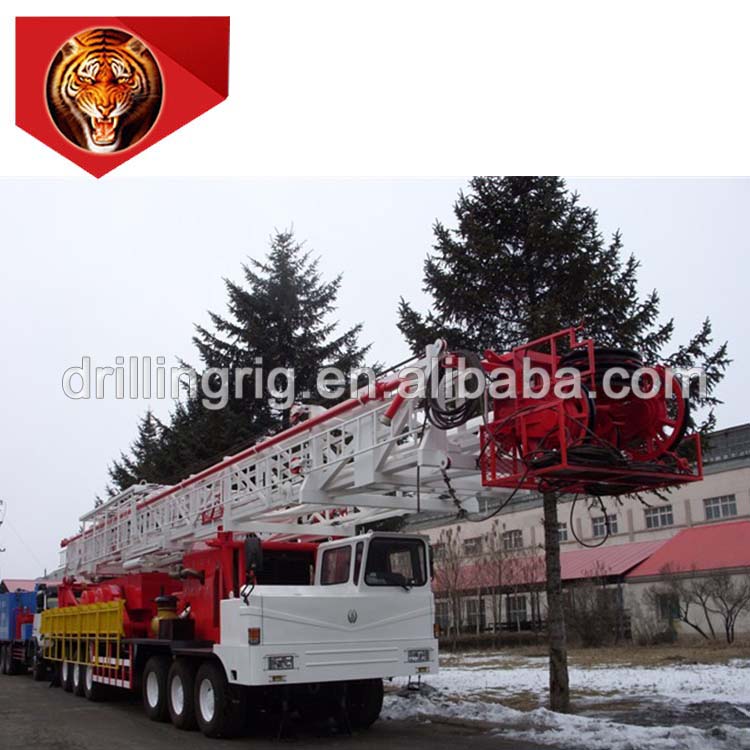

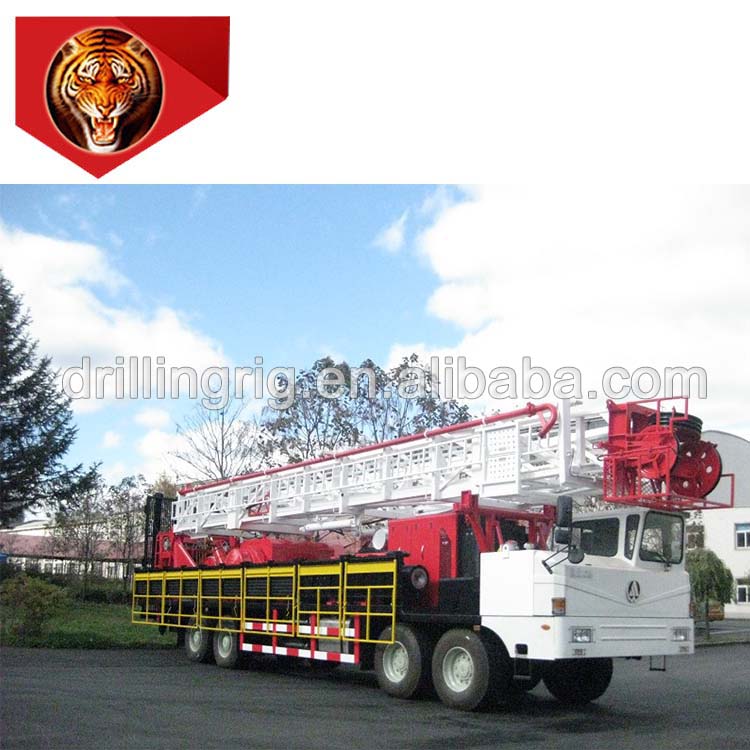

XJ2250 Workover Drilling Rig
Product information
XJ series workover rig includes lifting operation system, rotary operating system and chassis walking system. The product is well equipped with a wide range of adaptation.it is equipped with drilling platform and related parts for overhaul. It has the characteristics of reasonable layout, compact structure, good transport performance, convenient site installation and simple maintenance.
Specifications
Model
XJ2250(XJ180)
Nominal service depth (ft)（27/8″EUE tubing）
————
Nominal workover depth (ft)（27/8″DP）
29000
Drilling depth (ft)（41/2″DP）
13000
Max. hook load (lbf)
500000
Rated hook load (lbf)
400000
Engine model
2×C18
Engine power (hp)
2×630
Hydraulic transmission box model
2×S6610HR
Transmission type
Hydraulic +
