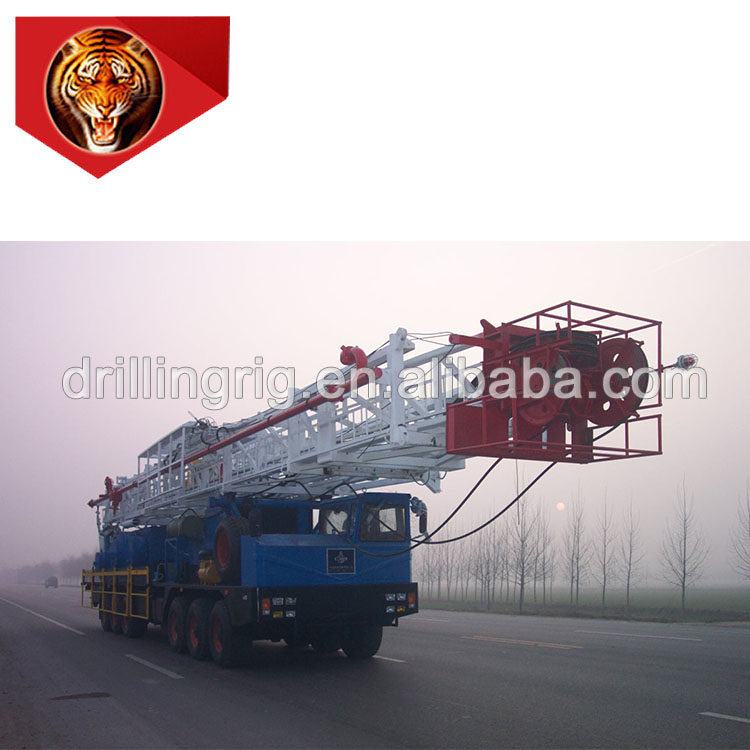

XJ900 Workover Drilling Rig
Product information
XJ series workover rig includes lifting operation system, rotary operating system and chassis walking system. The product is well equipped with a wide range of adaptation.it is equipped with drilling platform and related parts for overhaul. It has the characteristics of reasonable layout, compact structure, good transport performance, convenient site installation and simple maintenance.
Specifications
Model
XJ900(XJ60)
Nominal service depth(ft)（27/8″EUE tubing）
13000
Nominal workover depth (ft)（27/8″DP）
10500
Max. hook load (lbf)
202320
Rated hook load (lbf)
134880
Engine model
C9
Engine power (hp)
350
Transmission type
Hydraulic + mechanical
Traveling system
4×3
Effective height of mast (ft)
95,102
Drilling line diameter (in)
1
Hook speed (ft/s)
0.66～5.7
Approaching/departure angle
23°/16°
Min. ground clearance (in)
14
Max. gradient ability
30%
