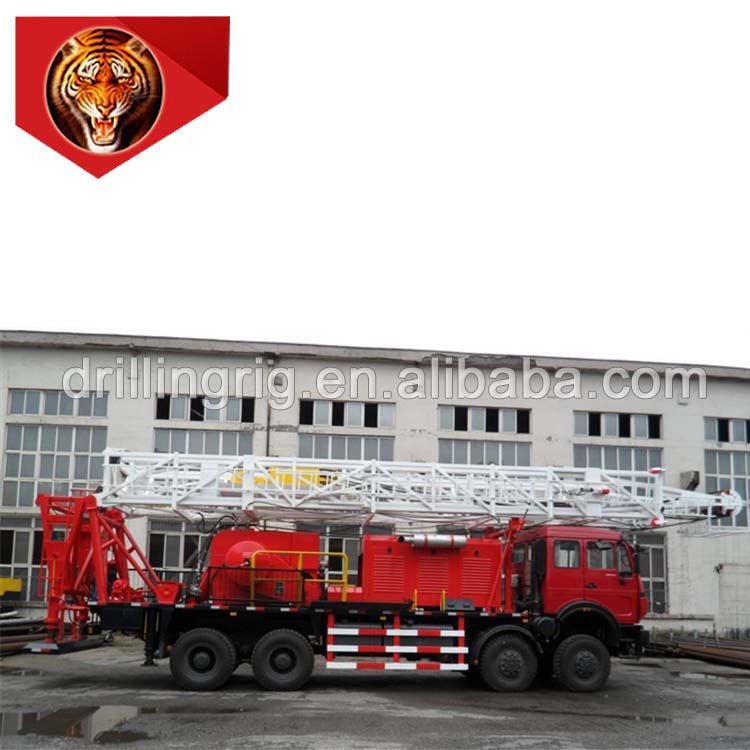

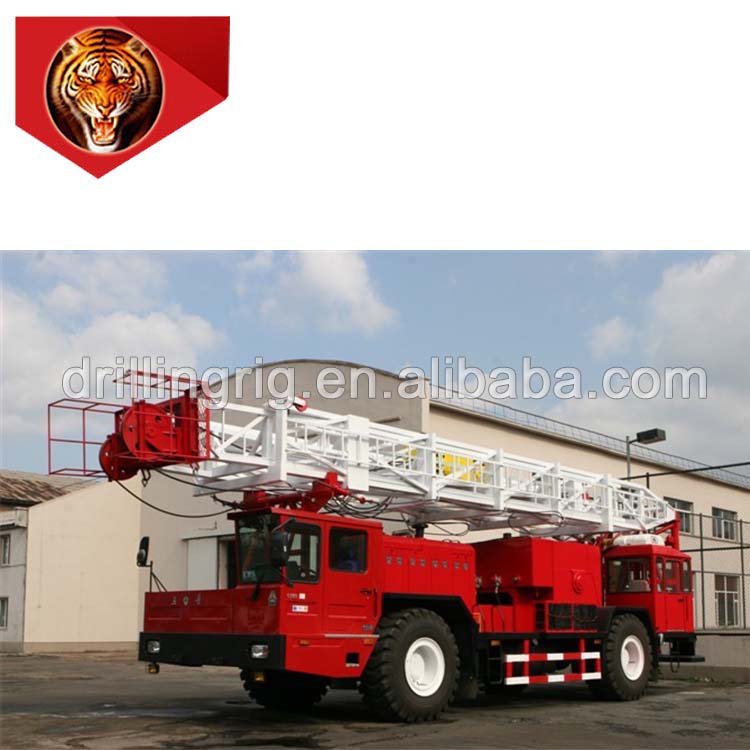

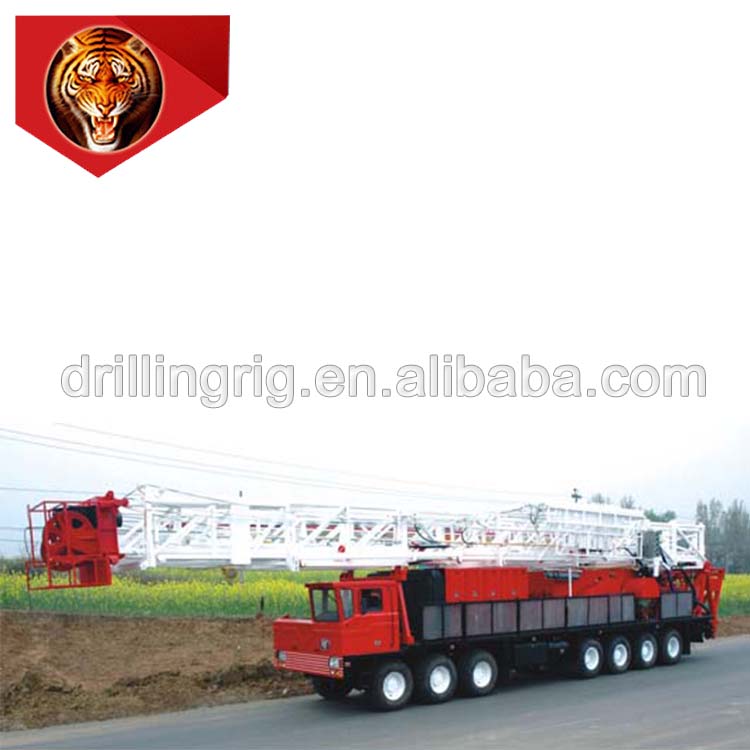

XJ1350 Workover Drilling Rig
Product information
XJ series workover rig includes lifting operation system, rotary operating system and chassis walking system. The product is well equipped with a wide range of adaptation.it is equipped with drilling platform and related parts for overhaul. It has the characteristics of reasonable layout, compact structure, good transport performance, convenient site installation and simple maintenance.
Specifications
Model
XJ1350(XJ100)
Nominal service depth (ft)（27/8″EUE tubing）
23000
Nominal workover depth (ft)（27/8″DP）
19000
Drilling depth (ft)（41/2″DP）
6600
Max. hook load (lbf)
300000
Rated hook load (lbf)
220000
Engine model
C15
Engine power (hp)
540
Hydraulic transmission box model
S5610HR
Transmission type
Hydraulic +
