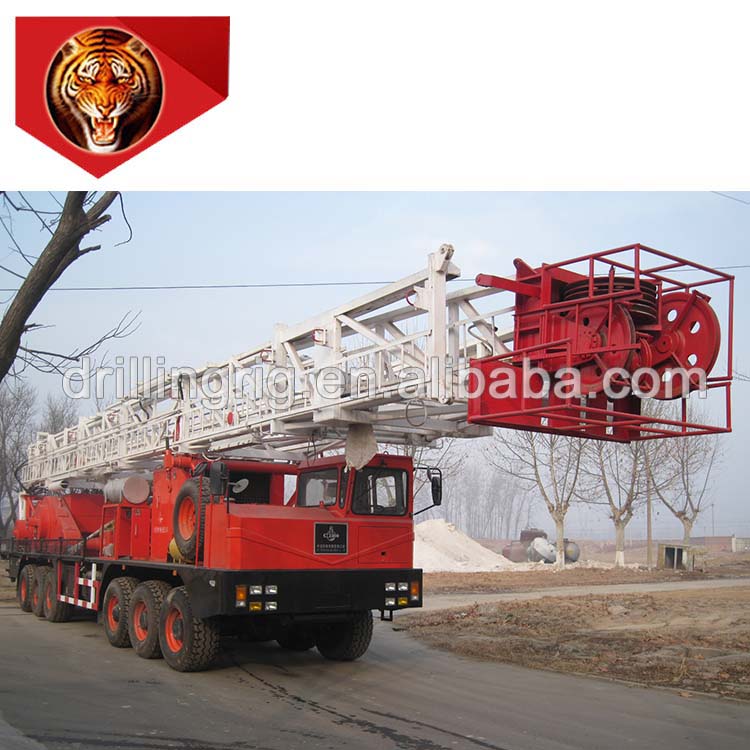

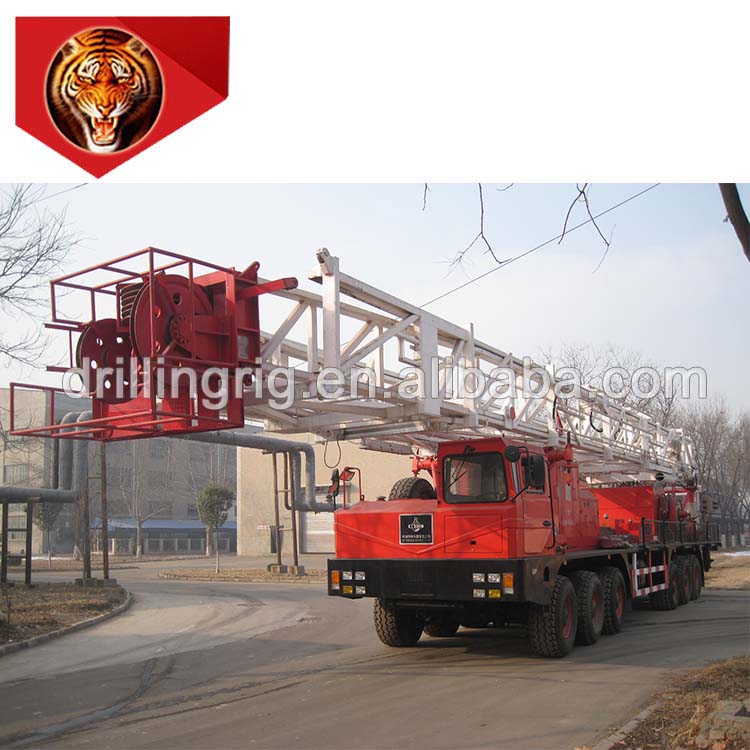

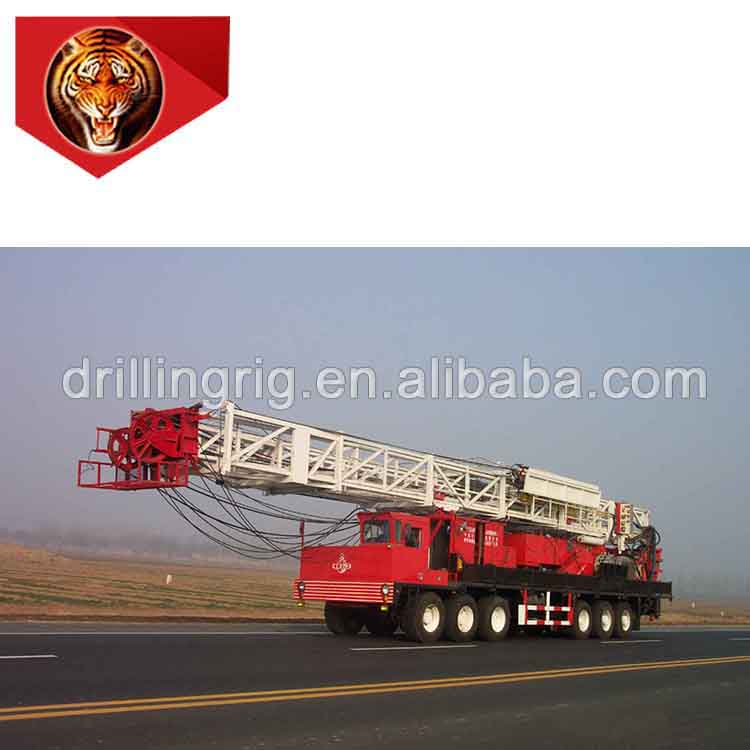

XJ1100 Workover Drilling Rig
Product information
XJ series workover rig includes lifting operation system, rotary operating system and chassis walking system. The product is well equipped with a wide range of adaptation.it is equipped with drilling platform and related parts for overhaul. It has the characteristics of reasonable layout, compact structure, good transport performance, convenient site installation and simple maintenance.
Specifications
Model
XJ1100(XJ80)
Nominal service depth (ft)（27/8″EUE tubing）
18000
Nominal workover depth (ft)（27/8″DP）
15000
Drilling depth (ft)（41/2″DP）
5000
Max. hook load (lbf)
250000
Rated hook load (lbf)
180000
Engine model
C15
Engine power (hp)
540
Hydraulic transmission box model
S5610HR
Transmission type
Hydraulic + mechanical
