Tigerrig DG90 DG135 DG170 DG225 DG315 DG450 DG585 Hook

< >

Features
Specification

Tigerrig DG90 DG135 DG170 DG225 DG315 DG450 DG585 Hook

Product information

Features:

Equipped with hydraulic bumper for drill pipe joint protection during breakout

Reliable safeguard locking device

Major load-bearing parts subject to NDE

Conforms to API Spec 8A and marked with API monogram

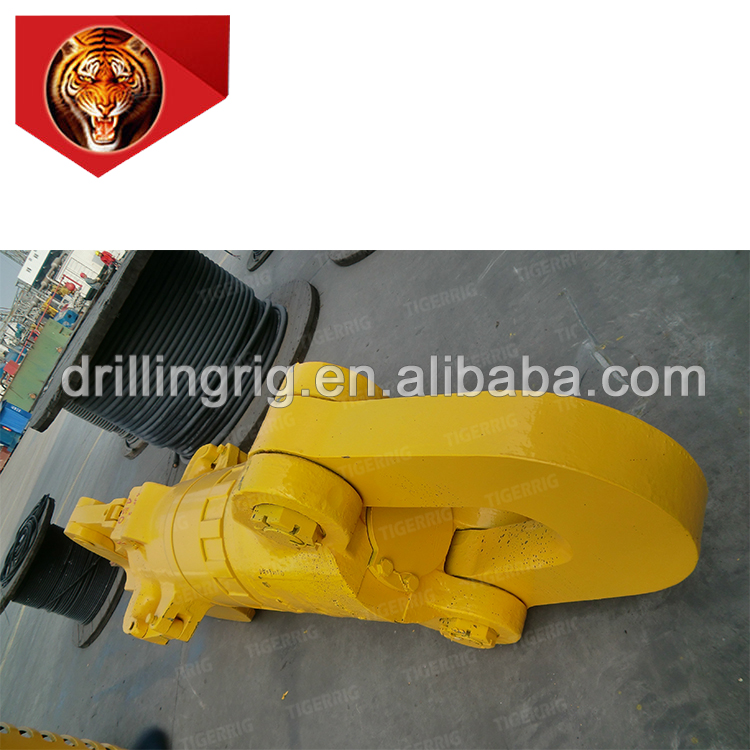

Tigerrig Hook.jpg

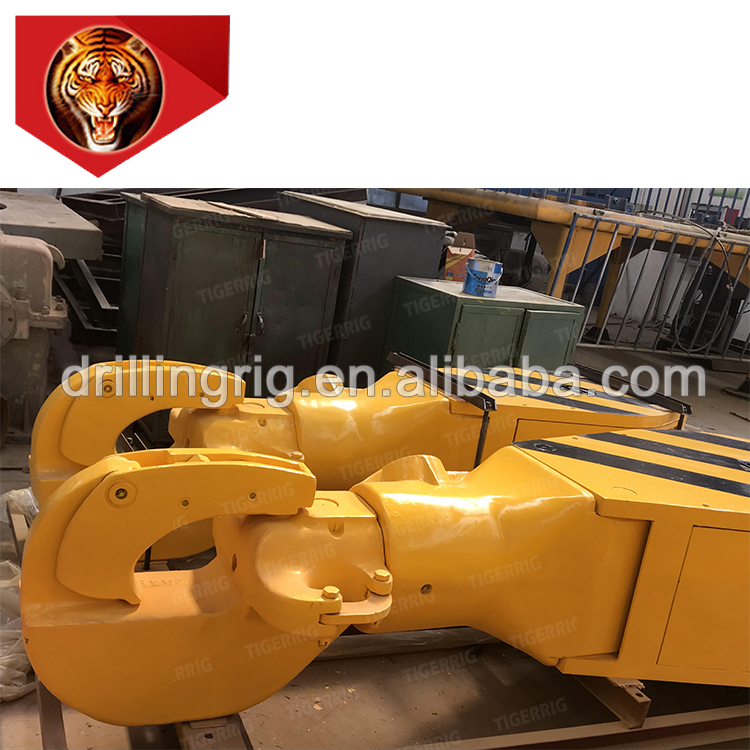

Tigerrig Hook (1).jpg

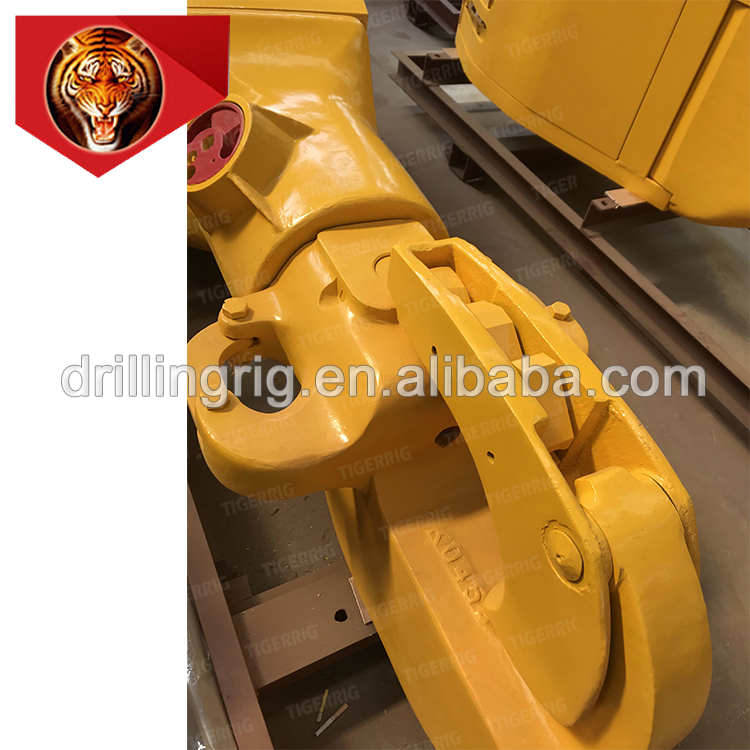

Tigerrig Hook (2).JPG

Tigerrig Hook (3).JPG

Tigerrig Hook (4).JPG

Tigerrig Hook (5).JPG

Tigerrig Hook (6).JPG



tigerrig drilling rig parts (2).jpg

Specifications

Model	DG90	DG135	DG170	DG225	DG315	DG450	DG585
Max. hook load kN	900	1350	1700	2250	3150	4500	5850
Opening size of main hook mm(in)	155 (6 1/16)	165 (6 1/2)	180 (7)	190 (7 1/2)	220 (8 5/8)	220 (8 5/8)	238 (9 3/8)
Main hook DN mm(in)	116 (4 1/2)	140 (5 1/2)	150 (6)	160 (6 1/4)	180 (7)	180 (7)	180 (7)
Auxiliary hook DN mm(in)	80 (3 1/8)	90 (3 1/2)	90 (3 1/2)	100 (4)	120 (4 ³/4)	120 (4 ³/4)	120 (4 ³/4)
Spring trip mm(in)	180 (7)	180 (7)	180 (7)	180 (7)	200 (8)	200 (8)	200 (8)
Dimensions (L×W×H) mm	2000×680 ×600	2200×720 ×616	2450×750 ×630	2545×780 ×750	2953×890 ×830	2950×890 ×880	3156×930 ×930
Weight kg	1800	1910	2020	2180	3410	3496	3900
