Tigerrig SL90 SL135 SL225 SL450 SL585 Drilling Swivel

< >

Features
Specification

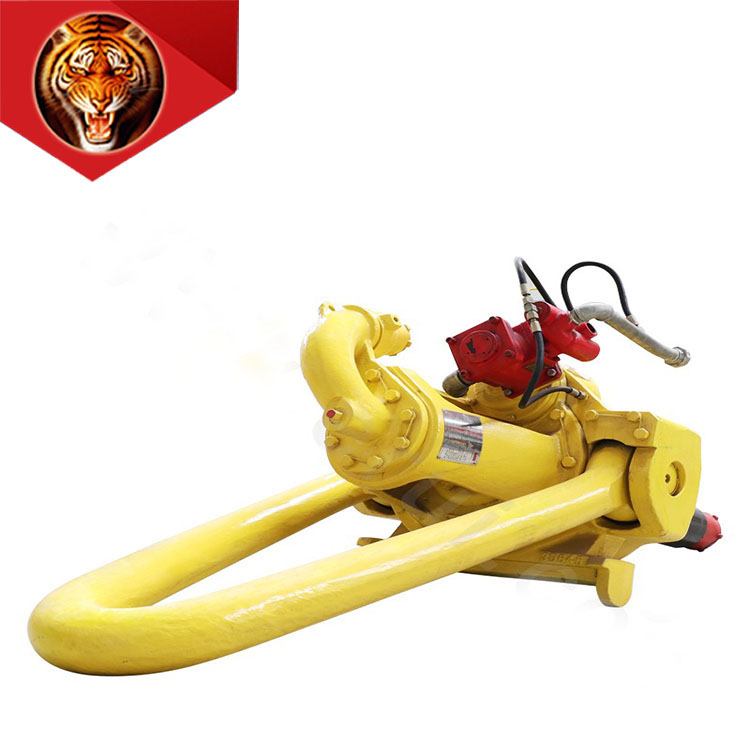

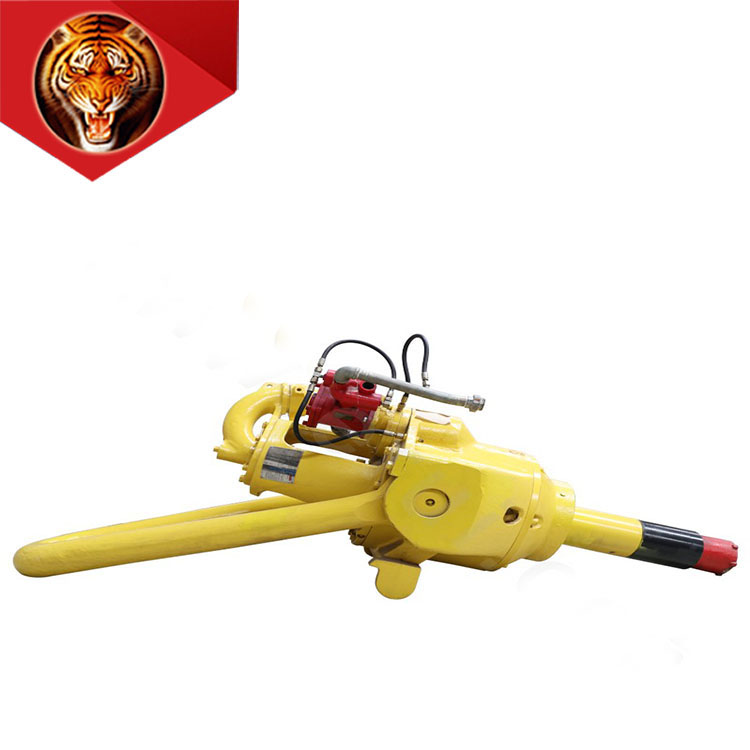

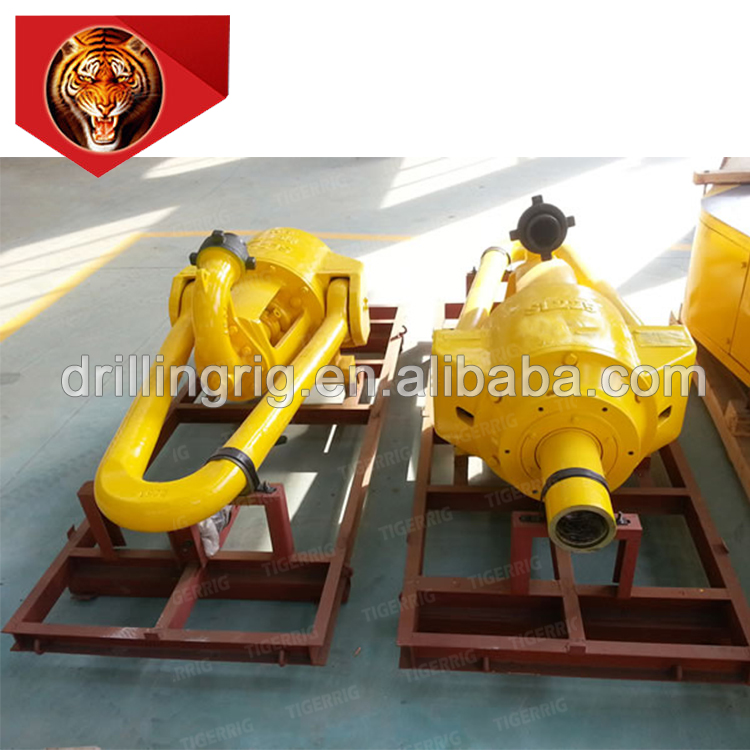

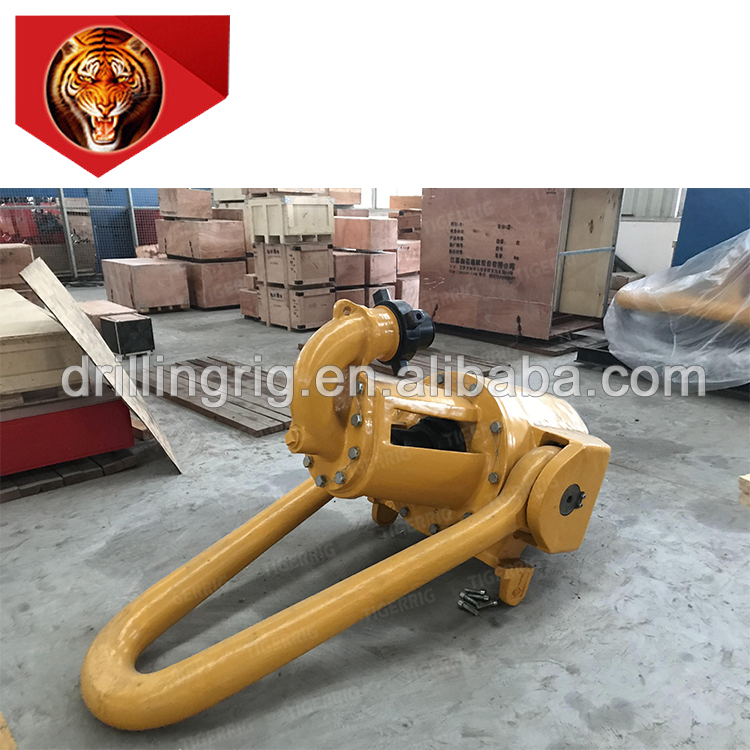

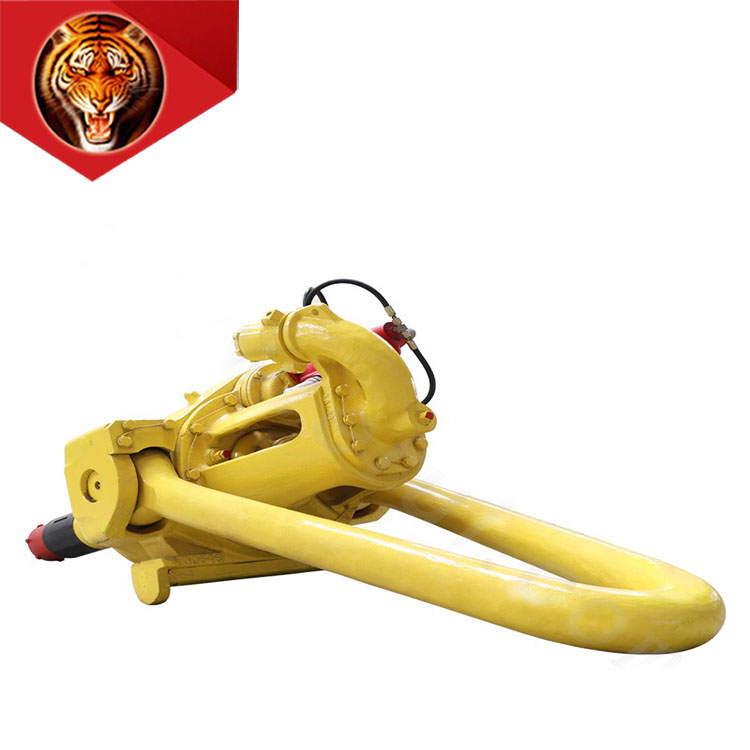

Tigerrig SL90 SL135 SL225 SL450 SL585 Drilling Swivel

Product information

Features:

Standard bail and double pin (male) alloy sub.

The wash pipe and packing are box structure, convenient to replacing on drill floor, no need to disassemble rotary hose and gooseneck.

Hole in gooseneck top provides passageway for well logging wire line.

Standard gooseneck connection, screw thread conforms to API STD 5B.

Conform to API Spec 8A and marked with API monogram.

Tigerrig Swivel.jpg

Tigerrig Swivel (1).JPG

Tigerrig Swivel (2).JPG

Tigerrig Swivel (3).jpg

Tigerrig Swivel (4).jpg

Tigerrig Swivel (5).JPG

Tigerrig Swivel (6).jpg

Tigerrig Swivel (7).jpg

Tigerrig Swivel (8).jpg

Tigerrig Swivel (9).jpg



tigerrig drilling rig parts (2).jpg

Specifications

Model		SL90	SL135	SL225	SL450	SL585
Max. static load KN		900	1350	2250	4500	5850
Max. rotary speed r/min		300	300	300	300	300
Max. working pressure MPA (psi)		25 (3570)	35 (5000)	35 (5000)	35 (5000)	35 (5000)
Clearance between bail and gooseneck mm (in)		435 (17 1/8)	495 (19 1/2)	540 (21 1/4)	549 (21 5/8)	584 (23)
Center pipe diameter mm(in)		64 (2 1/2)	64 (2 1/2)	75 (3)	75 (3)	75 (3)
Center pipe upper screw thread	Connect to center pipe API In	4 1/2 REG LH	4 1/2 REG LH	6 5/8 REG LH	7 5/8 REG LH	7 5/8 REG LH
Center pipe lower Screw thread	Connect to Kelly API in	6 5/8 REG LH	6 5/8 REG LH	6 5/8 REG LH	6 5/8 REG LH	6 5/8 REG LH
Gooseneck connection screw thread		3″-8 teeth/inch	3″-8 teeth/inch	4″-8 teeth/inch	4″-8 teeth/inch	4″-8 teeth/inch
Dimension (L x W x H) mm		2505×758×840	2505×758×840	2880×1026×1065	3015×1096×1065	3115×1224×990
Weight kg		940	1345	2402	3310	3230
Note: For above models, spinner (makeup and breakout) is optional.
