Tigerrig DSL-110 DSL-135 Power Swivel

< >

Features
Specification

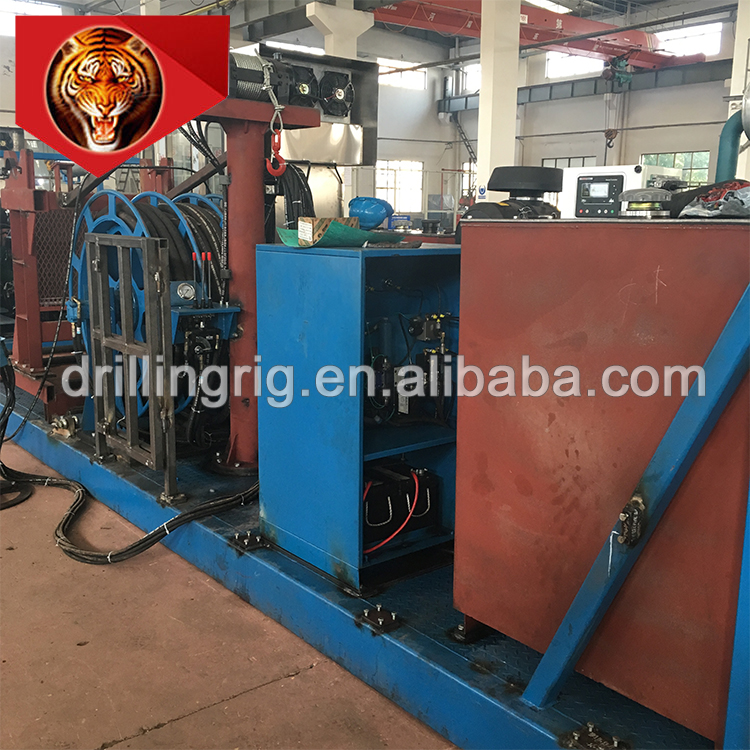

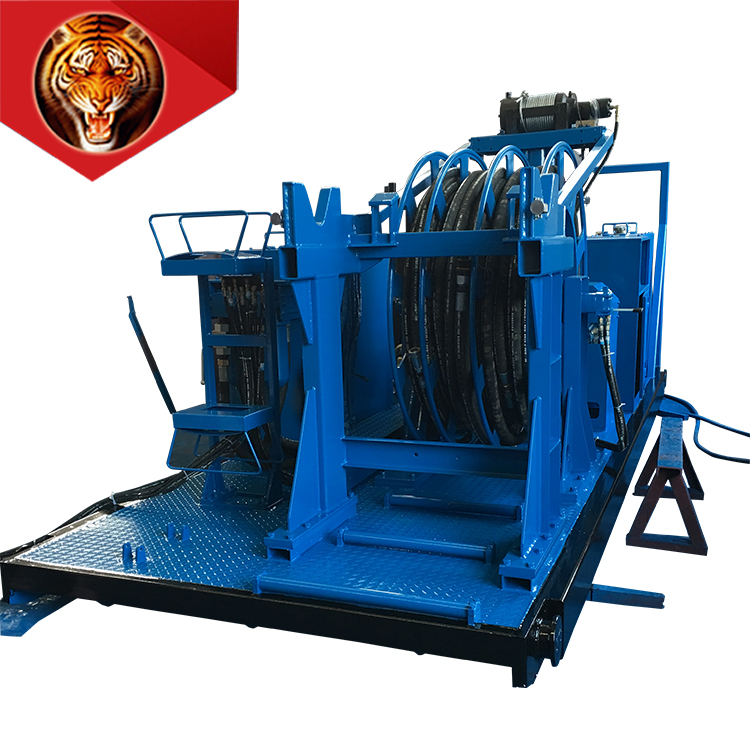

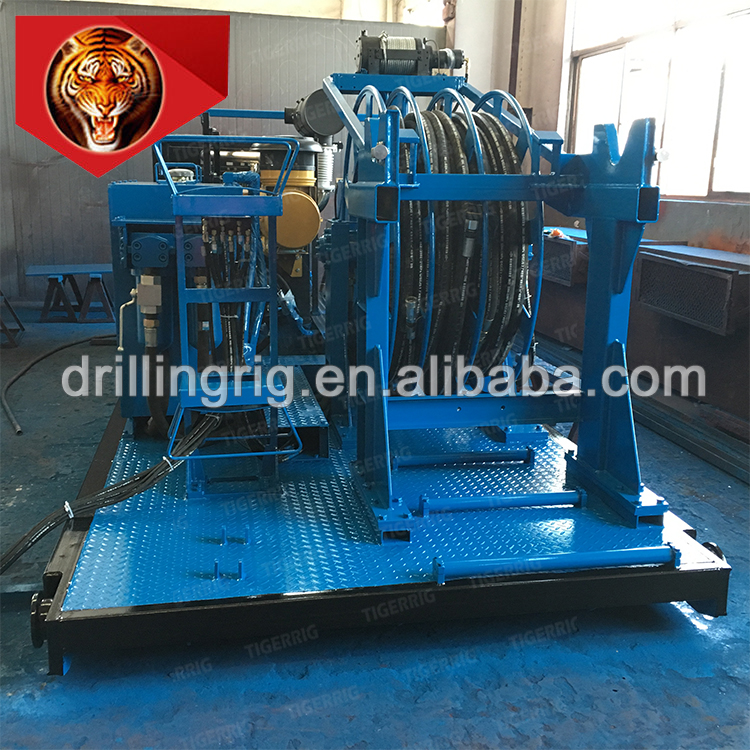

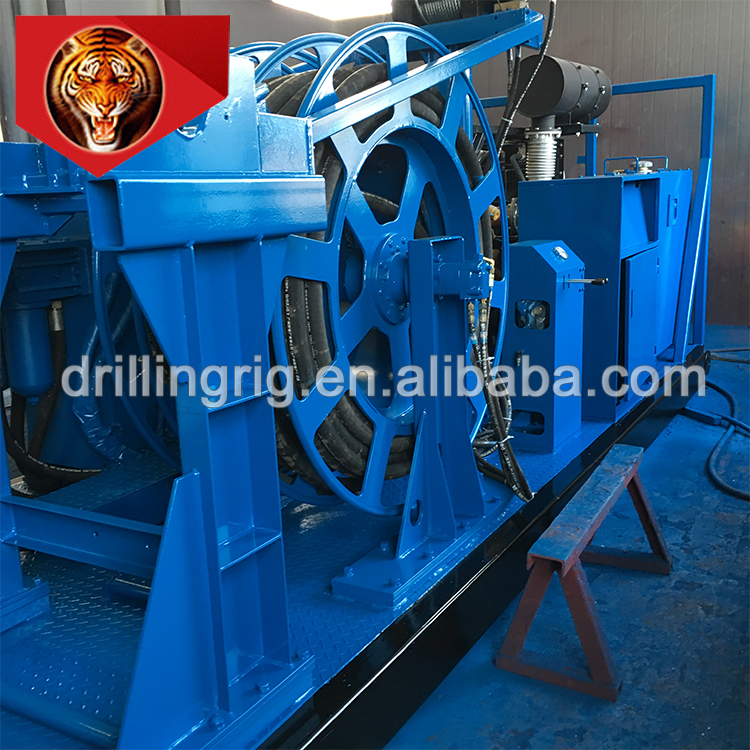

Tigerrig DSL-110 DSL-135 Power Swivel

DSL135 power swivel.jpg

Tigerrig Power Swivel (1).JPG

Tigerrig Power Swivel (2).jpg

Tigerrig Power Swivel (3).JPG

Tigerrig Power Swivel (5).JPG

Tigerrig Power Swivel (6).JPG

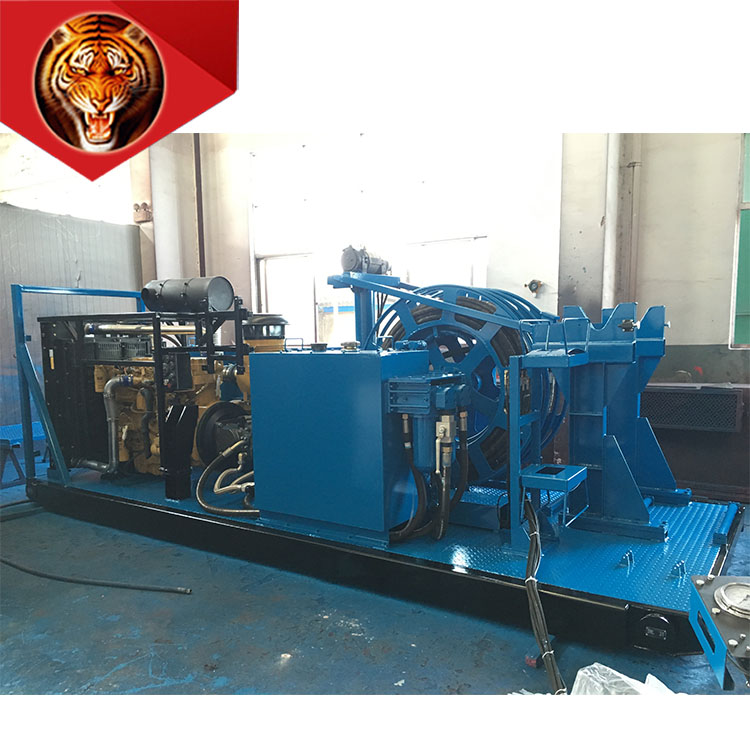

Tigerrig Power Swivel (7).JPG

Tigerrig Power Swivel (8).JPG

Tigerrig Power Swivel (9).JPG

Tigerrig Power Swivel (10).jpg

Tigerrig Power Swivel (11).JPG

Tigerrig Power Swivel (12).JPG

Tigerrig Power Swivel (13).JPG

Tigerrig Power Swivel (15).JPG

成都中杭 Power swivel YSL-1.jpg

成都中杭 Power swivel YSL-2.jpg

Specifications

Model		DSL-110	DSL-135
Max. Static Load	kN	1100	1350
Max. Static Load	US ton	120	150
Dynamic Load Rating	kN	600	1180
Dynamic Load Rating	US ton	65	120
Max. Speed	rpm	150	150
Max. Pressure	MPa	35	35
Max. Pressure	psi	5000	5000
Torque rating	N.m	6000	16270
Torque rating	ft .lbf	4,420	12000
Bore thru stem	mm	68.26	61.91
Bore thru stem	in	2 11/16	2-7/16"
Gooseneck Connection		51/4– 4--ACME	3" NPT
Sub Connection		31/2 IF	31/2 IF
Size	mm	2361X953X865	2066 X1105X550
Size	in	93X37.5X34	81X43.5X22
Weight	kg	910	1270
Weight	lb	2000	2800
