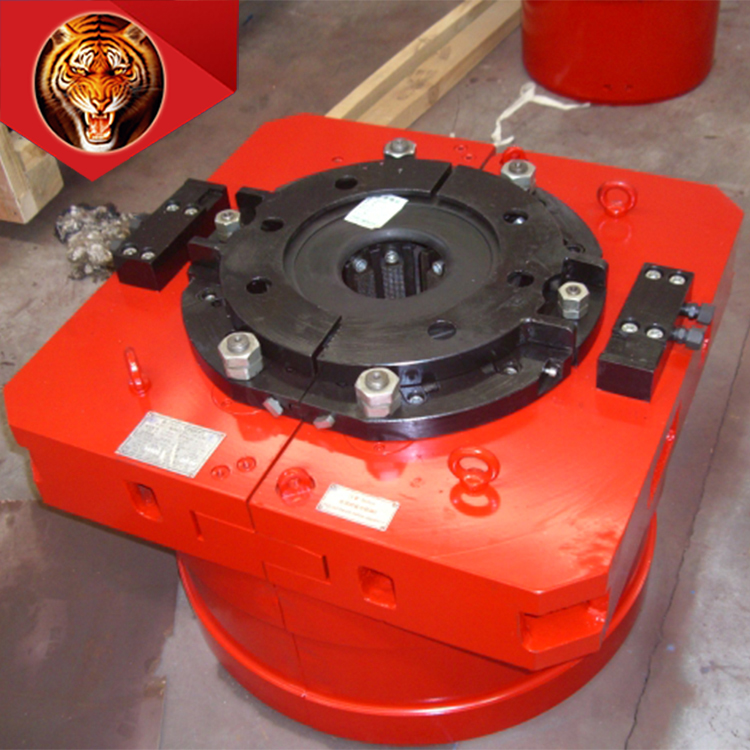

Tigerrig new product launch QW type QW175 QW275 QW275 QW375 pneumatic drilling pipe air slip for handling casing
Production Description:
Drill pipe pneumatic slip is an ideal wellhead mechanized power tool for oil and gas drilling and drilling operations, suitable for all types of rig turntables. It can replace the traditional double elevator work or portable drill pipe slip operation mode. It has the characteristics of convenient installation, simple operation, pneumatic lifting, high degree of automation, high safety performance, low labor intensity of workers, and improved drilling speed. To a certain extent, it can improve the drilling time.
Specifications
model
QW175
QW205（520）
QW275
QW375
Suitable turntable
ZP175
ZP205（520）
ZP275
ZP375
Air source working pressure (MPa)
0.6-0.9
Effective clamping length (mm)
420
Maximum load(kN)
2000
3000
3500
Maximum diameter (mm)
220
Kava body clamping position height (mm)
≤45
Kava body release position height (mm)
≤300
Applicable drill pipe size
31/2-51/2″
Shape size (diameter × height) (mm)
?443×584
?520×584
?697×581
?481×612
Weight(kg)
440
620
1020
920
