Tigerrig direct manufacturer supply precision DDZ type drill pipe elevator for drilling tools

< >

Features
Specification

Tigerrig direct manufacturer supply precision DDZ type drill pipe elevator for drilling tools

Production Description:

DDZ side-opening elevator is suitable for lifting 18-degree taper shoulder drill pipe and measuring tools. Elevators are designed and manufactured according to API.

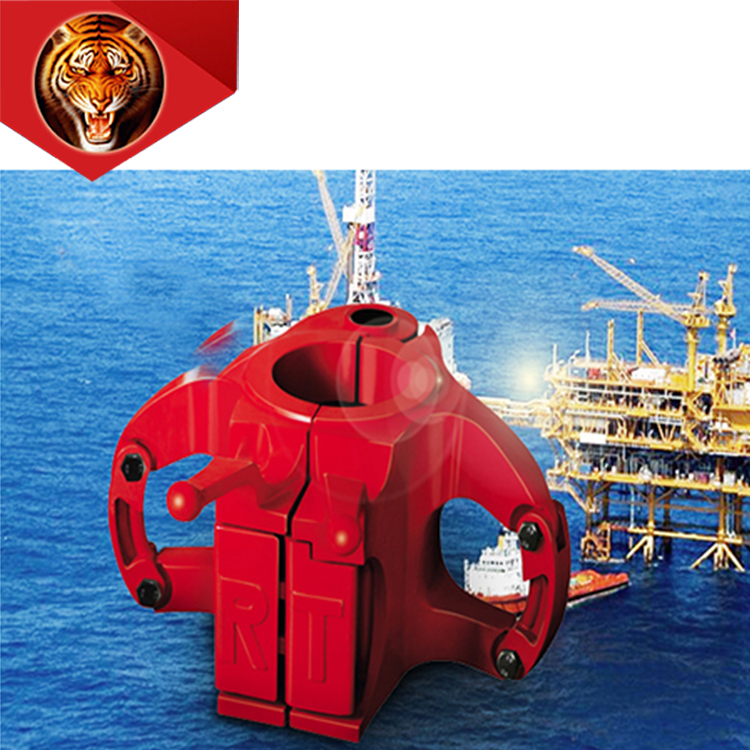

Tigerrig DDZ type elevator (3).jpg

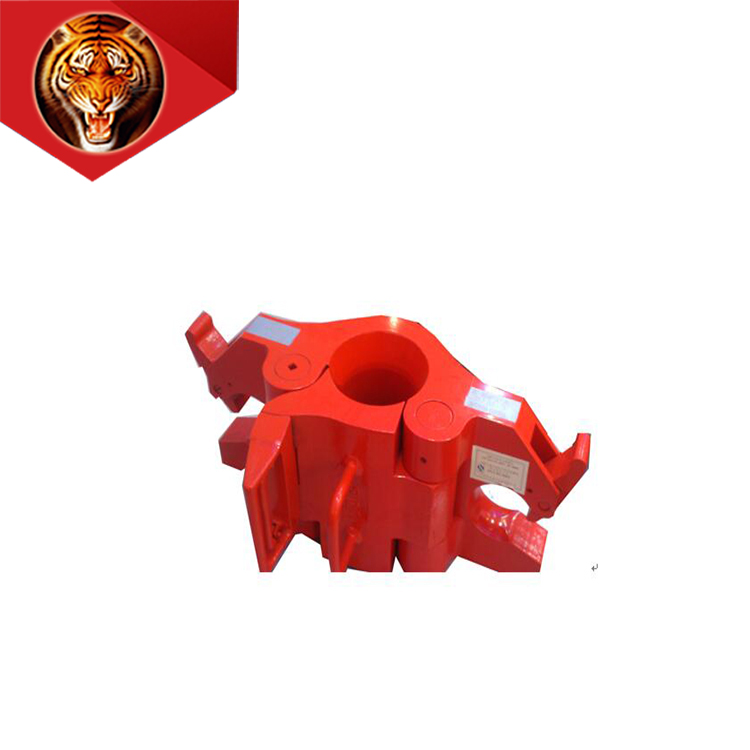

Tigerrig DDZ type elevator (1).jpg

Tigerrig DDZ type elevator (2).jpg








Specifications

Model	Size	Rated torque	Remarks
Model	Size	Rated torque	Remarks
DDZ-100	2 3/8-5	100	MG
DDZ -150	2 3/8- 5 1/2	150	RG
DDZ -250	2 3/8- 5 1/2	250	MGG
DDZ -350	3 1/2- 5 7/8	350	GG
DDZ -350TD	3 1/2- 5 7/8	350	Be applicable Top drive
DDZ -500	3 1/2- 6 5/8	500	HGG
DDZ -500TD	3 1/2- 6 5/8	500	Be applicable Top drive
DDZ -750	4- 6 5/8	750	Be applicable Top drive
