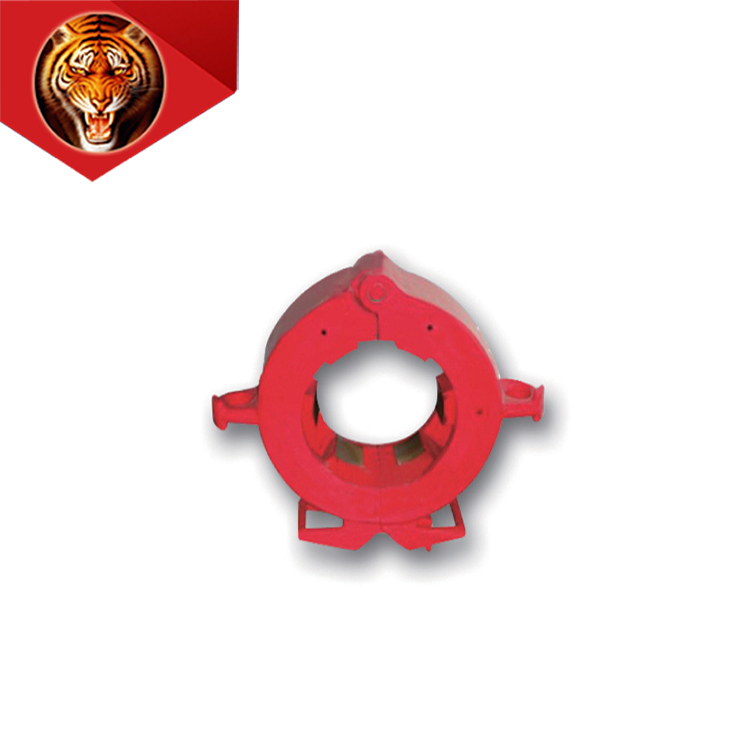

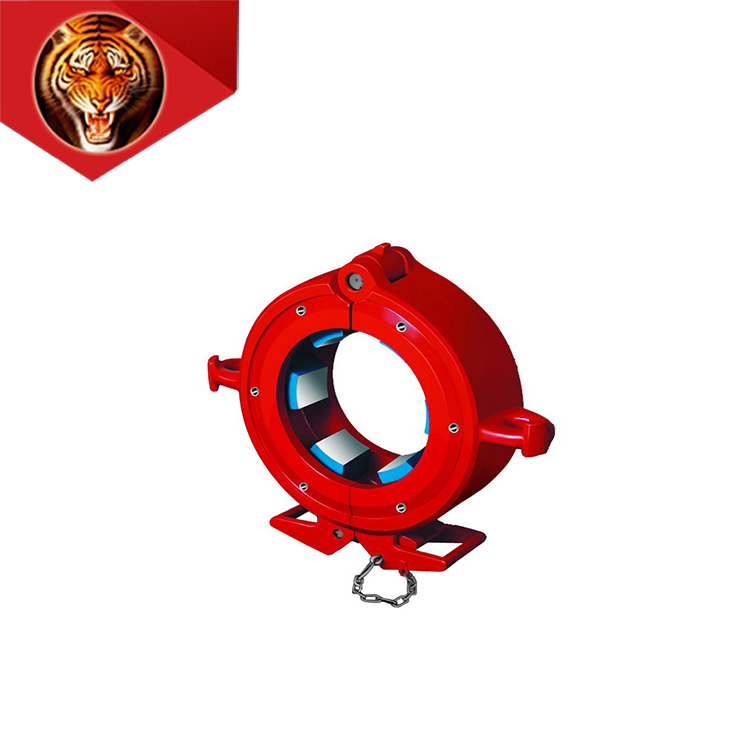

Tigerrig wholesale fashion SP series SP50 SP120 SP180 elevator use for handing single tubing casing and drill pipe with taper shoulder
Production Description:
CDZ side-opening elevator is suitable for lifting 18-degree taper shoulder drill pipe and measuring tools. Elevators are designed and manufactured according to API.Production Description.
Specifications
Model
Applicable pipe diameter（in）
Maximum load
SPS°
2 7/8-5 1/2
5tons
6 5/8-7 5/8
8 5/8-9 7/8
10 3/4
SP12°
2 3/8- 3 1/2
4- 4 1/2
SP18°
2 3/6-3 1/2
4-5
5 1/2 -6 5/8
