Tigerrig advanced design Type E penumatic spider use for drill pipe and tubing from 2 3/8" to 7 5/8" in oil well repairing

< >

Features
Specification

Tigerrig advanced design Type E penumatic spider use for drill pipe and tubing from 2 3/8" to 7 5/8" in oil well repairing

Production Description:

Pneumatic chucks are mainly used for the holding of tubing, drill pipe, casing and other pipe columns in oil field drilling and workover operations. The special section of the valve design allows the electric submersible pump cable to pass through the tubing string at the same time. The product is designed and manufactured according to API Spec 7K specifications.

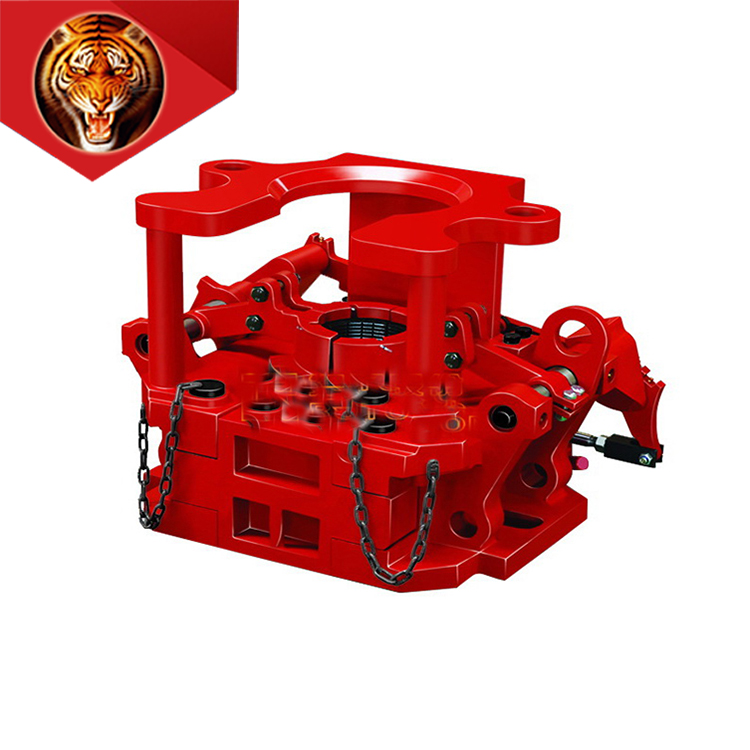

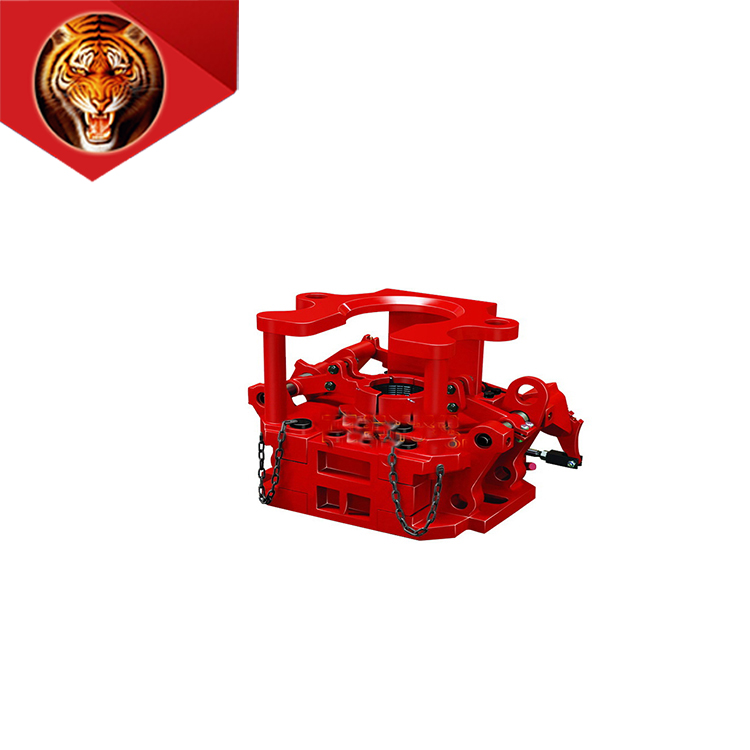

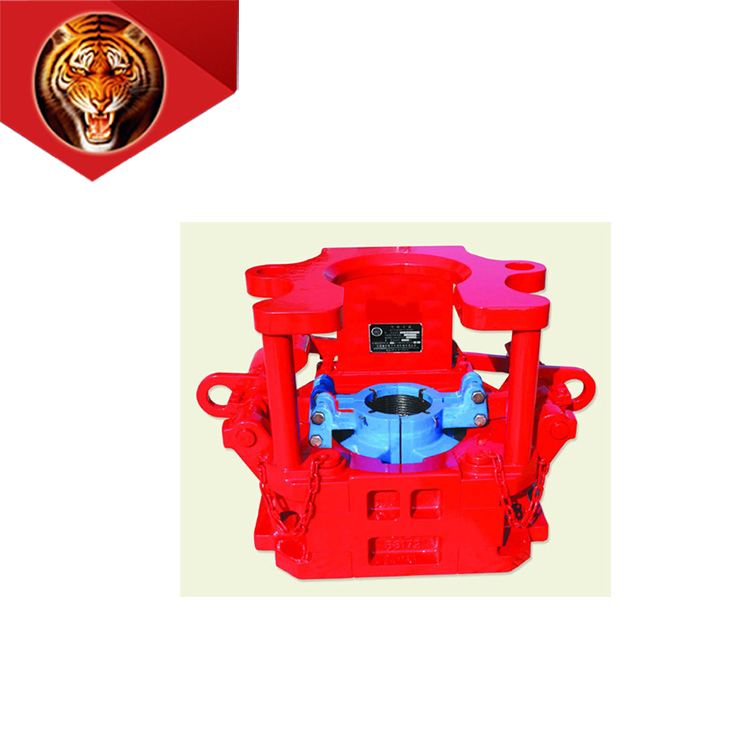

Tigerrig type E pneumatic spider (1).jpg

Tigerrig type E pneumatic spider (2).jpg

Tigerrig type E pneumatic spider (3).jpg

Tigerrig type E pneumatic spider (4).jpg








Specifications

Model	Card holding diameter（in）	Kava body	Maximum load
C	1.315～3.1/2	3.1/2	80 us tons
	3.1/2～4.1/2	4.1/2
	4.3/4	4.3/4（Toothless plate）
	5	5（Toothless plate）
	5.1/2	5.1/2（Toothless plate）
CHD	1.315～3.1/2	3.1/2	120us tons
	3.1/2～4.1/2	4.1/2
	4.3/4	4.3/4（Toothless plate）
	5	5（Toothless plate）
	5.1/2	5.1/2（Toothless plate）
HD	1.315～3.1/2	3.1/2	125us tons
	3.1/2～4.1/2	4.1/2
	4.3/4	4.3/4（Toothless plate）
	5	5（Toothless plate）
	5.1/2	5.1/2（Toothless plate）
E	2.3/8～3.1/2	3.1/2	175 us tons
	4～5.1/2	5.1/2
	5.1/2～7	7
	7.5/8	7.5/8（Toothless plate）
