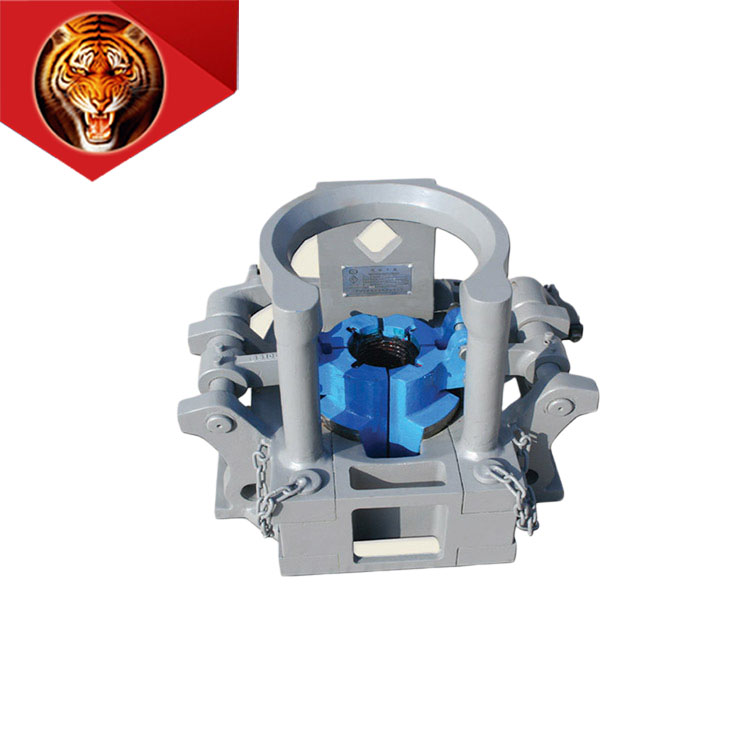

Tigerrig factory price 2 1/16" to 5 1/2" C/CHD drill pipe and tubing pneumatic spider for oil well repairing
Production Description:
Pneumatic chucks are mainly used for the holding of tubing, drill pipe, casing and other pipe columns in oil field drilling and workover operations. The special section of the valve design allows the electric submersible pump cable to pass through the tubing string at the same time. The product is designed and manufacturd according to API Spec 7K specifications.
Specifications
Slip Body Size
Model
Working Pressure
C/80T
CHD/120T
mm
in
MPa
psi
2 1/16
33.4
1.315
0.6-0.9
87-130
42.2
1.66
48.3
1.9
52.4
3 1/2
60.3
2 3/8
73
2 7/8
88.9
4 1/2
101.6
4
114.3
5
127
5 1/2
139.7
