Tigerig high quality custom SE350 350T elevator spider slip size from 5 1/2“-20"

< >

Features
Specification

Tigerrig high quality custom SE350 350T elevator spider slip size from 5 1/2“-20"

Production Description:

The SE350 type elevator/chuck is mainly used for casing operation in oil and gas drilling operations. Elevators and chucks should be used together, and the products are designed and manufactured according to API Spec 8C/8A "Drilling and Production Lifting Equipment Specifications". The elevator/chuck is pneumatically operated, which effectively reduces the labor intensity of the worker, improves the quality of the casing, and improves safety and work efficiency.

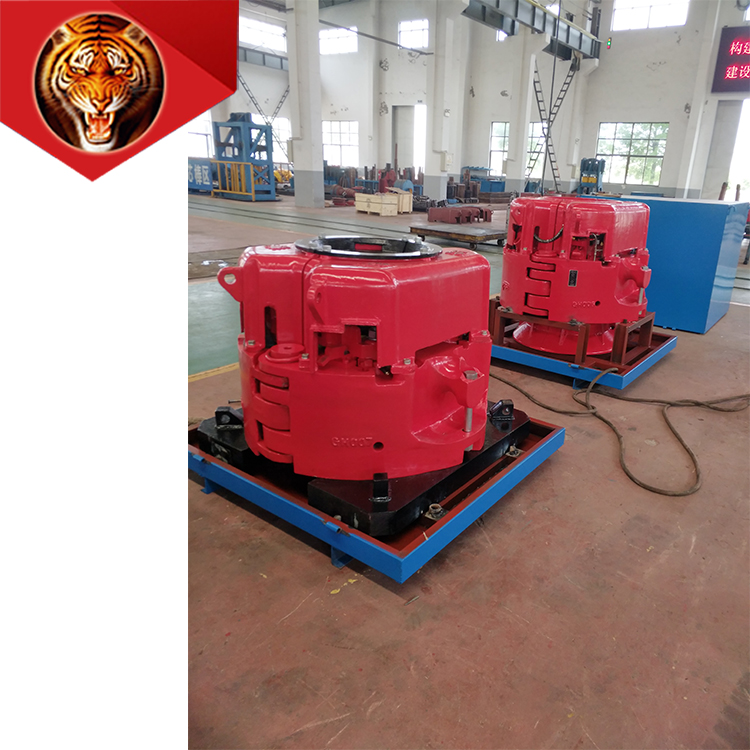

Tigerrrig SE350 elevator card tray (1).jpg

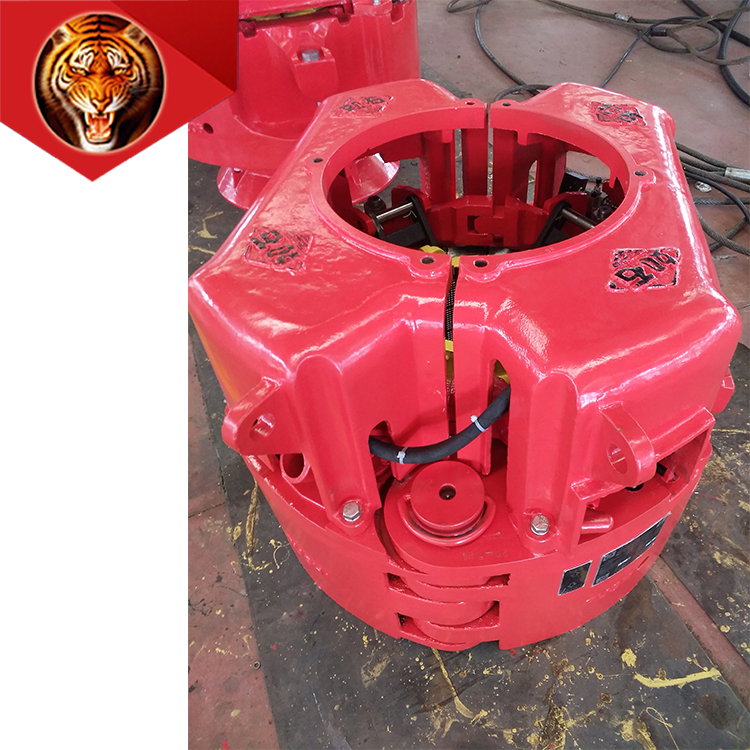

Tigerrrig SE350 elevator card tray (2).jpg

Tigerrrig SE350 elevator card tray (3).jpg








Specifications

Model	size		Rated load	Fixed work stress
Model	Kava body	Pipe diameter	Rated load	Fixed work stress
SE 350	5¹/₂	4¹/₂	350tons(3114kN)	0.6~0.8MP
		5
		5¹/₂
		5³/₄
	7⁵/₈	6⁵/₈
		7
		7⁵/₈
		7³/₄
	9⁵/₈	8⁵/₈
		8³/₄
		9⁵/₈
		9³/₄
		9⁷/₈
	11³/₄	10³/₄
		10⁷/₈
		11³/₄
		11⁷/₈
	14	13³/₈
		13¹/₂
		13⁵/₈
		13³/₄
		14
	16	16
	18⁵/₈	18⁵/₈
	20	20
