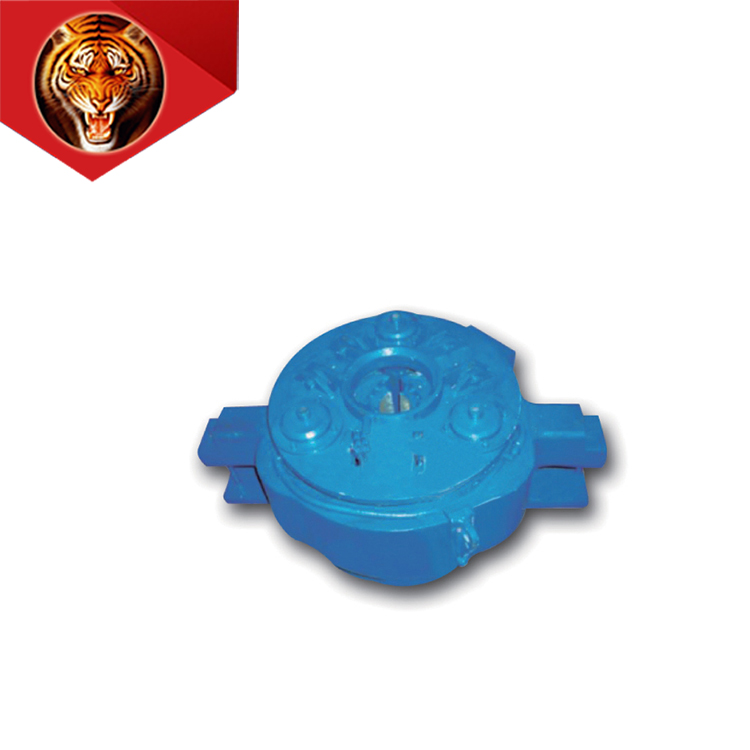

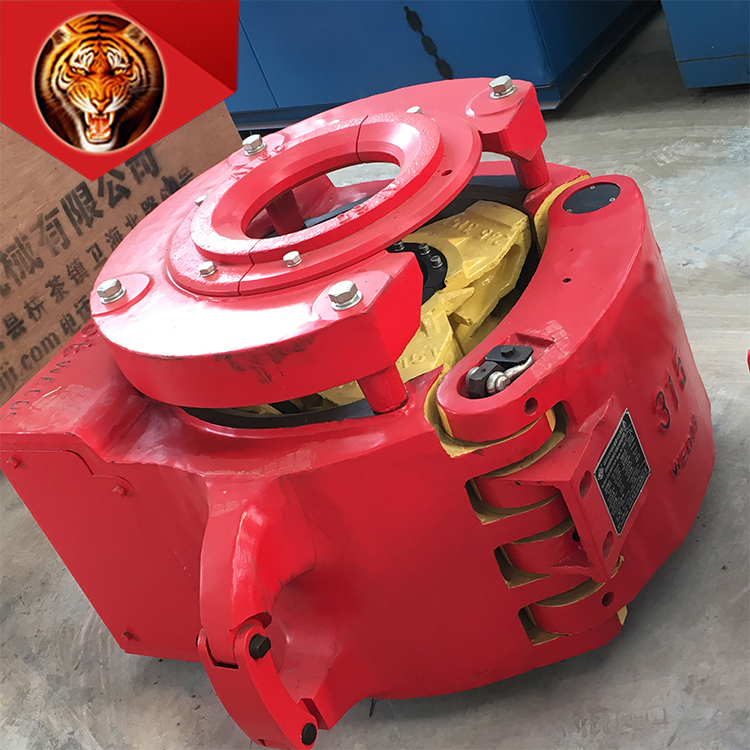

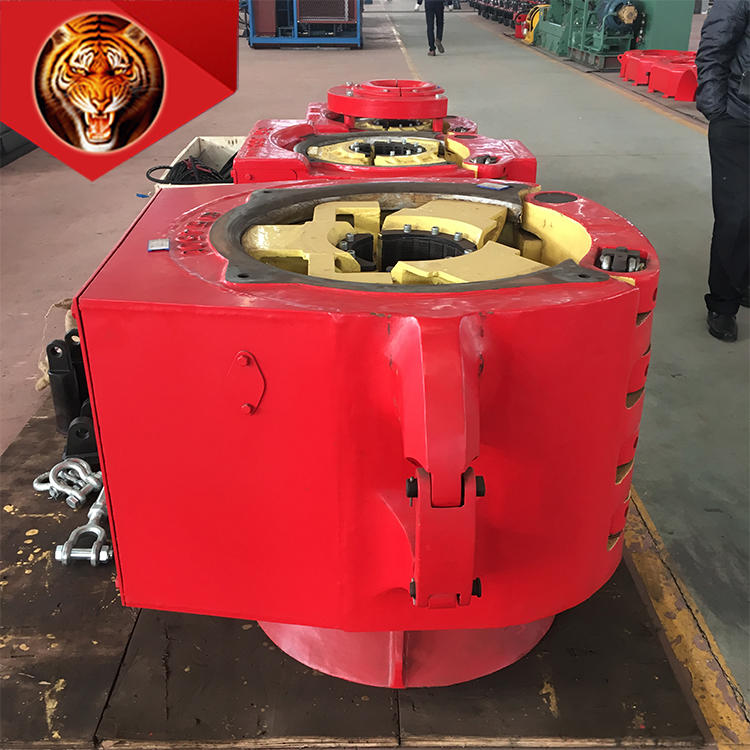

Tigerrig professional custom SE150 150T elevator spider for slip size from 3 1/2" to 5 1/2"
Production Description:
SE150 type elevator/chuck is mainly used for holding drill pipe, oil pipe and other pipe columns in oil and gas workover operations. Elevators and chucks should be used together, and the products are designed and manufactured according to API Spec 8C "Drilling and Production Lifting Equipment Specifications". The elevator/chuck is a pneumatic operating system, which effectively reduces the labor intensity of workers and improves safety and work efficiency.
Specifications
Model
Card holding diameter（in）
Maximum load
Fixed work stress
Kava body
Pipe diameter
SE150
3.1/2
2.3/8
150tons (1334kN)
0.6～0.8mpa
2.7/8
5.1/2
4
4.1/2
5
