Tigerrig good package YXM-2/5/13 hydraulic rotary cathead for drilling equipment

< >
  • Features
  • Specification

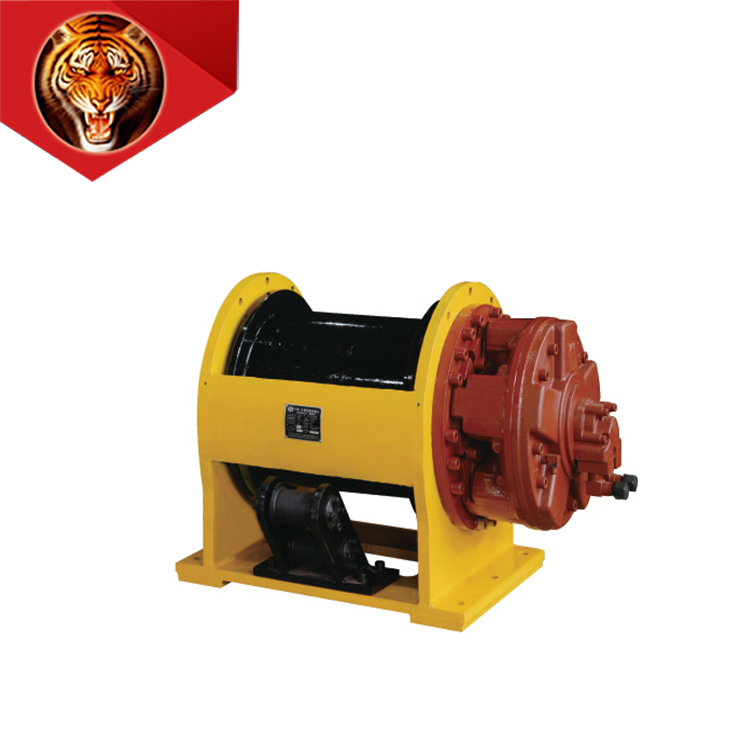

Tigerrig good package YXM-2/5/13 hydraulic rotary cathead for drilling equipment


Production Description:


This hydraulic rotating cat head is widely used in oil and gas mine drilling sites, loose (tight) swirling work in workovers, and can also be used for heavy cargo consignment in mines, coal mines and special working conditions such as inflammable and explosive gas. The lifting effect, the production, the product uses hydraulic drive and hydraulic brake, the industry's first. It has the characteristics of large starting torque, stable operation, low noise, safety and reliability. It is designed and manufactured according to API Spec 7K Drilling Equipment Specification.



Specifications

Model

YXM-2

YXM-5

YXM-13

YXM-10/3

YXML-18/3

Secondary roller

Main roller

Main roller

Secondary roller

Hydraulic system rated flow

L/min

40

120

120

120

120

gpm

10.6

31.7

31.7

31.7

31.7

Hydraulic system rated pressure

Mpa

16.6


16.6


216.60

Psi

2400

2400

2400

2400

2900

Rated traction

KN

20

50

130

30

100

180

30

US ton

2.2

5.5

14.3

3.3

11

19.8

3.3

Average rope speed

m/min

30

42

14

65

15

10.8

54

Ft/min

98

137

46

212

49

35

176

Wire rope diameter

mm

10

18

24

25.4

24

25

25

In

3/8

23/32

15/16

1

15/16

1

1

Capacity

M

15

50

40

50

40

20

12

Ft

49

164

131

164

131

65.5

39

size

Mm

580*400*430

878*560*23.5

1120*730*750

1072*580*618

1780*1280*1220

in

23*16*17

34.5*22*23.5

44*29*29.5

42*23*24

70*50*48

weight

Kg

160

280

400

800

2484

lb

353

617

882

1764

5477
