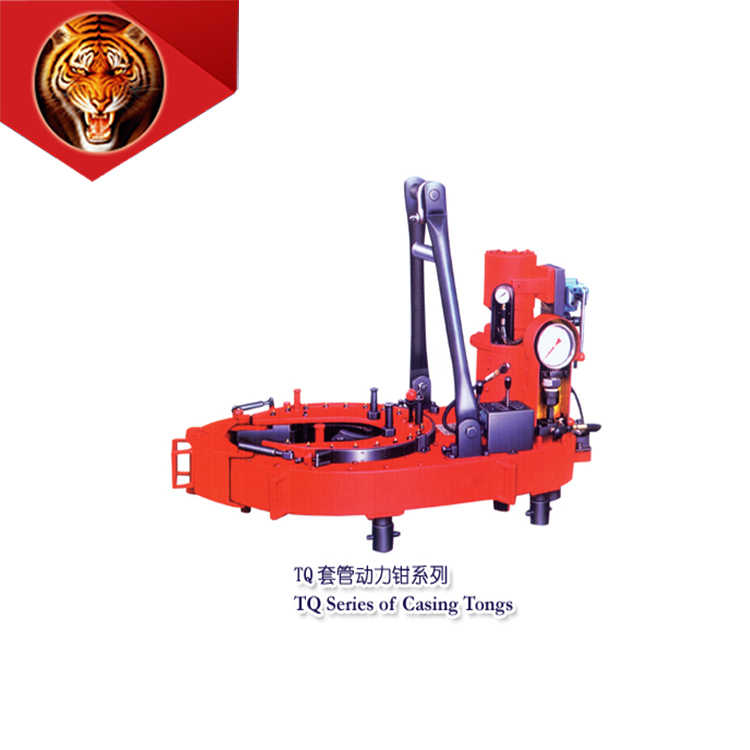

Tigerrig high quality large size range from 2 7/8" - 9 5/8" TQ casing power tong used for wellhead drilling tools
Production Description:
TQ 340 Series ZQ203-125 Casing pipe /Drilling pipe Hydraulic Power Tong.
Specifications
Model
TQ178-16
TQ178-16Y
TQ340-35
TQ340-35Y
TQ356-55
TQ508-70Y
Applicable pipe diameter
Mm
101.6-178
114.3-340
244.5-508
In
4-7
4 1/2-13 3/8
4 1/2-14
9 5/8-20
Hydraulic system rated working pressure
Mpa
18
21
16.6
20
Psi
2610
3045
2407
2900
Hydraulic system rated flow
L/min
110-160
110-170
Gpm
29.3-42.7
29.3-45.4
working pressure
0.5-0.9
72-130
Maximum torque
High grade
KN.m
2.4-3
2.5-3
4.0-5.6
3.4-4.5
8.4-10.7
Ft.lbf
1770-2210
1844-2210
2950-4130
25055-3320
6190-7890
Mid-range
Kn.m
6.0-7.5
4425-5530
Low gear
14.5-17.5
15-18
32-40
26-35.2
45-57.4
48.9-70.5
10694-12900
11060-13270
23600-29500
19175-25960
33185-42400
37244-52000
Clamp head speed
Rpm
54-79
68-86
57-95
52-76
26-43.6
21-30
9-13.1
9-13
3.6-5.3
9-15
3.9-5.6
4-6.6
weight
Kg/in
58/1280
560/1230
780/1720
760/1720
850/1870
1550/3410
size
in
1450*760*740（57*30*29.1）
1500*760*780（59*30*30.7）
1580*900*880（62.2*35.4*34.6）
1580*900*860（62.2*35.4*33.9）
1590*950*900962.6*35.4*35.4)
2080*1280*760(82*50.4*30
