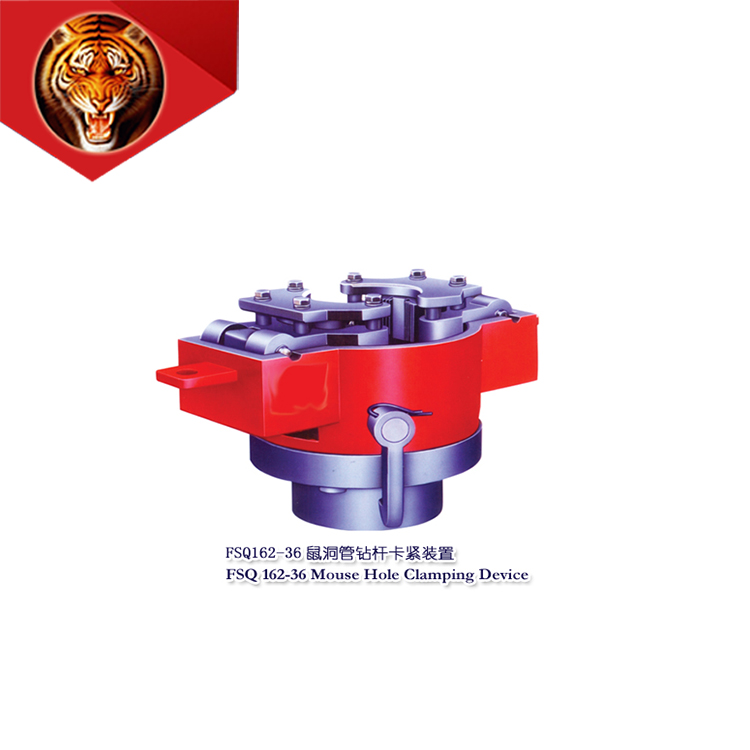

Tigerrig best quality FSQ162-36 mouse hole clamping device for wellhead tools
Production Description:
The device is a special tool for clamping the mouse hole when drilling and unloading the drill pipe. The main feature of the device is that the clamping force is automatically adjusted, such as with the kelly spinner, without pulling the wire, the order can be received. The mechanization of the root operation not only reduces physical labor but also avoids accidents. Lift, design, and manufacture according to Spec 7K Drilling and Production Hoisting Equipment Specifications.
Specifications
Model
FSQ 162-36
Drill pipe diameter
mm
Φ164 (4 1/2 coupling)
Φ162 (5 coupling)
Rated torque
KN.m
36
Ft.lbf
2655
size
Mm
171
In
6 3/4
Shape size
700*385*348
28*15*14
weight
Kg
240
lb
530
