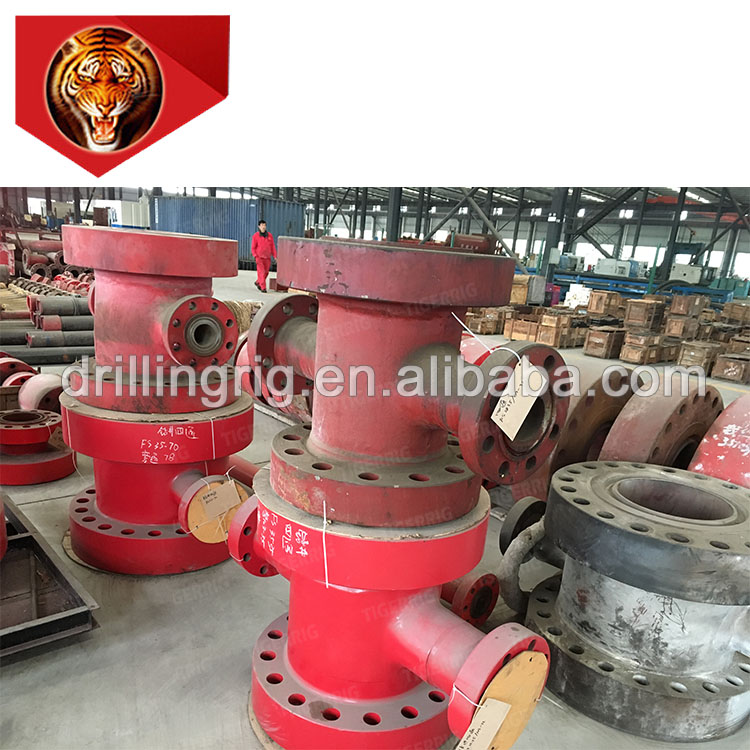

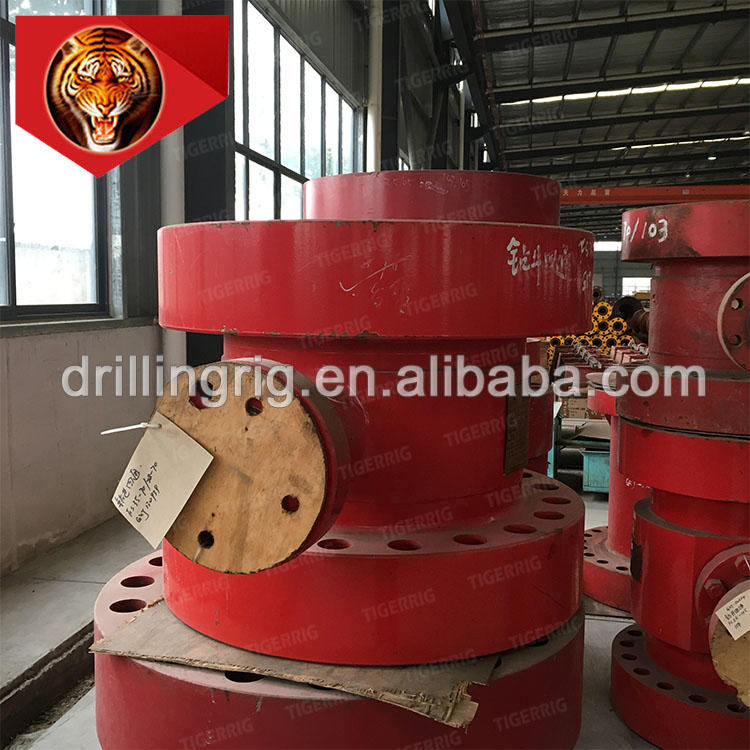

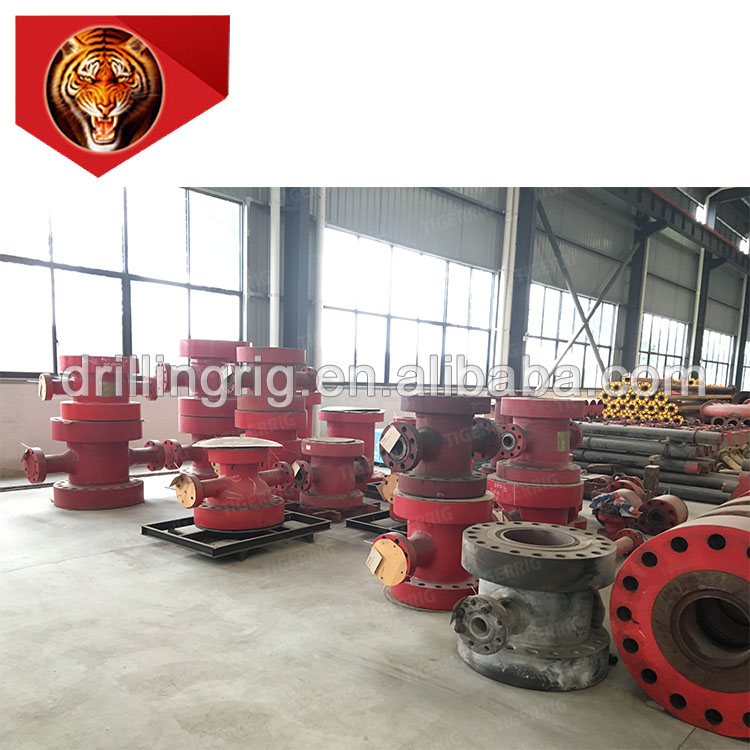

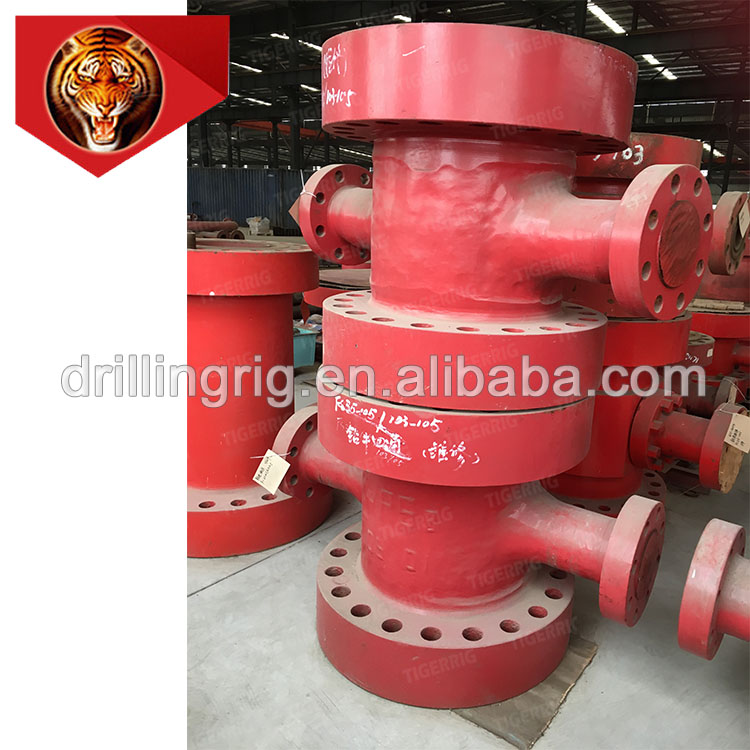

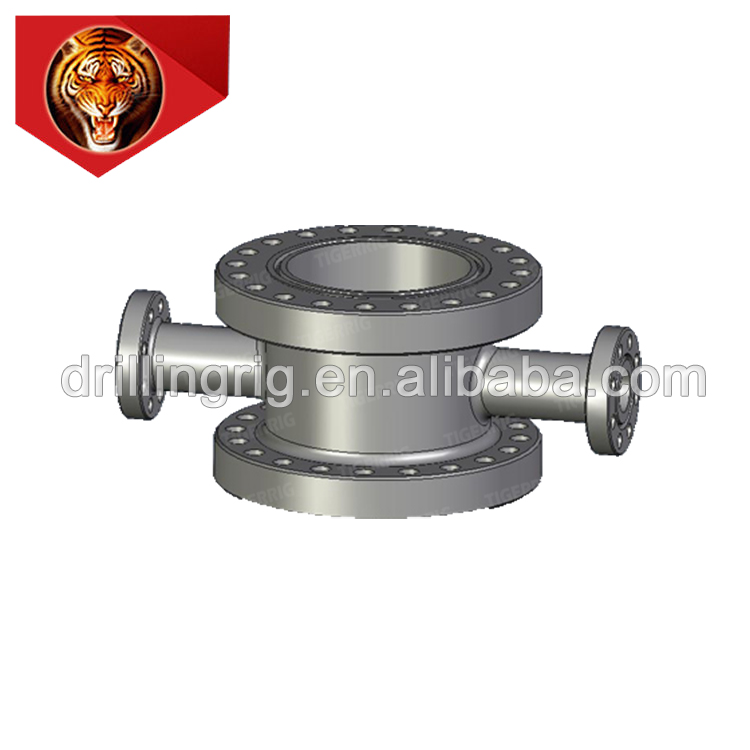

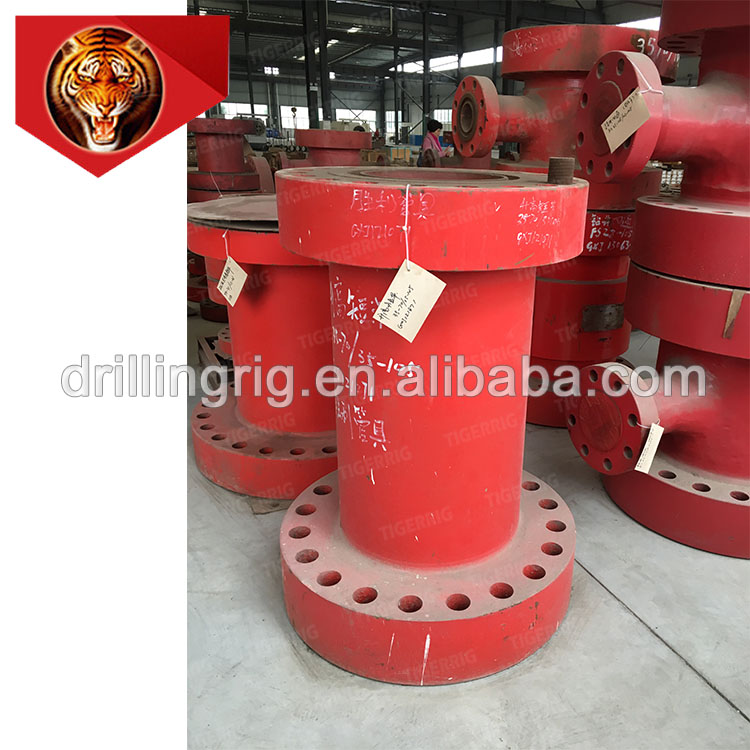

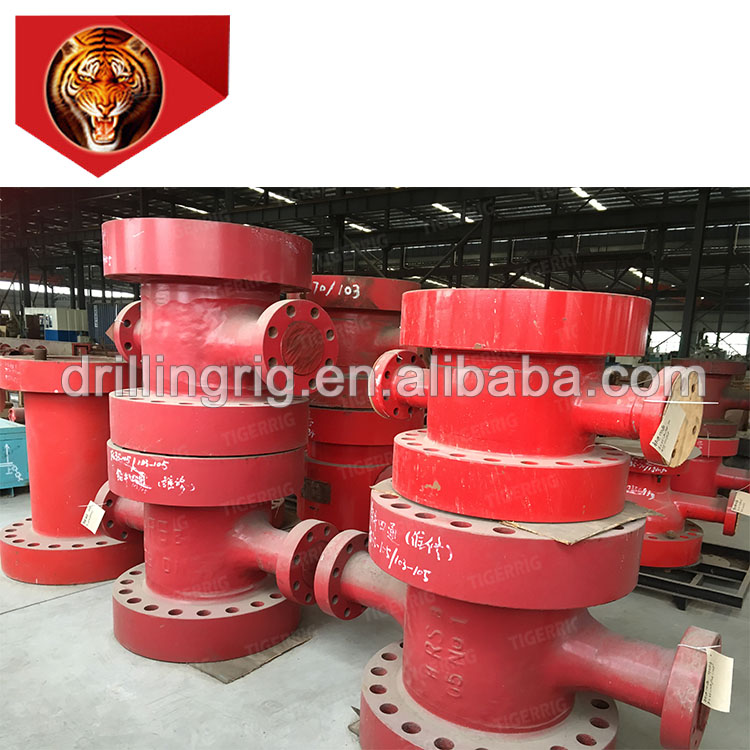

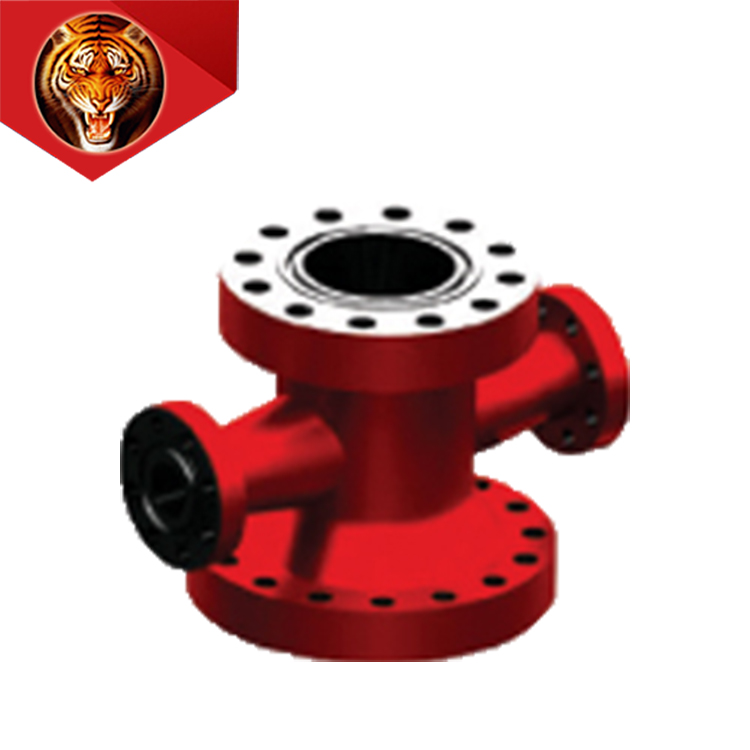

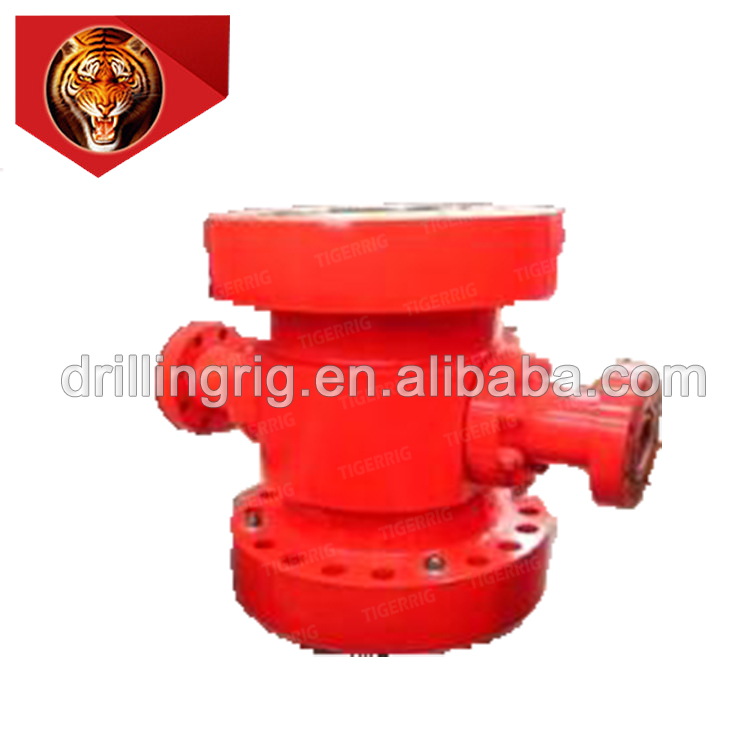

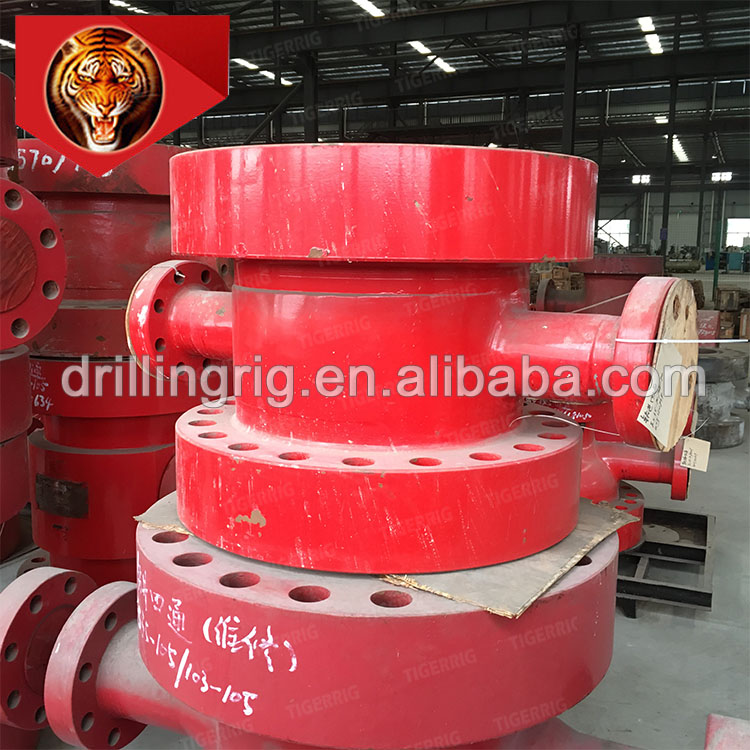

API 6A oilfield riser flange spacer adapter spool casing tubing spool drilling spool
Features:
1) Made from high-strength alloy and processed specially with heating treatment.
2) Designed and manufactured with reference to API 16A technical specifications.
3) Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR-0175 technical specifications.
4) Top & bottom connections and outlets as per customer design requirements by either flanged or clamp connections.
5) All steel tanks are welded with stainless steel for long-term anti-corrosion.
6) Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.
Specifications
Description
H (mm)
H1 (mm)
L (mm)
7 1/16" X 5M To 7 1/16" X 5M With side outlet 3 1/8" X 5M To 3 1/8" X 5M
660
330
408
11" X 15M To 11" X 15M With side outlet 3 1/16" X 15M To 3 1/16" X 15M
1100
550
450
13 5/8" X 5M To 13 5/8" X 5M With side outlet 2 1/16" X 5M To 2 1/16" X 5M
1524
305
565
13 5/8" X 5M To 13 5/8" X 5M With side outlet 3 1/8" X 5M To 3 1/8" X 5M
700
350
468
13 5/8" X 5M To 13 5/8" X 5M With side outlet 4 1/16" X 5M To 4 1/16" X 5M
484
13 5/8" X 10M To 13 5/8" X 10M With side outlet 4 1/16" X 10M To 4 1/16" X 10M
980
490
20 3/4" X 3M To 20 3/4” X 3M With side outlet 4 1/16" X 5M To 2 1/16" X 5M
636
318
20 3/4" X 3M To 21 1/4" X 2M With side outlet 3 1/16" X 10M To 3 1/16" X 10M
2500
800
590
21 1/4" X 2M To 21 1/4" X 2M With side outlet 4 1/16" X 5M To 4 1/16" X 5M
575
21 1/4" X 2M To 20 3/4" X 3M With side outlet 4 1/16" X 10M To 4 1/16" X 10M
750
375
582
