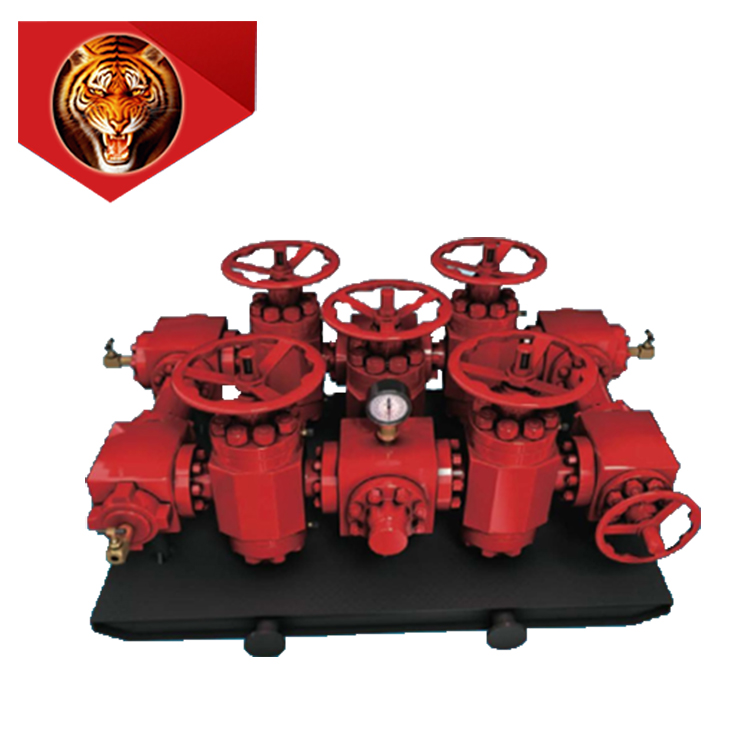

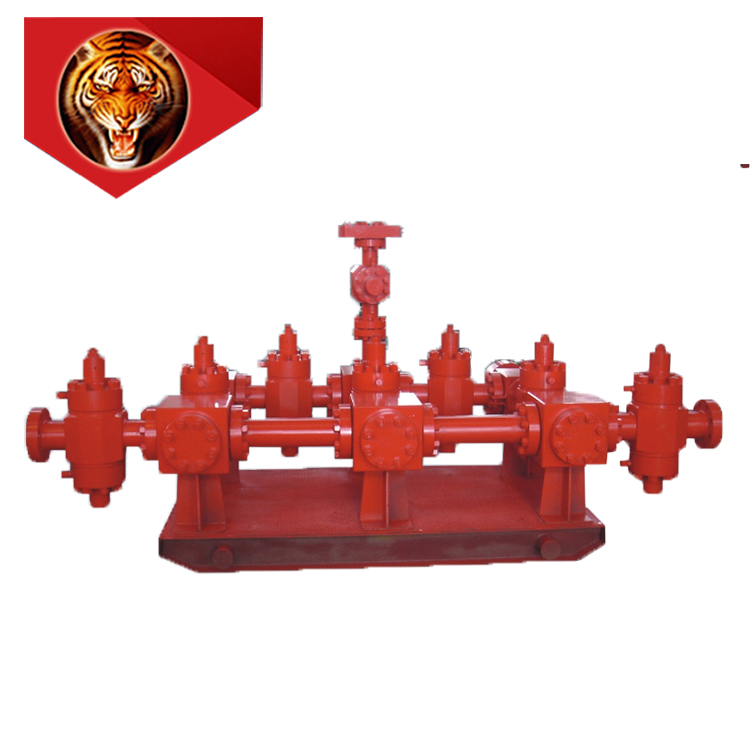

Tigerrig high quality choke manifold for maintain pressure balance in the well
Production Description：
Choke manifold in the process of oil and gas production well logging through the mouth of the well pipe connected to the choke manifold, through the fixed size of nozzle, the throttling pipe is measured fluid pressure, temperature, calculate the yield and productivity of oil and gas, and thereby, to complete the test and operation, it is also necessary equipment for well logging operations. Manifold connected by flange, using parallel slide valves, suitable for many kind of fluid environment for a long time operation, manifold service life is long, safe and reliable.
Specifications
Specifications and models
Work stress
Throttling way
SMG06-42-3
42MPa
3”FIG602
SMG06-70-3
70 MPa
3"FIG1002
SMG06-105-4
105 MPa
4”FIG1502
SMG06-35-80
35MPa
31/8-5000psiAPl
SMG06-70-78
31/16-10000psiAPl
SMG06-105-78
31/16°-15000 DSi APl
SMG06-35-103
41/16"-5000psiAPl
SMGO6-70-103
7O MPa
41/16”-10000psiAPI
SMGo6-105-103
41/16”-15000psiAP|
