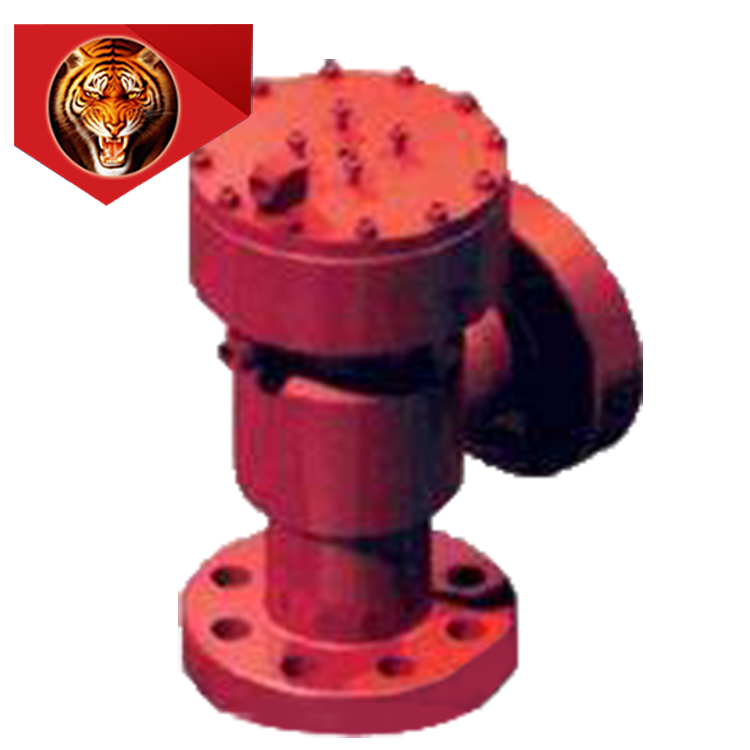

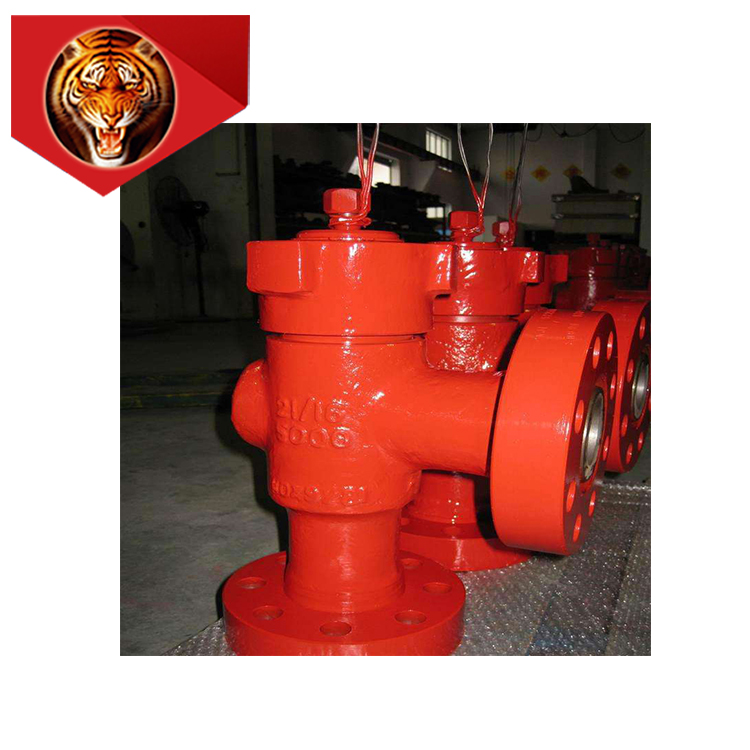

Tigerrig customized hydraulic JLG fixed throttle valve
Product Description：

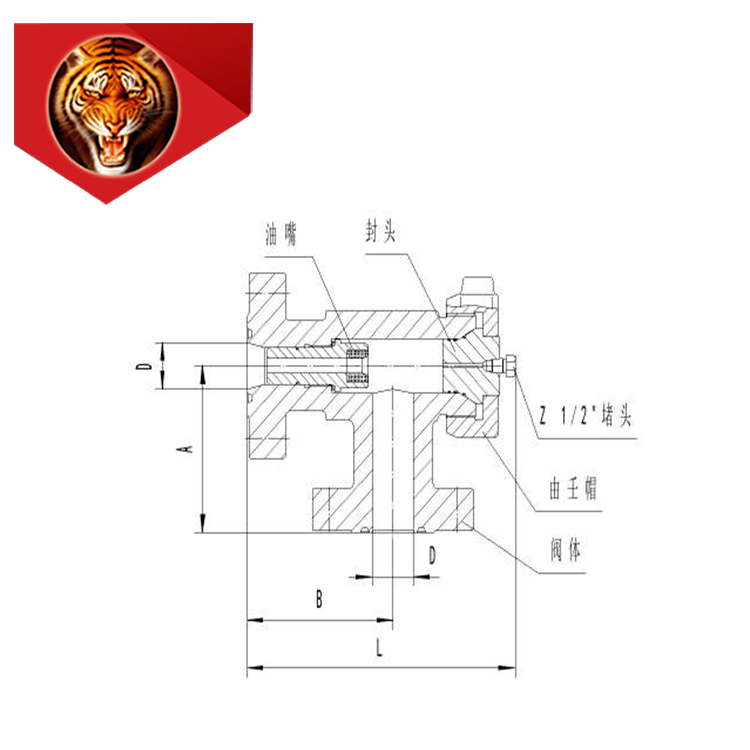

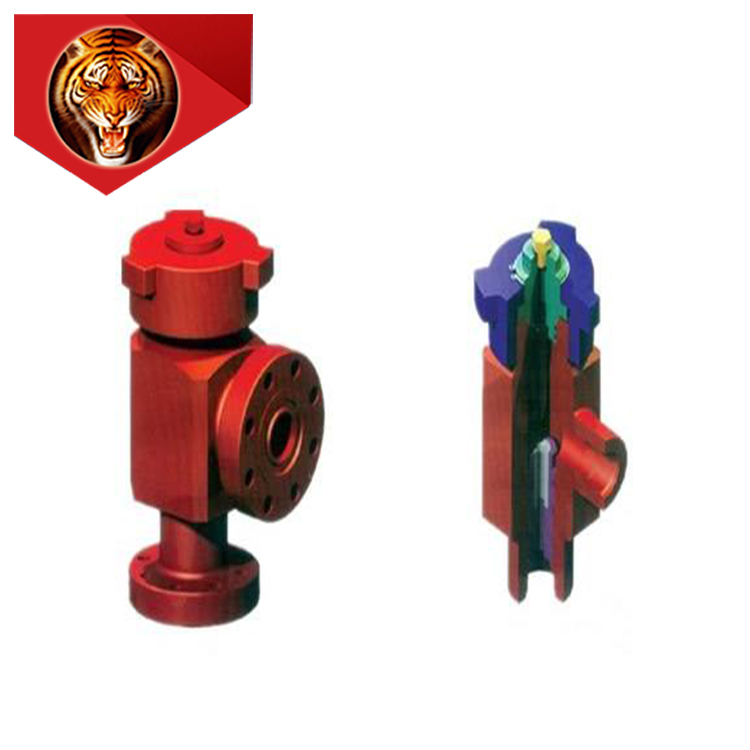

The oil nozzle is made of corrosion-resistant material (or hard alloy), which can resist high-pressure and high-speed fluid erosion; the connection between the oil nozzle assembly and the valve body is in the form of a screw connection, and is equipped with a dedicated tool to facilitate the removal and assembly of the oil nozzle; the head and the valve body The connection is made of union, the structure is simple, and the disassembly is convenient. By replacing the oil nozzles of different specifications, the flow diameter of the throttle is changed to achieve the purpose of regulating the fluid flow.
Specifications
Specifications and Models
The main size
working pressure
mounting dimension
Flange Connections
A
B
mm
in
MPa
psi
JLG21/16-14
52.4
21/16
14
2000
200
77/8
6B21/16-14 R23
JLG21/16-21
21
3000
6B21/16-21 R24
JLG21/16-35
35
5000
6B21/16-35 R24
JLG21/16-70
70
10000
230
9
6B*21/16-70 B*152
JLG21/16-105
105
15000
6B*21/16-105 B*152
JLG29/16-14
65
29/16
6B29/16-14 R26
JLG29/16-21
6B29/16-21 R27
JLG29/16-35(B*153)
6B29/16-35 B*153
JLG29/16-35
6B29/16-35 R27
JLG29/16-70
6B*29/16-70 B*153
JLG29/16-105
6B*29/16-105 B*153
JLG31/8-35
80
31/8
6B*31/8-35 R35
JLG31/16-70
78
31/16
6B*31/16-70 B*154
JLG31/16-105
6B*21/16-105 B*154
