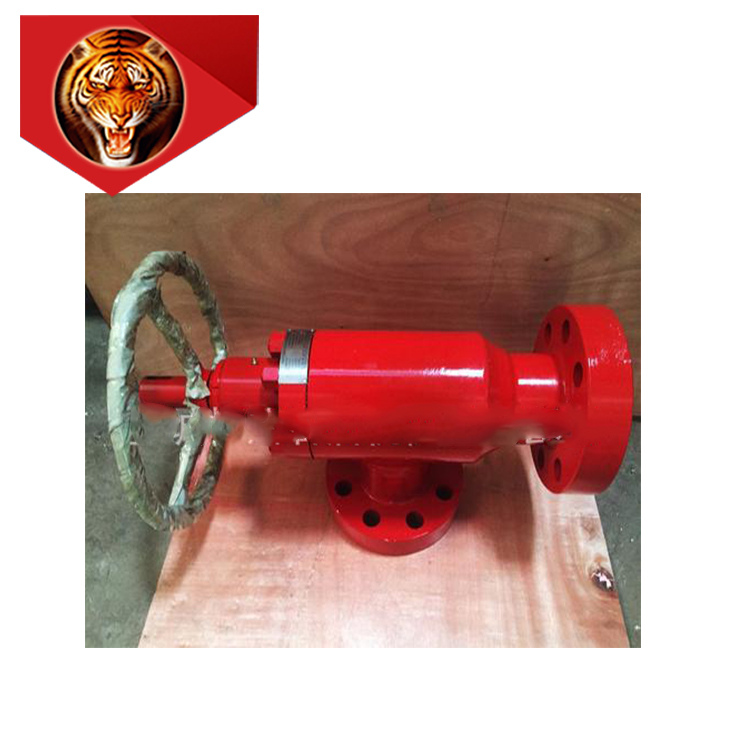

Tigerrig china factory parts JLKT manual cylinder throttle valve
Product Description：
The cylinder valve plate and valve seat are made of hard alloy material, which can resist high pressure and high-speed fluid erosion.The gap between the annular surface of the cylindrical valve plate and the valve seat is manually adjusted to achieve flow adjustment.
Specifications
Specifications and Models
The main size
Section flow path
working pressure
mounting dimension
Flange Connections
A
B
entry end
exit end
mm
in
MPa
psi
JLKT21/16-21
65
21/16
50
2
21
3000
120
43/4
200
77/8
6B21/16-21 R24
6B21/16-14 R23
JLKT21/16-35
35
5000
6B21/16-35 R24
JLKT21/16-70
70
10000
6B*21/16-7O B*152
JLKT21/16-105
105
15000
6B*21/16-105 B*152
6B*21/16-70 B*152
JLKT29/16-21
29/16
6B29/16-21 R27
6B29/16-14 R26
JLKT29/16-35
6B29/16-35 R27
JLKT29/16-35(B*153)
6B29/16-35 B*153
6B29/16-21 B*153
JLKT29/16-70
6B*29/16-70 B*153
JLKT29/16-105
130
51/8
6B*29/16-105 B*153
JLKT31/8-35
80
31/8
6B31/8-35 R35
JLKT31/16-70
78
31/16
6B*31/16-70 B*154
JLKT31/16-105
6B*31/16-105 B*154
