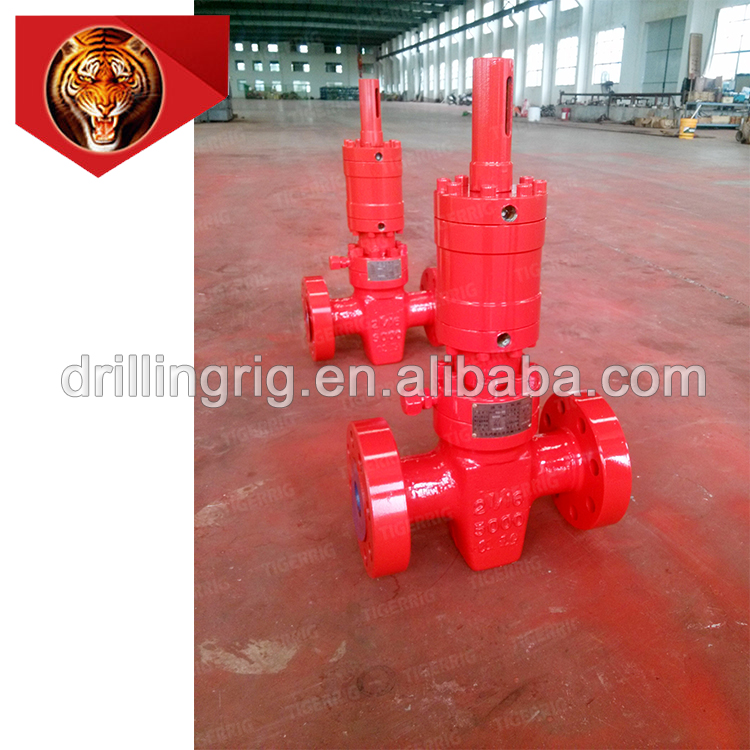

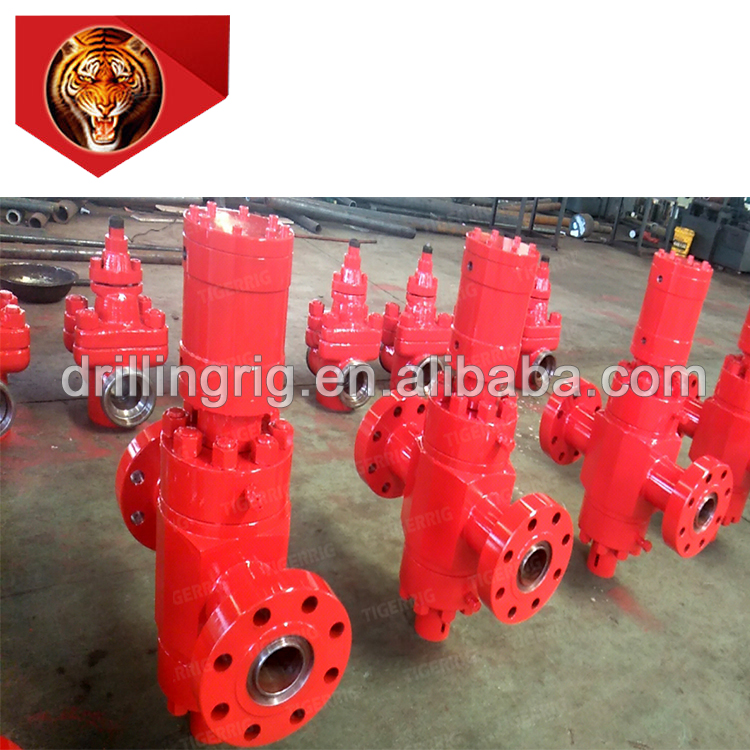

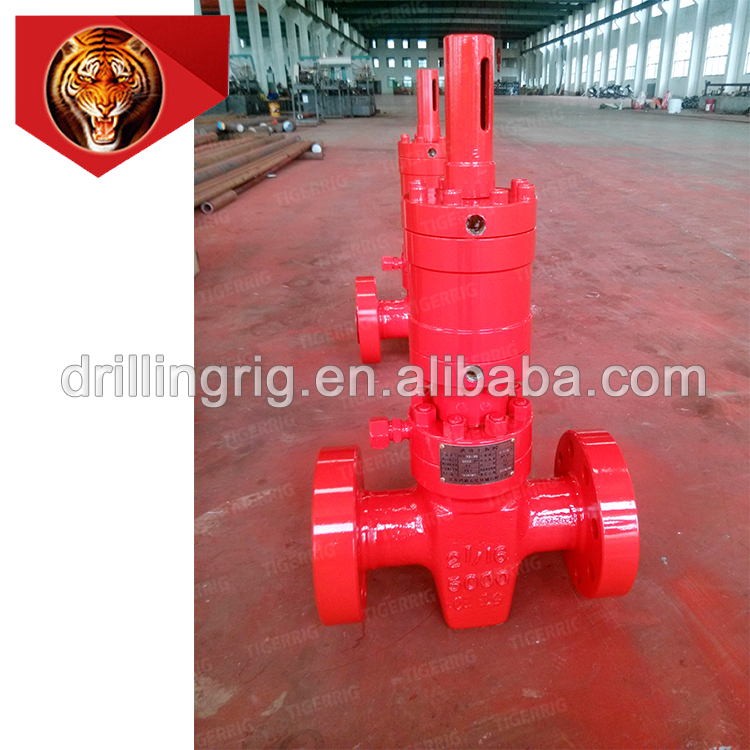

Tigerrig cast iron electric PFF flat gate valve,flange cast steel gate valve pn16,pn16 dn150 actuated gate valve

< >

Features
Specification

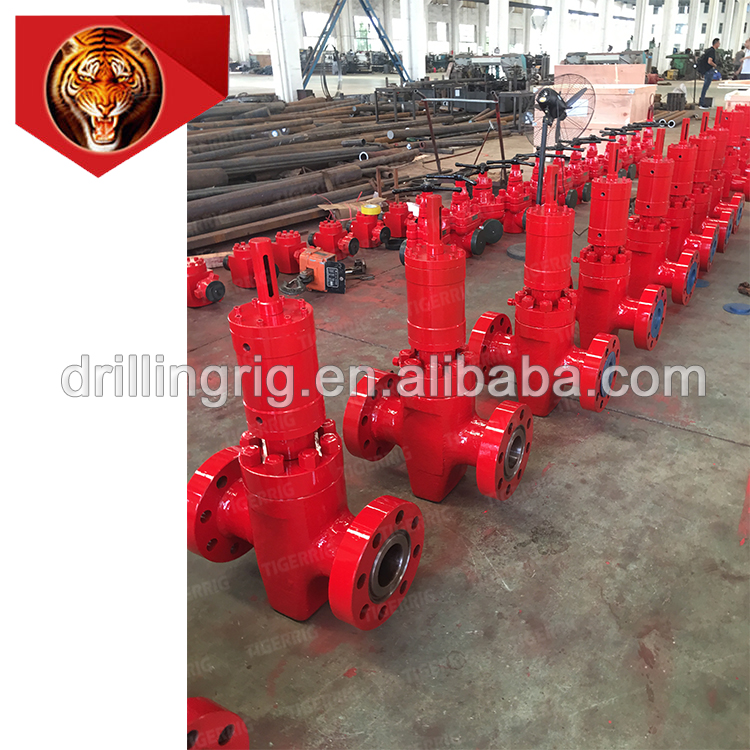

Tigerrig cast iron electric PFF flat gate valve,flange cast steel gate valve pn16,pn16 dn150 actuated gate valve

Production Description：

The temperature rating of the slab valve can be L, P, S, T, U in APISpec6A. According to the requirements, it can provide gate valves up to 350℃ or high temperature service. It can also provide fire-resistant gate valves according to APISpec6A level specifications.

Working pressure level: 2000-20000psi

Material grade: AA-FF

Specification level: PSL1-4

Performance level: PR1-2

Tigerrig Flat gate valve (2).jpg

Tigerrig Flat gate valve (1).jpg

Tigerrig Flat gate valve (3).jpg

Tigerrig Flat gate valve (4).jpg

Tigerrig Flat gate valve (5).jpg

Tigerrig Flat gate valve (6).jpg

Tigerrig Flat gate valve (7).jpg

Tigerrig Flat gate valve (8).jpg

Tigerrig Flat gate valve (9).jpg

Tigerrig Flat gate valve (10).jpg

Specifications

Model	PFF103-21	PFF52-35	PFF65-35	PFF103-35	PFF65-70	PFF78-70	PFF103-70	PFF65-105	PFF78-105	PFF103-105
Nominal diameter (DN)	103	52	65	103	65	78	103	65	78	103
Nominal pressure (MPA)	21	35	35	35	70	70	70	105	105	105
Connection length (A)	511	371	422	550	565	620	670	533	598	737
Flange outer diameter (D)	290	215	245	310	230	270	315	255	290	360
Handwheel diameter (C)	400	320	320	400	400	450	550	450	500	650
Pad ring number	R37	R24	R37	R39	BX153	BX154	BX155	BX153	BX154	BX155
Weight (kg)	210	48	105	284	154	231	382	250	336	550
